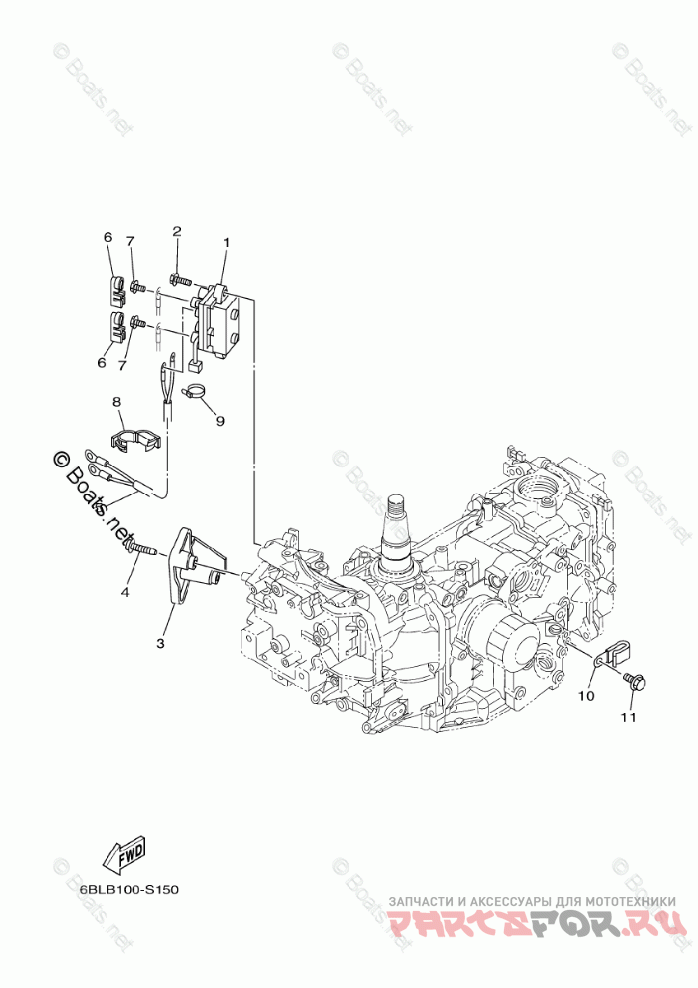

Electrical 4
Yamaha F25LA
| # | oem код | название | цена |
|---|---|---|---|
1 | 63P-81950-00-00 RELAY ASSY | RELAY ASSY | |
2 | 97575-06520-00 BOLT, WITH WASHER | BOLT, WITH WASHER | |
3 | 6BL-81942-00-00 COVER | COVER | |
4 | 90167-05009-00 SCREW, TAPPING | SCREW, TAPPING | |
5 | 6BL-81949-00-00 WIRE, LEAD | WIRE, LEAD | |
6 | 6P2-8183X-00-00 CAP, TERMINAL | CAP, TERMINAL | |
7 | 97595-06610-00 BOLT, WITH WASHER | BOLT, WITH WASHER | |
8 | 90464-18004-00 CLAMP | CLAMP | |
9 | 90465-11M10-00 CLAMP | CLAMP | |
10 | 90465-06M90-00 CLAMP | CLAMP | |
11 | 97595-06516-00 BOLT, WITH WASHER | BOLT, WITH WASHER |
