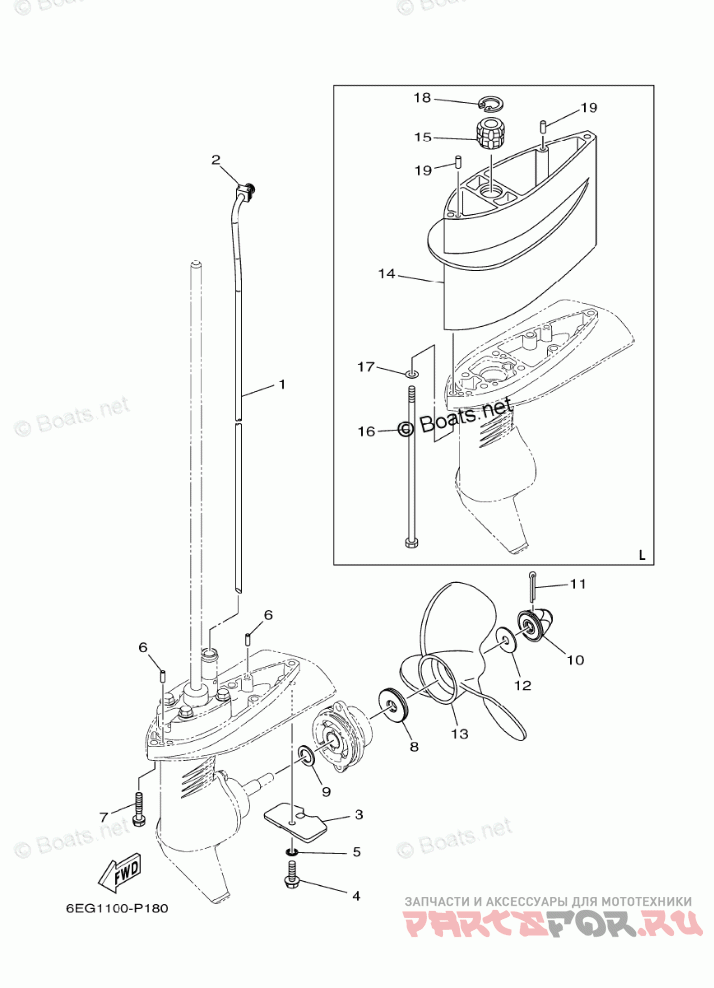

Lower Casing Drive 2

Yamaha F2.5LMHB

Yamaha
#oem кодцена
1
6EG-44361-10-00
TUBE, WATER 1 *{L(22.0")}*
2
6EE-G4365-00-00
DAMPER, WATER SEAL 1
3
6L5-45251-03-00
ANODE
4
95895-06012-00
BOLT, FLANGE
5
92990-06300-00
WASHER, INTERNAL TOOTH
6
93604-12M07-00
PIN, DOWEL
8
6EE-G5987-00-00
SPACER 1
9
90201-13198-00
WASHER, PLATE
10
6EE-G5616-00-00
NUT, PROPELLER
11
91490-25030-00
PIN. COTTER
12
90201-08M54-00
WASHER, PLATE
13
6L5-45943-00-00
PROPELLER (3X7-1/4"X6"-BS) *{UR}*
13
6L5-45949-00-00
PROPELLER (3X7-1/4"X5"-BS) *{UR}*
14
6EG-G5211-00-8D
EXTENSION *{L(22.0")}*
15
6L5-45318-00-00
BUSHING, DRIVE SHAFT *{L(22.0")}*
16
90101-06M18-00
BOLT *{L(22.0")}*
17
92990-06600-00
WASHER, PLATE *{L(22.0")}*
18
93420-22M03-00
CIRCLIP *{L(22.0")}*
19
93604-12M07-00
PIN, DOWEL *{L(22.0")}*
