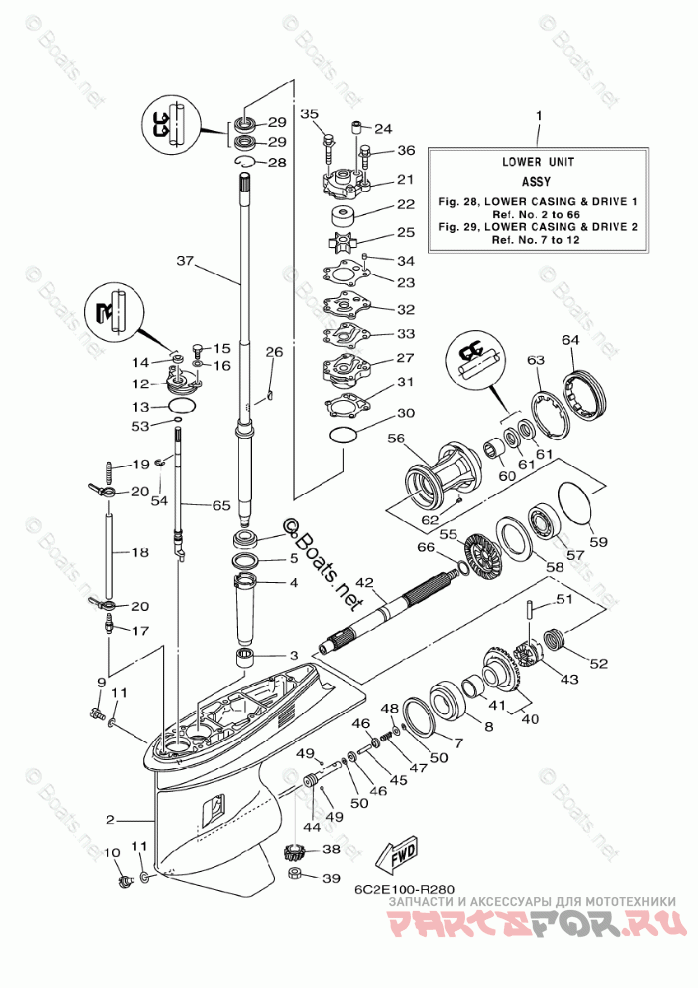

Lower Casing Drive 1

Yamaha T50LB

Yamaha
#oem кодцена
1
68S-45300-32-8D
LOWER UNIT ASSY
2
67F-45301-00-8D
CASING, LOWER
3
93315-52563-00
BEARING
4
688-45536-01-00
SLEEVE, DRIVE SHAFT
5
688-45587-60-00
SHIM (T:0.50MM)
5
688-45587-50-00
SHIM (T:0.40MM)
5
688-45587-40-00
SHIM (T:0.30MM)
5
688-45587-30-00
SHIM (T:0.18MM)
5
688-45587-20-00
SHIM (T:0.15MM)
5
688-45587-10-00
SHIM (T:0.12MM)
5
688-45587-01-00
SHIM (T:0.10MM)
6
93332-000U3-00
BEARING
7
688-45567-30-00
SHIM (T:0.18MM)
7
688-45567-60-00
SHIM (T:0.50MM)
7
688-45567-50-00
SHIM (T:0.40MM)
7
688-45567-40-00
SHIM (T:0.30MM)
7
688-45567-20-00
SHIM (T:0.15MM)
7
688-45567-10-00
SHIM (T:0.12MM)
7
688-45567-01-00
SHIM (T:0.10MM)
8
93332-00095-00
BEARING
9
90340-08002-00
PLUG, STRAIGHT SCREW
10
688-45341-10-00
PLUG, DRAIN
11
90430-08003-00
GASKET
12
688-45321-00-00
PLATE
13
93210-49046-00
O-RING
14
93106-09014-00
OIL SEAL
15
97095-06016-00
BOLT
16
92995-06600-00
WASHER
17
6E5-45378-00-00
NIPPLE, HOSE
18
90445-07ME8-00
HOSE (L80)
19
6E5-83558-10-00
END, NIPPLE
20
90465-11M10-00
CLAMP
21
6H3-44311-00-00
HOUSING, WATER PUMP
22
663-44322-00-00
INSERT, CARTRIDGE
23
6H3-44315-A0-00
GASKET, WATER PUMP
24
663-44366-00-00
DAMPER, WATER SEAL 2
25
6H3-44352-00-00
IMPELLER
26
90280-03M03-00
KEY, WOODRUFF
27
6H3-44341-01-CA
HOUSING, WATER PUMP
28
93450-40165-00
CIRCLIP
29
93101-23070-00
OIL SEAL
30
93210-46044-00
O-RING
31
688-44316-A0-00
GASKET, WATER PUMP
32
6H3-44323-00-00
OUTER PLATE, CARTRIDGE
33
6H3-44324-A0-00
GASKET, CARTRIDGE
34
93604-10M03-00
PIN, DOWEL
35
90119-08M33-00
BOLT, WITH WASHER
36
90119-08M14-00
BOLT, WITH WASHER
37
64J-45501-30-00
DRIVE SHAFT COMP.
38
6K5-45551-00-00
PINION (12T)
39
90170-16M01-00
NUT
40
68S-45560-00-00
GEAR 1 (28T)
41
93317-322V0-00
BEARING
42
67F-45611-01-00
SHAFT, PROPELLER
43
6D8-45631-00-00
CLUTCH, DOG
44
67F-45634-00-00
SLIDE, SHIFT
45
6H1-45668-00-00
SHAFT, FREE 1
46
6H1-45635-00-00
PLUNGER, SHIFT
47
90501-12M48-00
SPRING, COMPRESSION
48
90201-03313-00
WASHER, PLATE
49
93503-16003-00
BALL
50
90183-02M03-00
NUT, SPRING
51
90250-07M02-00
PIN, STRAIGHT
52
688-45633-00-00
RING, CROSS PIN
53
93210-07003-00
O-RING
54
99001-08600-00
CIRCLIP
55
68S-45571-00-00
GEAR 2 (28T)
56
67F-45331-00-CA
HOUSING, BEARING
57
93306-207U0-00
BEARING
58
67F-45576-00-00
WASHER, THRUST 2
59
93210-86M39-00
O-RING
60
93317-325U0-00
BEARING
61
93101-25M03-00
OIL SEAL
62
90282-04010-00
KEY, STRAIGHT
63
688-45383-02-00
WASHER, CLAW
64
688-45384-02-00
NUT
65
64J-44150-01-00
SHIFT CAM ASSY
66
90201-25M05-00
WASHER, PLATE
