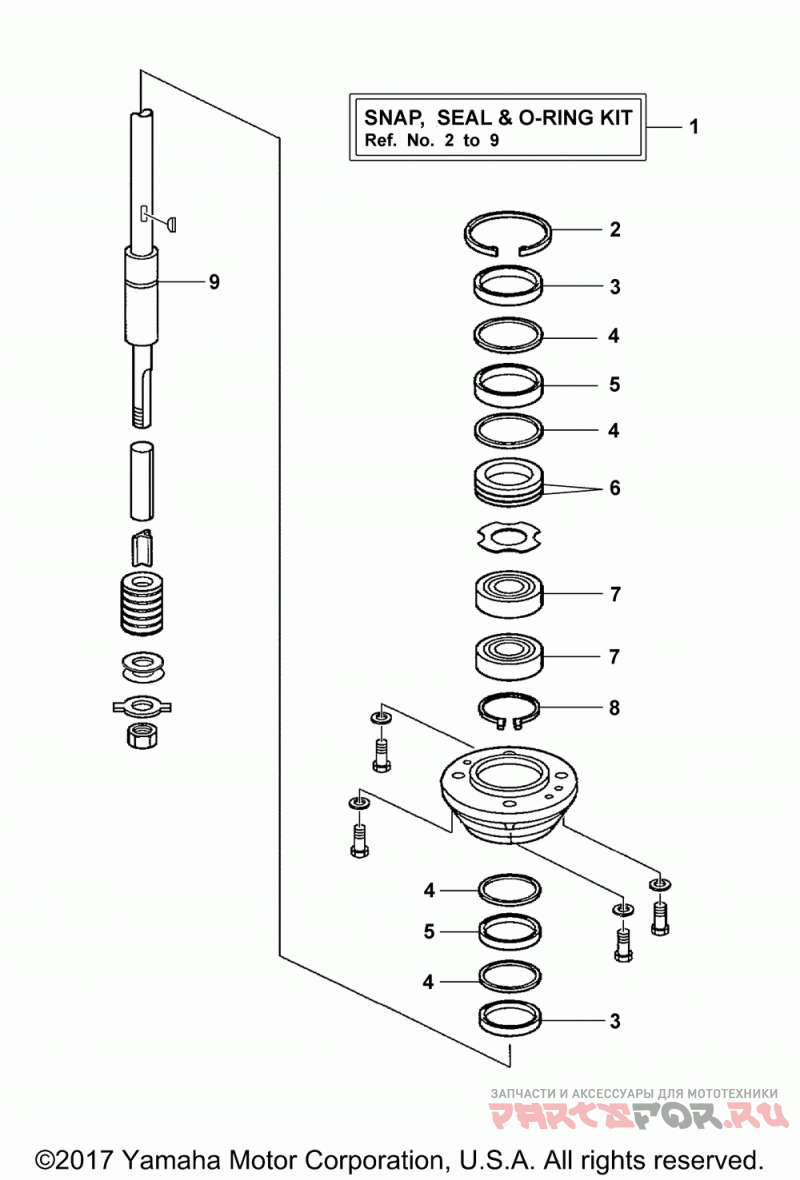

Repair kit f90
Yamaha F90TJR-PUM 2017
| # | oem код | название | цена |
|---|---|---|---|
1 | 67F-JD004-62-02 SNAP, SEAL & O-RING | SNAP, SEAL & O-RING | |
2 | 6H1-JD005-13-00 RETAINING RING TRU | RETAINING RING TRU | |
3 | 6H4-JD005-07-00 SHAFT SEAL,N6324S | SHAFT SEAL,N6324S | |
4 | 6H4-JD005-17-00 RETNG.RING SPIROLX | RETNG.RING SPIROLX | |
5 | 6H4-JD005-06-00 SHAFT SEAL N472324 | SHAFT SEAL N472324 | |
6 | 6H1-JD005-27-00 Уплотнительное кольцо | Уплотнительное кольцо | |
7 | 6H1-JD005-02-00 BEARING, SNG. ROW | BEARING, SNG. ROW | |
8 | 6H4-JD005-11-00 RETAINING RING | RETAINING RING | |
9 | 6H4-JD000-41-00 SHFT.BEAR.THR.RING | SHFT.BEAR.THR.RING |
