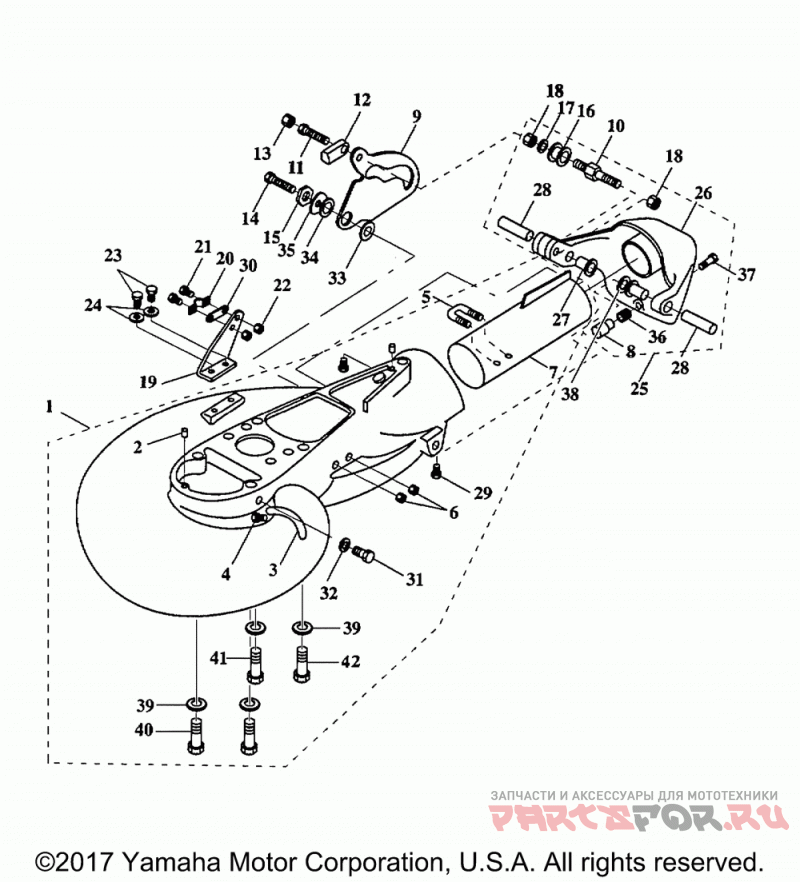

Main housing f90

Yamaha F90TJR-PUM 2017

Yamaha
#oem кодцена
1
6H1-JD009-08-01
MAIN HSNG.W/EX.TBE,
2
6H4-JD006-31-00
DOWEL PIN 3/16X1/2
3
6H4-JD009-75-00
HOSE,GREASE
4
6H4-JD005-39-00
FITTING,GREASE
5
67F-JD008-45-00
U BOLT 1 3/8
6
6H4-JD006-21-00
NUT, FIBER LOCK
7
6H1-JD001-28-00
EXHAUST TUBE
8
67F-JD001-49-70
GATE BUMPER
9
6H1-JD001-03-40
SHIFT CAM, (Y,AA)
10
6H4-JD001-04-30
SHAFT, ROLLER
11
6H1-JD005-73-00
BOLT,1/4-20 X 3/4"
12
63D-JD005-53-02
BALL END
13
6H4-JD006-23-00
NUT,FIBER 1/4-20
14
6H4-JD005-74-10
BOLT,HEX HD NYLOCK
15
6H4-JD001-03-60
ECCENTRIC, CAM
16
6H4-JD001-04-20
ROLLER ASSY W/BUSH
17
6H4-JD006-35-00
WASHER,PLAIN 1/4
18
6H4-JD006-24-00
NUT,FBR.LOC 1/4-28
19
6H4-JD001-56-00
BRACKET,CABLE SUPP
20
6H4-JD005-43-00
CABLE CLAMP 154317
21
6H4-JD005-61-00
SCREW,FIL HD SLOT
22
6H4-JD006-19-00
NUT,FBR LOCK 10/24
23
6H4-JD005-72-00
BOLT,HEX HEAD
24
6H4-JD006-35-00
WASHER,PLAIN 1/4
25
6H1-JD001-17-30
GATE ASSY,LGE. CAM
26
6H1-JD011-72-01
GATE, REVERSE Y,AA
27
6H1-JD005-36-00
NYLON SLEEVE 4951A
28
6H1-JD008-23-00
PIN,GATE PIVOT 1/2
29
6H4-JD005-74-00
BOLT,HEX HD.NY.LOC
30
6H4-JD005-42-00
SHIM,MORSE A035777
31
6H4-JD001-02-40
FLUSH SCREW
32
6H4-JD001-02-50
FLUSH WASHER
33
6H4-JD001-03-70
BUSHING, CAM
34
6H4-JD001-03-80
WASHER, CAM
35
6H4-JD001-03-90
SHIM, CAM
36
6H4-JD001-17-00
SPRING, BUMPER
37
67C-JD005-59-02
SCREW, FIL HD NYLON
38
6H1-JD001-17-80
WASHER, SPRING 1/2
39
6H4-JD006-36-00
WASHER,SPRING M10
42
6H1-JD006-10-00
BOLT 3/8-16 X 3"
