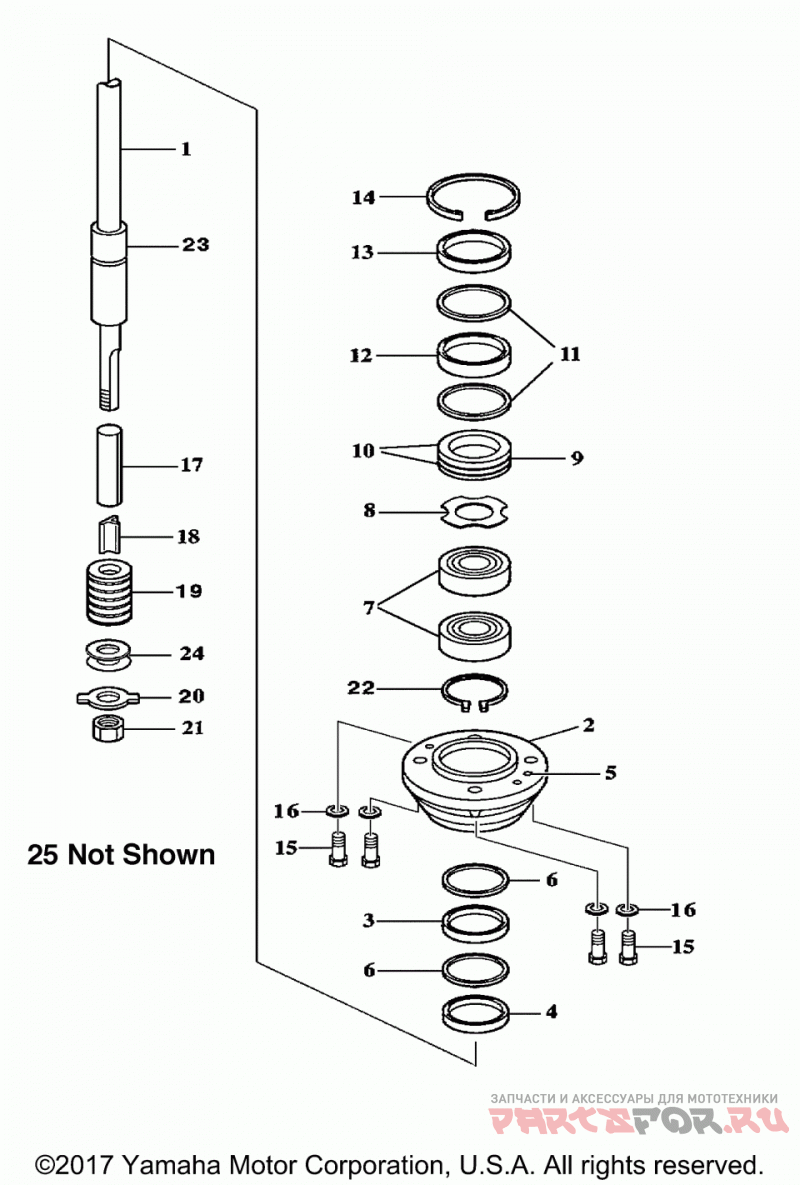

Drive 1 f90lb

Yamaha F90LB-PUMP

Yamaha
#oem кодцена
1
6E5-JD009-52-00
DRIVESHAFT ONLY
1
6E5-JD009-52-01
DRIVESHAFT ASSEMBLY W/BEARING C
2
6H1-JD003-93-05
. BEARING CARRIER W/SEAL, O-RIN
3
6H4-JD005-06-00
. SHAFT SEAL (N472324)
4
6H4-JD005-07-00
. SHAFT SEAL (N6324S)
5
6H4-JD005-21-00
. O-RING
6
6H4-JD005-17-00
. RETAINING RING
11
6H4-JD005-17-00
RETAINING RING
12
6H4-JD005-06-00
SHAFT SEAL (N472324)
13
6H4-JD005-07-00
SHAFT SEAL (N6324S)
14
6H1-JD005-13-00
RETAINING RING
15
6H1-JD006-02-01
Болт
16
6H4-JD006-40-00
Гровер
17
6H1-JD001-36-00
SHAFT SLEEVE, IMPELLER
18
6H1-JD004-34-00
KEY, TEE
19
6H1-JD001-21-00
SHIM WASHER
20
6H1-JD007-81-00
NUT KEEPER
21
6H1-JD001-22-10
NUT, DRIVESHAFT FLAT
22
6H4-JD000-41-00
SHAFT BEARING THRUST RING
23
90280-04M05-00
.KEY, WOODRUFF
24
6H4-JD005-11-00
RETAINING RING
25
67F-JD001-71-90
TORSIONAL DAMPER KIT
