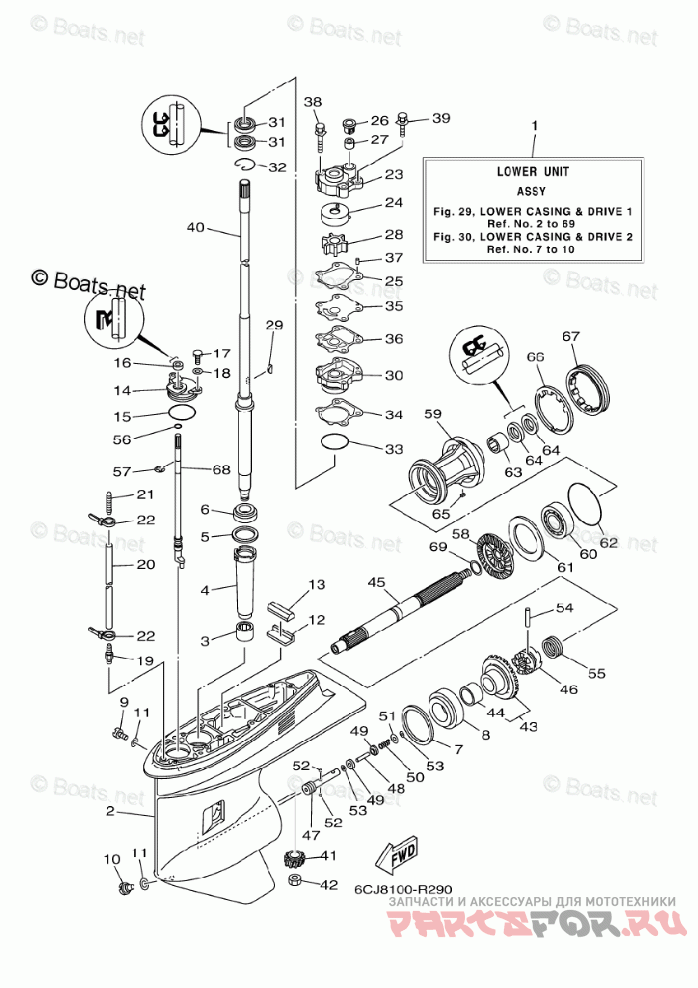

Lower Casing Drive 1

Yamaha F70LA

Yamaha
#oem кодцена
1
6CJ-45300-30-8D
LOWER UNIT ASSY
2
67F-45301-00-8D
CASING, LOWER
3
93315-52563-00
BEARING
4
688-45536-01-00
SLEEVE, DRIVE SHAFT
5
688-45587-20-00
SHIM (T:0.15MM)
5
688-45587-60-00
SHIM (T:0.50MM)
5
688-45587-50-00
SHIM (T:0.40MM)
5
688-45587-40-00
SHIM (T:0.30MM)
5
688-45587-30-00
SHIM (T:0.18MM)
5
688-45587-10-00
SHIM (T:0.12MM)
5
688-45587-01-00
SHIM (T:0.10MM)
6
93332-000U3-00
BEARING
7
688-45567-10-00
SHIM (T:0.12MM)
7
688-45567-01-00
SHIM (T:0.10MM)
7
688-45567-20-00
SHIM (T:0.15MM)
7
688-45567-40-00
SHIM (T:0.30MM)
7
688-45567-50-00
SHIM (T:0.40MM)
7
688-45567-60-00
SHIM (T:0.50MM)
7
688-45567-30-00
SHIM (T:0.18MM)
8
93332-00095-00
BEARING
9
90340-08002-00
PLUG, STRAIGHT SCREW
10
688-45341-10-00
PLUG, DRAIN
11
90430-08003-00
GASKET
12
663-45376-00-00
GUIDE, SEAL DAMPER
13
688-45375-00-00
DAMPER, SEAL
14
688-45321-00-00
PLATE
15
93210-49046-00
O-RING
16
93106-09014-00
OIL SEAL
17
97095-06016-00
BOLT
18
92995-06600-00
WASHER
19
6E5-45378-00-00
NIPPLE, HOSE
20
90445-07ME8-00
HOSE (L80)
21
6E5-83558-10-00
END, NIPPLE
22
90465-11M10-00
CLAMP
23
6CJ-44311-00-00
HOUSING, WATER PUMP
24
63D-44322-00-00
INSERT, CARTRIDGE
25
6CJ-44315-00-00
GASKET, WATER PUMP
26
63D-44312-00-00
COVER, WATER PUMP HOUSING
27
663-44366-00-00
DAMPER, WATER SEAL 2
28
6H3-44352-00-00
IMPELLER
29
90280-03M03-00
KEY, WOODRUFF
30
6CJ-44341-00-CA
HOUSING, WATER PUMP
31
93101-23070-00
OIL SEAL
32
93450-40165-00
CIRCLIP
33
93210-46044-00
O-RING
34
6CJ-44316-00-00
GASKET, WATER PUMP
35
6CJ-44323-00-00
OUTER PLATE, CARTRIDGE
36
6CJ-44324-00-00
GASKET, CARTRIDGE
37
93604-10M03-00
PIN, DOWEL
38
90119-08M33-00
BOLT, WITH WASHER
39
90119-08M14-00
BOLT, WITH WASHER
40
64J-45501-30-00
DRIVE SHAFT COMP.
41
6CJ-45551-00-00
PINION (12T)
42
90170-16M01-00
NUT
43
6CJ-45560-00-00
GEAR 1 (28T)
44
93317-322V0-00
BEARING
45
67F-45611-01-00
SHAFT, PROPELLER
46
6D8-45631-00-00
CLUTCH, DOG
47
67F-45634-00-00
SLIDE, SHIFT
48
6H1-45668-00-00
SHAFT, FREE 1
49
6H1-45635-00-00
PLUNGER, SHIFT
50
90501-12M48-00
SPRING, COMPRESSION
51
90201-03313-00
WASHER, PLATE
52
93503-16003-00
BALL
53
90183-02M03-00
NUT, SPRING
54
90250-07M02-00
PIN, STRAIGHT
55
688-45633-00-00
RING, CROSS PIN
56
93210-07003-00
O-RING
57
99001-08600-00
CIRCLIP
58
68S-45571-00-00
GEAR 2 (28T)
59
67F-45331-00-CA
HOUSING, BEARING
60
93306-207U0-00
BEARING
61
67F-45576-00-00
WASHER, THRUST 2
62
93210-86M39-00
O-RING
63
93317-325U0-00
BEARING
64
93101-25M03-00
OIL SEAL
65
90282-04010-00
KEY, STRAIGHT
66
688-45383-02-00
WASHER, CLAW
67
688-45384-02-00
NUT
68
64J-44150-01-00
SHIFT CAM ASSY
69
90201-25M05-00
WASHER, PLATE
