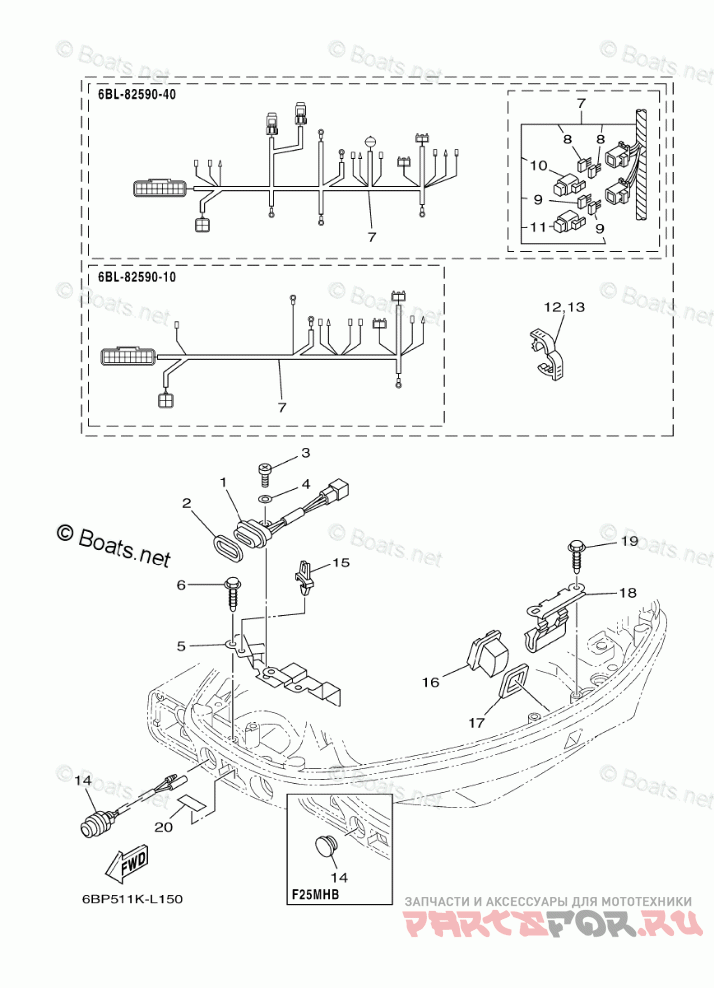

Electrical 4
Yamaha F25LMHB
| # | oem код | название | цена |
|---|---|---|---|
1 | 62Y-84301-00-00 PILOT LIGHT ASSY 1 | PILOT LIGHT ASSY 1 | |
2 | 6H4-83589-00-00 GASKET | GASKET | |
3 | 97885-06012-00 SCREW, PAN HEAD | SCREW, PAN HEAD | |
4 | 92995-06600-00 WASHER | WASHER | |
5 | 6BL-82388-00-00 PLATE | PLATE | |
6 | 90109-06M86-00 BOLT | BOLT | |
7 | 6BL-82590-10-00 WIRE HARNESS ASSY | WIRE HARNESS ASSY | |
12 | 90464-18004-00 CLAMP | CLAMP | |
13 | 90464-09010-00 CLAMP | CLAMP | |
14 | 6G1-42725-00-00 GROMMET | GROMMET | |
16 | 69J-42723-01-00 COVER, BOTTOM | COVER, BOTTOM | |
17 | 69J-82587-00-00 GASKET | GASKET | |
18 | 63P-83614-01-00 BRACKET | BRACKET | |
19 | 90109-06M86-00 BOLT | BOLT | |
20 | 67C-85415-00-00 MARK, SIGNAL LAMP | MARK, SIGNAL LAMP |
