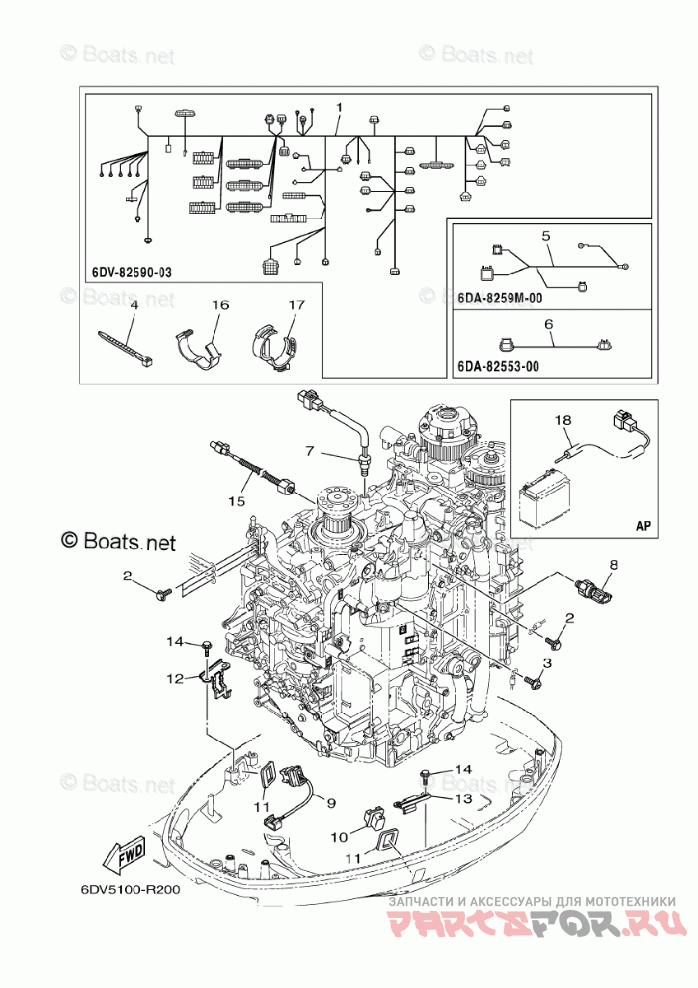

Electrical 4

Yamaha F200XCA

Yamaha
#oem кодцена
1
6DV-82590-03-00
WIRE HARNESS ASSY
2
97595-06516-00
BOLT, WITH WASHER
3
97985-04308-00
SCREW, WITH WASHER
4
90465-11M59-00
CLAMP
5
6DA-8259M-00-00
WIRE HARNESS ASSY 2
6
6DA-82553-00-00
EXTENSION, WIRE LEAD
7
6CB-85790-00-00
THERMOSENSOR ASSY
8
6AW-83651-00-00
SENDER, OIL PRESSURE
9
6BR-82563-01-00
TRIM & TILT SWITCH ASSY
10
69J-42723-01-00
COVER, BOTTOM
11
69J-82587-00-00
GASKET
12
63P-83614-01-00
BRACKET
13
6DA-83614-00-00
BRACKET
14
95895-06012-00
BOLT, FLANGE
15
6CJ-85780-00-00
SENSOR, KNOCK
16
90464-26001-00
CLAMP
17
90464-30003-00
CLAMP
18
69J-81949-02-00
WIRE, LEAD (ISOLATOR, 3.8M )
