Ремонтные комплекты 3

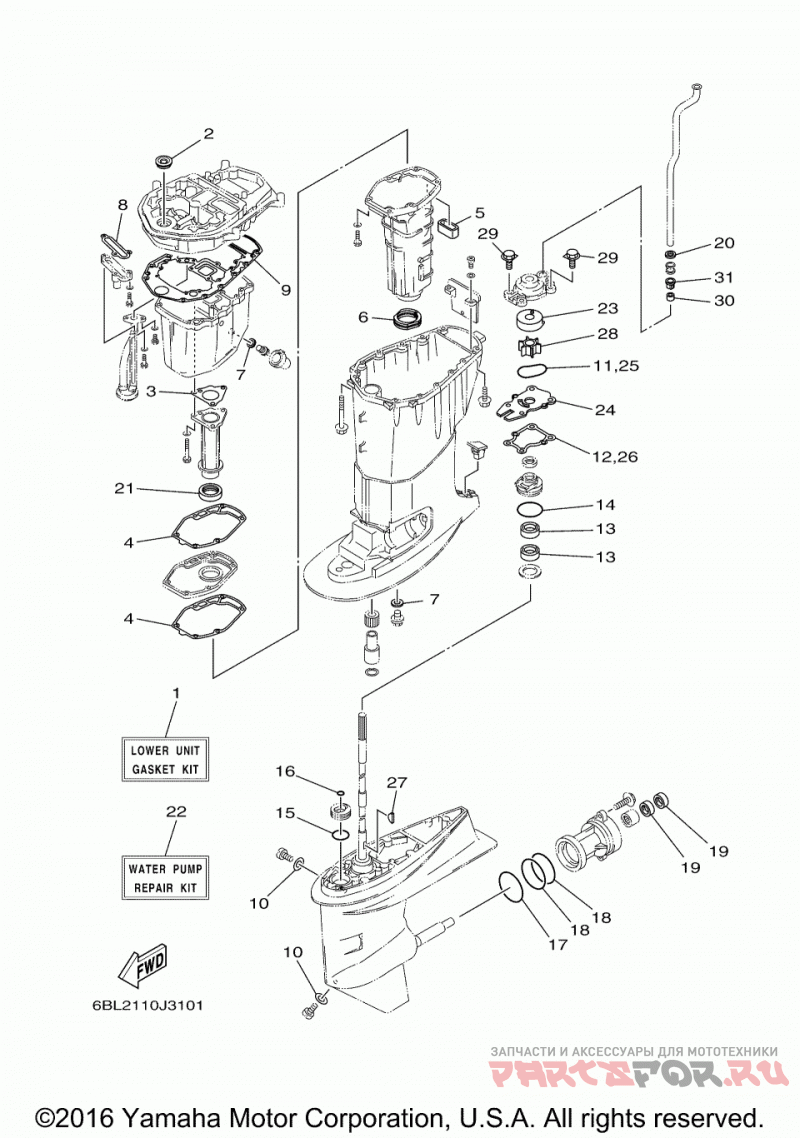

Yamaha T25LA

Yamaha
#oem кодцена
1
6BL-W0001-22-00
LOWER UNIT GASKET KIT
2
93103-16011-00
. .OIL SEAL
3
64J-41133-10-00
. .GASKET, EXHAUST MANIFOLD 1
4
6BG-41134-00-00
. .GASKET, EXHAUST MANIFOLD
5
62Y-45127-00-00
. .SEAL
6
67C-45123-00-00
. .GASKET, MUFFLER
7
90430-14M09-00
. .GASKET
8
62Y-13475-00-00
. .GASKET
10
90430-08003-00
. .GASKET
11
93210-59MG7-00
. .O-RING
12
63D-44316-00-00
. .GASKET, WATER PUMP
13
93101-22M60-00
. .OIL SEAL
14
93210-48001-00
. .O-RING
15
93210-33MG4-00
. .O-RING
16
93210-06ME6-00
. .O-RING
17
93210-69MG6-00
. .O-RING
19
93101-22067-00
. .OIL SEAL
20
90430-12072-00
. GASKET
21
64J-46132-10-00
. .GASKET 1
22
66T-W0078-00-00
WATER PUMP REPAIR KIT
23
63D-44322-00-00
. .INSERT, CARTRIDGE
24
66T-44323-00-00
. .OUTER PLATE, CARTRIDGE
25
93210-59MG7-00
. .O-RING
26
63D-44316-00-00
. .GASKET, WATER PUMP
27
90280-03M03-00
. .KEY, WOODRUFF
28
6H4-44352-02-00
. .IMPELLER
29
90119-08M15-00
. .BOLT, WITH WASHER
30
663-44366-00-00
. .DAMPER, WATER SEAL 2
31
63D-44312-00-00
. .COVER, WATER PUMP HOUSING
