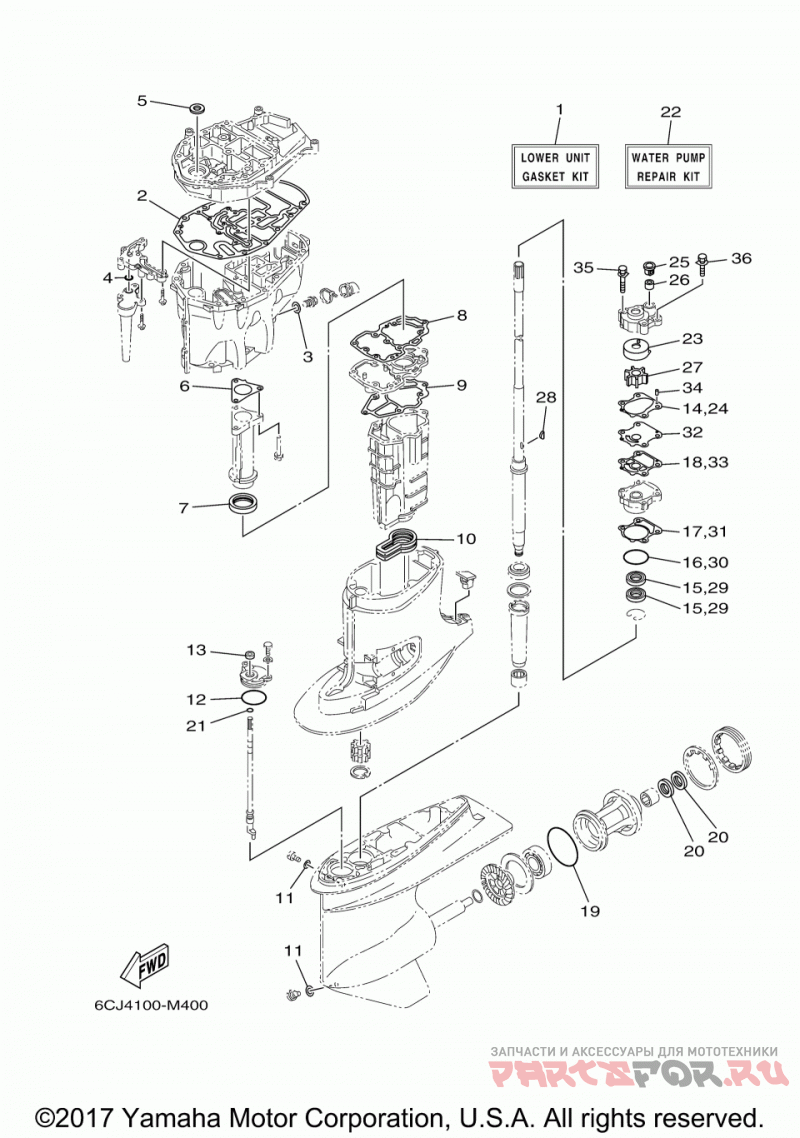

Ремонтные комплекты 2 для лодочных моторов Yamaha F70LA (2016)

Москва и регионы России

Ремонтные комплекты 2

Yamaha F70LA

Ремонтные комплекты 2

#

oem код

название

цена

1

6CJ-W0001-21-00

LOWER UNIT GASKET KIT

LOWER UNIT GASKET KIT

2

6C5-15312-01-00

. .GASKET, OIL PAN

. .GASKET, OIL PAN

3

. .GASKET

. .GASKET

4

. .O-RING

. .O-RING

5

. .OIL SEAL

. .OIL SEAL

6

6C5-41133-00-00

. .GASKET, EXHAUST MANIFOLD 1

. .GASKET, EXHAUST MANIFOLD 1

7

6C5-46132-00-00

. .GASKET 1

. .GASKET 1

8

6C5-41134-00-00

. .GASKET, EXHAUST MANIFOLD

. .GASKET, EXHAUST MANIFOLD

9

6C5-41135-00-00

. .GASKET, EXHAUST MANIFOLD

. .GASKET, EXHAUST MANIFOLD

10

6C5-45123-00-00

. .GASKET, MUFFLER

. .GASKET, MUFFLER

11

. .GASKET

. .GASKET

12

. O-RING

. O-RING

13

. .OIL SEAL

. .OIL SEAL

14

6CJ-44315-00-00

. .GASKET, WATER PUMP

. .GASKET, WATER PUMP

15

. .OIL SEAL

. .OIL SEAL

16

. O-RING

. O-RING

17

6CJ-44316-00-00

. .GASKET, WATER PUMP

. .GASKET, WATER PUMP

18

6CJ-44324-00-00

. .GASKET, CARTRIDGE

. .GASKET, CARTRIDGE

19

. .O-RING

. .O-RING

20

. .OIL SEAL

. .OIL SEAL

21

. .O-RING

. .O-RING

22

6CJ-W0078-00-00

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

23

63D-44322-00-00

. .INSERT, CARTRIDGE

. .INSERT, CARTRIDGE

24

6CJ-44315-00-00

. .GASKET, WATER PUMP

. .GASKET, WATER PUMP

25

63D-44312-00-00

. .COVER, WATER PUMP HOUSING

. .COVER, WATER PUMP HOUSING

26

663-44366-00-00

. DAMPER, WATER SEAL 2

. DAMPER, WATER SEAL 2

27

6H3-44352-00-00

. .IMPELLER

. .IMPELLER

28

. .KEY, WOODRUFF

. .KEY, WOODRUFF

29

. .OIL SEAL

. .OIL SEAL

30

. O-RING

. O-RING

31

6CJ-44316-00-00

. .GASKET, WATER PUMP

. .GASKET, WATER PUMP

32

6CJ-44323-00-00

. .OUTER PLATE, CARTRIDGE

. .OUTER PLATE, CARTRIDGE

33

6CJ-44324-00-00

. .GASKET, CARTRIDGE

. .GASKET, CARTRIDGE

34

. .PIN, DOWEL

. .PIN, DOWEL

35

. .BOLT, WITH WASHER

. .BOLT, WITH WASHER

36

. .BOLT, WITH WASHER

. .BOLT, WITH WASHER
