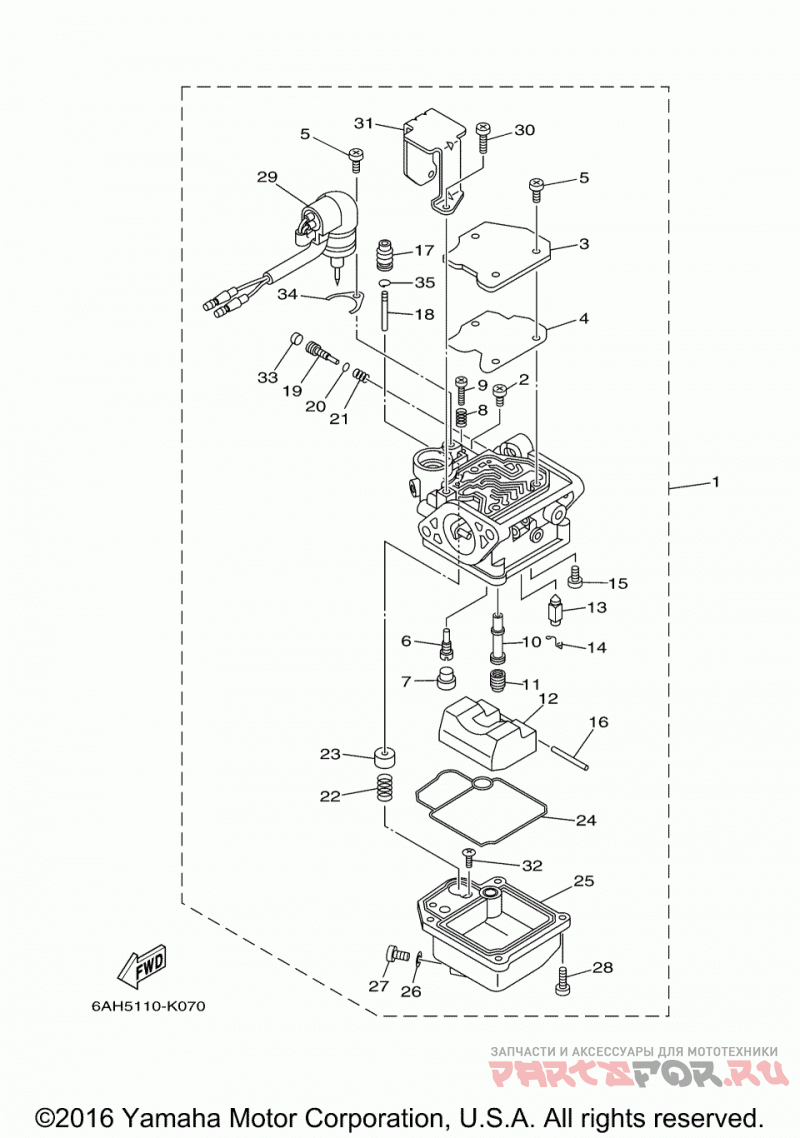

Карбюратор

Yamaha F15SEHA/F15SMHA/F15LPHA/F15LEHA/F15LMHA

Yamaha
#oem кодцена
1
6AG-14301-E0-00
Карбюратор в сборе
1
6AG-14301-A0-00
Карбюратор в сборе
2
98580-04006-00
. .SCREW, PAN HEAD
3
65W-14572-00-00
. .PLATE
4
65W-14126-10-00
. .GASKET
5
97980-04110-00
. .SCREW, WITH WASHER
6
6AH-14948-02-00
. .JET (#38)
6
6AG-14948-02-00
. .JET (#38)
7
679-14966-00-00
. .RUBBER CAP
8
90501-10326-00
. .SPRING, COMPRESSION
9
63V-14523-00-00
. .SCREW, STOP
10
6AH-14947-10-00
. .JET, NEEDLE
11
676-14943-19-00
. .JET, MAIN (#80)
12
6AH-14985-00-00
. .FLOAT
13
6AH-14546-00-00
. .VALVE, NEEDLE
14
633-14159-00-00
. .CLIP
15
98580-04008-00
. .SCREW, PAN HEAD
16
6H4-14548-00-00
. .PIN, FLOAT ARM
17
65W-14373-02-00
. .COVER, PLUNGER CAP
18
6AH-14379-00-00
. .ROD, STARTER
19
67C-14923-00-00
. .SCREW, PILOT
20
67F-14398-10-00
. .O-RING
21
67C-14555-00-00
. .SPRING
22
65W-14335-00-00
. .SPRING, PLUNGER
23
6AH-14371-00-00
. .PLUNGER, STARTER
24
6AH-14384-00-00
. .GASKET, FLOAT CHAMBER
25
6AH-14980-00-00
. .BODY, FLOAT CHAMBER
26
6G1-14398-00-00
. .GASKET
27
65W-14992-00-00
. .SCREW, DRAIN
28
97980-04114-00
. .SCREW, WITH WASHER
29
6AH-14380-11-00
. .PRIME STARTER ASSY
29
6AH-14380-01-00
. .PRIME STARTER ASSY
30
97980-04108-00
. .SCREW, WITH WASHER
31
6AH-14346-00-00
. .PLATE
32
67C-14567-00-00
. .SCREW
33
67C-1432A-00-00
. .PLUG
34
65W-14346-00-00
. .PLATE
35
65W-1439G-00-00
. .CLIP 1
