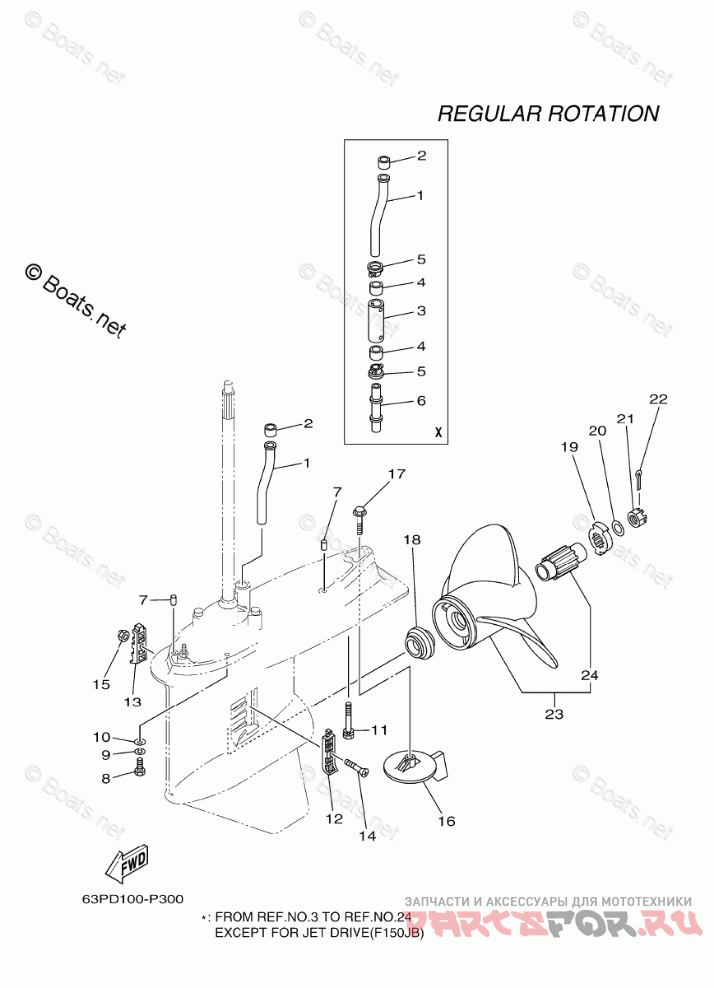

Lower Casing Drive 2

Yamaha F150LB

Yamaha
#oem кодцена
1
63P-44361-00-00
TUBE, WATER 1
2
6E5-44365-00-00
DAMPER, WATER SEAL 1
7
93608-16M16-00
PIN, DOWEL
8
97095-10045-00
BOLT
9
92995-10100-00
WASHER
10
92995-10600-00
WASHER
11
90119-10MA2-00
BOLT, WITH WASHER
12
6J9-45214-00-00
COVER, WATER INLET 1
13
6J9-45215-00-00
COVER, WATER INLET 2
14
90152-05M08-00
SCREW, COUNTERSUNK
15
90185-05002-00
NUT, NYLON
16
6J9-45371-01-00
TAB-TRIM
17
90105-10M00-00
BOLT, FLANGE
18
63P-45987-00-00
SPACER 1
19
6CE-45997-00-00
SPACER 2
20
92990-18200-00
WASHER
21
90171-18M04-00
NUT, CASTLE
22
91490-40030-00
PIN. COTTER
23
68F-45976-10-00
PROPELLER (3X13-3/4"X21"-M)
23
68F-45972-10-00
PROPELLER (3X14-1/4"X17"-M)
23
68F-45978-10-00
PROPELLER (3X14-1/4"X18"-M)
23
68F-45970-10-00
PROPELLER (3X14-1/2"X15"-M)
23
68F-45974-10-00
PROPELLER (3X13-3/4"X19"-M)
24
6CE-45C81-00-00
DAMPER RUBBER, PROPELLER 1
