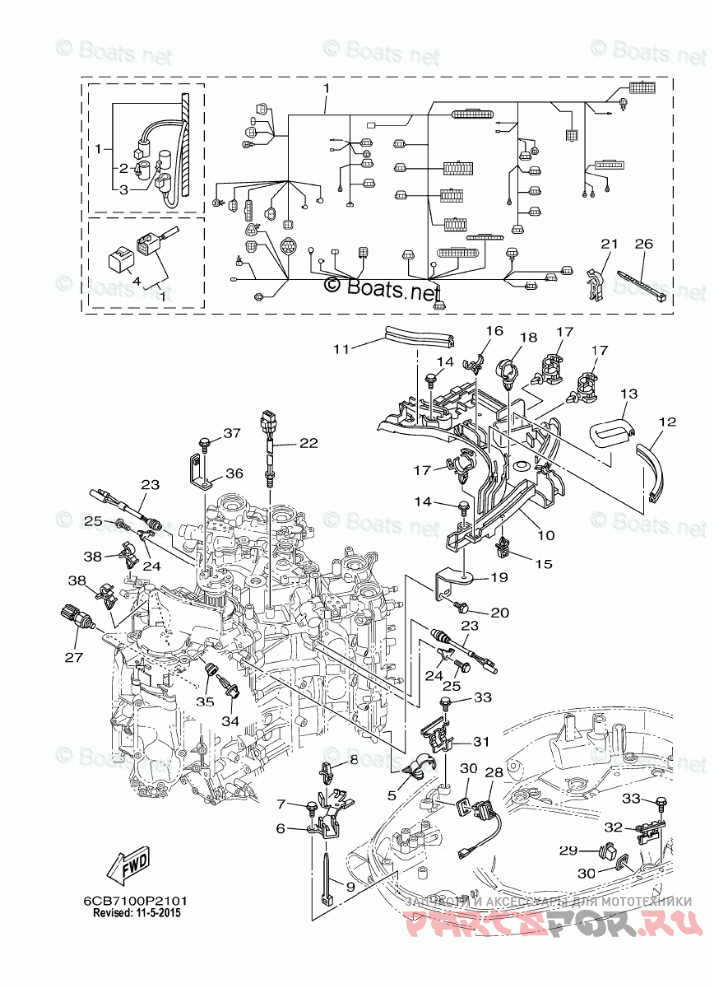

Electrical 4

Yamaha VF200LA

Yamaha
#oem кодцена
1
6CB-82590-02-00
WIRE HARNESS ASSY
1
6CB-82590-10-00
WIRE HARNESS ASSY
2
6P2-82582-00-00
CAP 1 (FEMALE)
3
6P2-82582-10-00
CAP 1 (MALE)
4
6Y8-82582-11-00
CAP 1 (4PIN)
5
90464-20181-00
CLAMP
6
6CB-82594-00-00
CLAMP
7
95895-06012-00
BOLT, FLANGE
8
90464-06001-00
CLAMP
9
90465-13M24-00
CLAMP
10
6CB-82589-10-00
PROTECTER, WIRE HARNESS
10
6CB-82589-01-00
PROTECTER, WIRE HARNESS
11
6AH-42617-00-00
DAMPER, FORM
11
6BG-42617-00-00
DAMPER, FORM
12
6CB-42617-00-00
DAMPER, FORM
13
6CB-42629-00-00
SEAL
14
95895-06020-00
BOLT, FLANGE
15
90464-11121-00
CLAMP
16
90464-18246-00
CLAMP
17
90464-12183-00
CLAMP
18
90464-20181-00
CLAMP
19
6CB-82388-00-00
PLATE
20
95895-06016-00
BOLT, FLANGE
21
90464-23001-00
CLAMP
22
6CB-85790-00-00
THERMOSENSOR ASSY
23
6P2-82560-01-00
THERMO SWITCH ASSY
24
6E9-82588-00-00
PLATE
25
95895-06012-00
BOLT, FLANGE
26
90465-14M66-00
CLAMP
27
6AW-83651-00-00
SENDER, OIL PRESSURE
28
69J-82563-01-00
TRIM & TILT SWITCH ASSY
29
69J-42723-01-00
COVER, BOTTOM
30
69J-82587-00-00
GASKET
31
63P-83614-01-00
BRACKET
32
63P-83614-01-00
BRACKET
33
95895-06012-00
BOLT, FLANGE
34
63P-85886-00-00
SENSOR, AIR TEMPERATURE
35
63P-14435-00-00
GROMMET
36
6CB-81952-10-00
HOLDER, RELAY
36
6CB-81952-00-00
HOLDER, RELAY
37
95895-06016-00
BOLT, FLANGE
38
90464-09129-00
CLAMP
