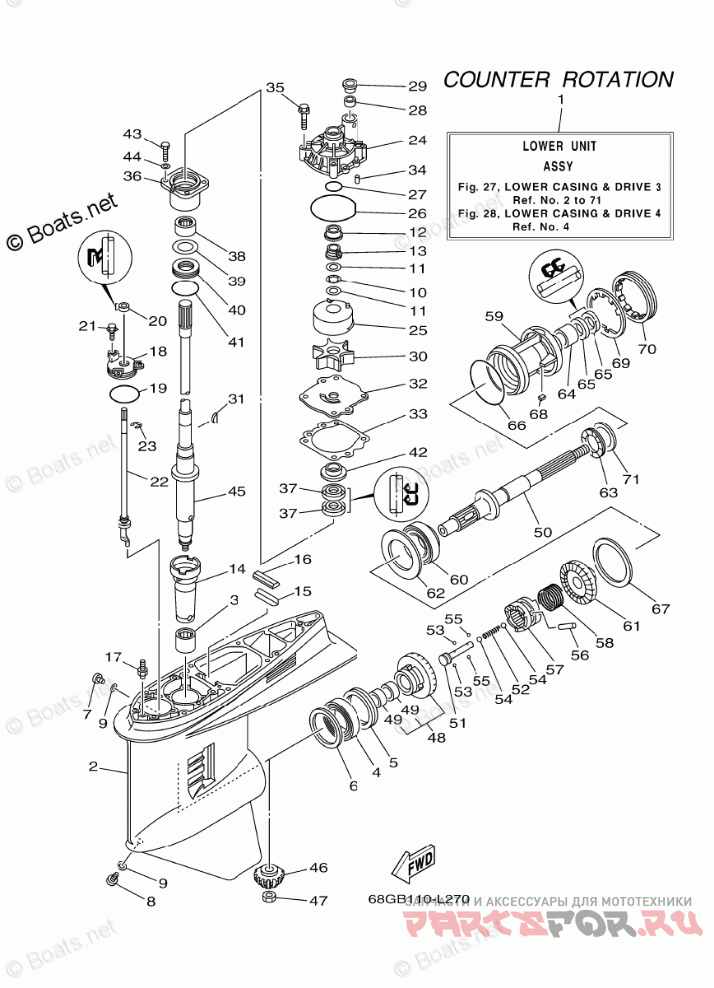

Lower Casing Drive 3

Yamaha LZ200TXR

Yamaha
#oem кодцена
1
64H-45300-23-8D
LOWER UNIT ASSY
2
6J9-45301-07-8D
CASING, LOWER
3
93311-928U5-00
BEARING
4
93390-000U2-00
BEARING
5
93341-465U4-00
BEARING
6
6G5-45567-01-00
SHIM (T:0.10MM)
6
6G5-45567-10-00
SHIM (T:0.12MM)
6
6G5-45567-20-00
SHIM (T:0.15MM)
6
6G5-45567-30-00
SHIM (T:0.18MM)
6
6G5-45567-40-00
SHIM (T:0.30MM)
6
6G5-45567-50-00
SHIM (T:0.40MM)
6
6G5-45567-60-00
SHIM (T:0.50MM)
7
90340-08002-00
PLUG, STRAIGHT SCREW
8
688-45341-10-00
PLUG, DRAIN
9
90430-08020-00
GASKET
10
90206-22M19-00
WASHER, WAVE
11
90201-22M01-00
WASHER, PLATE
12
61A-45527-00-00
COLLAR, DRIVE SHAFT
13
61A-45538-00-00
SPACER 1
14
6G5-45536-01-00
SLEEVE, DRIVE SHAFT
15
64D-45376-00-00
GUIDE, SEAL DAMPER
16
688-45375-00-00
DAMPER, SEAL
17
6J8-45378-00-00
NIPPLE, HOSE (PLUG)
18
6E5-45321-00-00
PLATE
19
93210-58144-00
O-RING
20
93106-09014-00
OIL SEAL
21
90119-06M10-00
BOLT, WITH WASHER
22
6K1-44150-02-00
SHIFT CAM ASSY
23
99001-08600-00
CIRCLIP
24
61A-44311-01-00
HOUSING, WATER PUMP
25
61A-44322-02-00
INSERT, CARTRIDGE
26
93210-86M38-00
O-RING
27
93210-37160-00
O-RING
28
6E5-44365-00-00
DAMPER, WATER SEAL 1
29
6E5-44312-00-00
COVER, WATER PUMP HOUSING
30
6E5-44352-01-00
IMPELLER
31
90280-04M05-00
KEY, WOODRUFF
32
6G5-44323-00-00
OUTER PLATE, CARTRIDGE
33
6E5-44315-A0-00
GASKET, WATER PUMP
34
93606-12019-00
PIN, DOWEL
35
90119-08M14-00
BOLT, WITH WASHER
36
6E5-45331-00-9S
HOUSING, BEARING
37
93101-28M16-00
OIL SEAL
38
93317-330U2-00
BEARING
39
6E5-45587-30-00
SHIM (T:0.18MM)
39
6E5-45587-60-00
SHIM (T:0.50MM)
39
6E5-45587-40-00
SHIM (T:0.30MM)
39
6E5-45587-01-00
SHIM (T:0.10MM)
39
6E5-45587-10-00
SHIM (T:0.12MM)
39
6E5-45587-20-00
SHIM (T:0.15MM)
39
6E5-45587-50-00
SHIM (T:0.40MM)
40
93341-930V2-00
BEARING
41
93210-55M14-00
O-RING
42
6E5-45344-00-00
COVER, OIL SEAL
43
97095-08025-00
BOLT
44
92995-08600-00
WASHER
45
6G5-45501-21-00
DRIVE SHAFT COMP.
46
6G5-45551-10-00
PINION (14T)
47
90170-16M01-00
NUT
48
6K1-45560-01-00
GEAR 1 (26T)
49
93315-425V3-00
BEARING
50
6K1-45611-10-00
SHAFT, PROPELLER
51
6E5-45634-02-00
SLIDE, SHIFT
52
90501-16M37-00
SPRING, COMPRESSION
53
93507-32009-00
BALL
54
93511-32017-00
BALL
55
93503-16003-00
BALL
56
90250-08M07-00
PIN, STRAIGHT
57
6G5-45631-10-00
CLUTCH, DOG
58
6E5-45633-01-00
RING, CROSS PIN
59
6K1-45332-01-CA
HOUSING, BEARING
60
93332-00048-00
BEARING
61
6K1-45570-20-00
GEAR 2 (26T)
62
6K1-45576-00-00
WASHER, THRUST 2
63
93341-440U5-00
BEARING
64
93315-43061-00
BEARING
65
93101-30M17-00
OIL SEAL
66
93210-97M55-00
O-RING
67
6G5-45577-02-00
SHIM (T:0.10MM)
67
6G5-45577-10-00
SHIM (T:0.12MM)
67
6G5-45577-50-00
SHIM (T:0.40MM)
67
6G5-45577-20-00
SHIM (T:0.15MM)
67
6G5-45577-30-00
SHIM (T:0.18MM)
67
6G5-45577-40-00
SHIM (T:0.30MM)
67
6G5-45577-60-00
SHIM (T:0.50MM)
68
90282-04M00-00
KEY, STRAIGHT
69
6G5-45383-01-00
WASHER, CLAW
70
6G5-45384-02-00
NUT
71
6K1-45578-01-00
SHIM (T:0.10MM)
71
6K1-45578-10-00
SHIM (T:0.12MM)
71
6K1-45578-20-00
SHIM (T:0.15MM)
71
6K1-45578-30-00
SHIM (T:0.18MM)
71
6K1-45578-40-00
SHIM (T:0.30MM)
71
6K1-45578-50-00
SHIM (T:0.40MM)
71
6K1-45578-60-00
SHIM (T:0.50MM)
