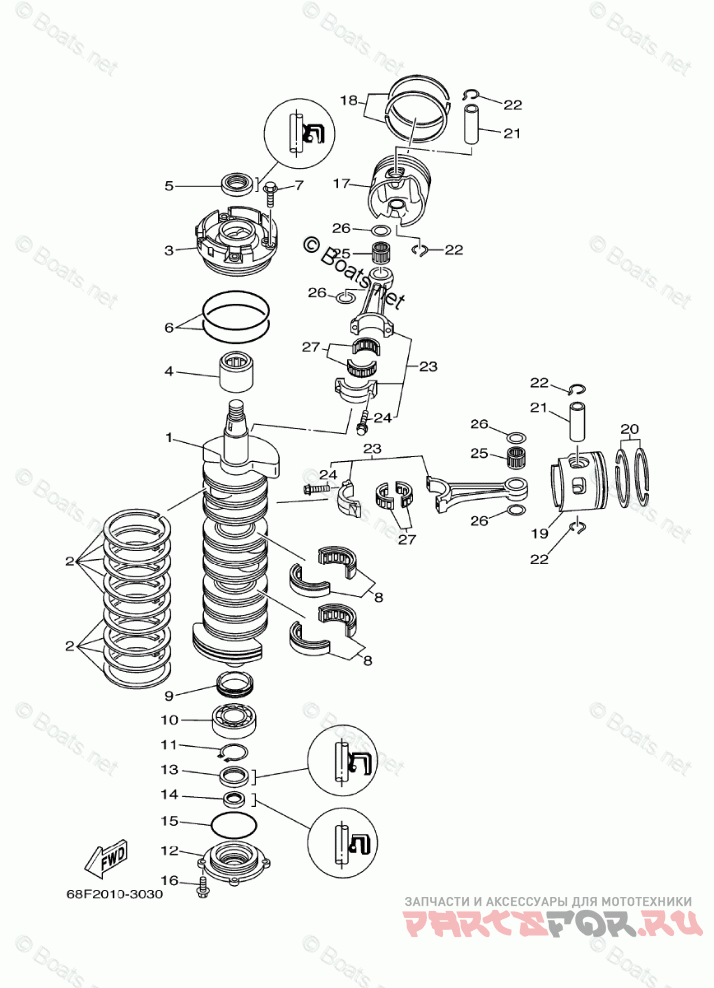

Crankshaft Piston

Yamaha LZ200TXR

Yamaha
#oem кодцена
1
68F-11411-01-00
CRANKSHAFT
2
6E5-11447-00-00
SEAL, CRANK
3
68F-15163-00-1S
HOUSING, BEARING 1
4
93311-940U3-00
BEARING
5
93102-40M14-00
OIL SEAL
6
93211-04001-00
O-RING
7
90119-06MA3-00
BOLT, WITH WASHER
8
93310-954U1-00
BEARING
9
6R3-11536-00-00
GEAR, DRIVE
10
93306-208U0-00
BEARING
11
93410-40M03-00
CIRCLIP
12
6G5-15359-00-94
HOUSING, OIL SEAL
13
93102-35M61-00
OIL SEAL
14
93101-22M15-00
OIL SEAL
15
93210-74M35-00
O-RING
16
90119-06MA2-00
BOLT, WITH WASHER
17
68F-11631-01-85
PISTON (STD)
17
68F-11636-01-00
PISTON (0.50MM O/S)
17
68F-11635-01-00
PISTON (0.25MM O/S)
18
68F-11603-02-00
PISTON RING SET (STD)
18
68F-11605-02-00
PISTON RING SET (0.50MM O/S)
18
68F-11604-02-00
PISTON RING SET (0.25MM O/S)
19
68F-11645-01-00
PISTON 2 (0.25MM O/S)
19
68F-11646-01-00
PISTON 2 (0.50MM O/S)
19
68F-11642-01-85
PISTON 2 (STD)
20
68F-11603-02-00
PISTON RING SET (STD)
20
68F-11605-02-00
PISTON RING SET (0.50MM O/S)
20
68F-11604-02-00
PISTON RING SET (0.25MM O/S)
21
6R5-11633-10-00
PIN, PISTON
22
6R5-11634-10-00
CLIP, PISTON PIN
23
6R5-11650-10-00
CONNECTING ROD ASSY
24
90109-08022-00
BOLT
25
93310-32337-00
BEARING
26
90201-23M01-00
WASHER, PLATE
27
93310-836U0-00
BEARING
