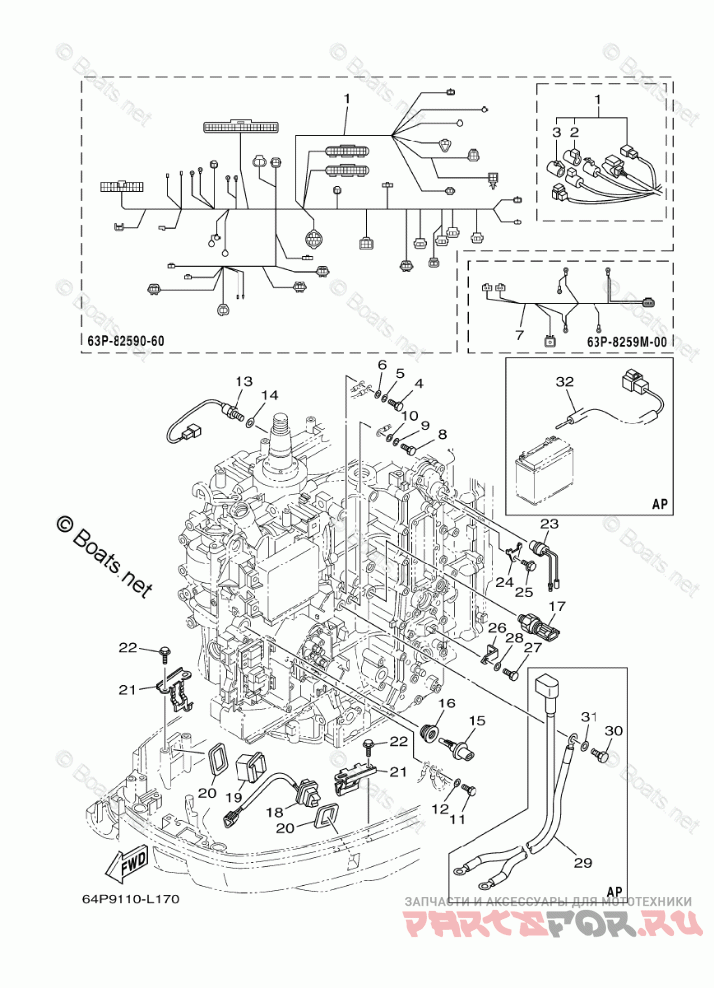

Electrical 3

Yamaha LF150XA

Yamaha
#oem кодцена
1
63P-82590-60-00
WIRE HARNESS ASSY
2
6P2-82582-00-00
CAP 1 (FEMALE)
3
6P2-82582-10-00
CAP 1 (MALE)
4
97095-06016-00
BOLT
5
92995-06100-00
WASHER, SPRING
6
92995-06600-00
WASHER
7
63P-8259M-00-00
WIRE HARNESS ASSY 2
8
97095-06016-00
BOLT
9
92995-06100-00
WASHER, SPRING
10
92995-06600-00
WASHER
11
97095-06012-00
BOLT
12
92995-06600-00
WASHER
13
61A-85790-00-00
THERMOSENSOR ASSY
14
92990-10600-00
WASHER, PLATE
15
63P-85886-00-00
SENSOR, AIR TEMPERATURE
16
63P-14435-00-00
GROMMET
17
6AW-83651-00-00
SENDER, OIL PRESSURE
18
69J-82563-00-00
TRIM & TILT SWITCH ASSY
19
69J-42723-01-00
COVER, BOTTOM
20
69J-82587-00-00
GASKET
21
63P-83614-01-00
BRACKET
22
90109-06M86-00
BOLT
23
6P2-82560-01-00
THERMO SWITCH ASSY
24
6E9-82588-00-00
PLATE
25
90109-06M80-00
BOLT
26
63P-8366P-01-00
BRACKET 4
27
97095-06012-00
BOLT
28
92995-06600-00
WASHER
29
63P-82105-00-00
BATTERY CABLE
30
97095-08016-00
BOLT
31
92995-08600-00
WASHER
32
68F-81949-02-00
WIRE, LEAD (ISOLATOR, 2.7M )
