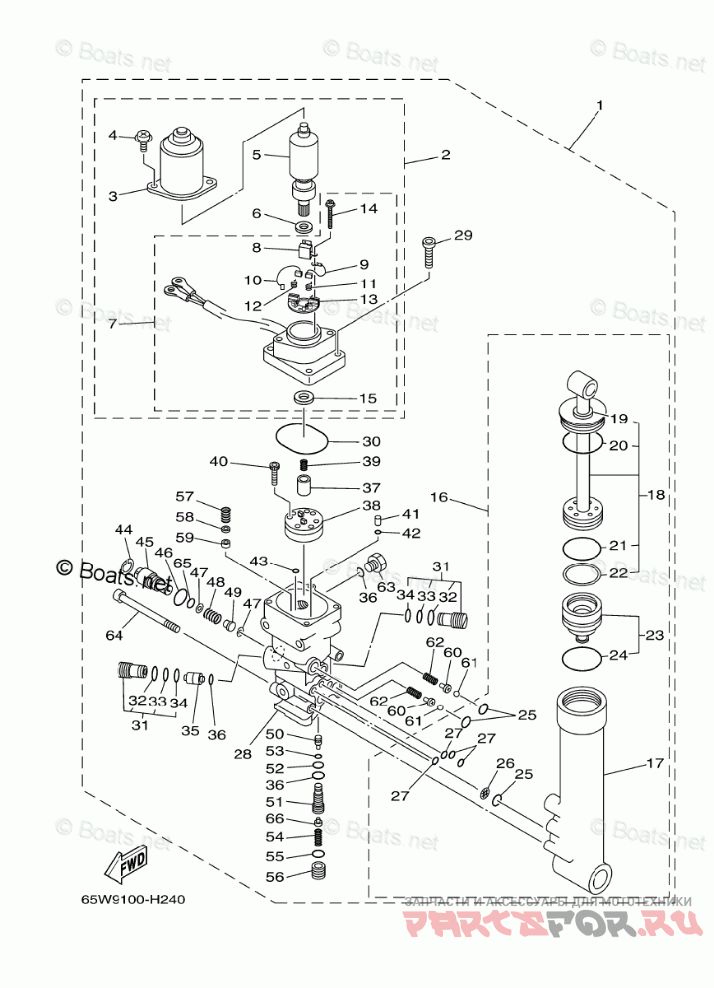

Power Trim & Tilt Assy

Yamaha F25LA

Yamaha
#oem кодцена
1
65W-43800-03-4D
POWER TRIM & TILT ASSY
2
65W-43880-01-00
MOTOR ASSY
3
65W-43804-01-00
STATOR ASSY
4
65W-43887-01-00
BOLT
5
65W-43805-01-00
ARMATURE ASSY
6
65W-4387G-00-00
WASHER
7
65W-43881-01-00
FRAME, END
8
65W-82181-00-00
CIRCUIT BREAKER COMP
9
65W-43892-01-00
BRUSH 2
10
65W-43891-01-00
BRUSH 1
11
65W-4386K-01-00
SPRING, BRUSH
12
65W-4386L-00-00
SPRING, BRUSH 2
13
65W-4380F-01-00
PLATE, BRUSH HOLDER
14
65W-43879-01-00
SCREW, WITH WASHER
15
65W-43882-01-00
OIL SEAL
16
65W-43840-00-00
POWER TILT ASSY
17
65W-4380K-00-00
CYLINDER, TILT SUB ASSY
18
65W-43810-00-00
TILT PISTON SUB ASSY
19
65W-43812-00-00
SEAL, DUST
20
65W-43865-00-00
O-RING
21
6H1-43861-10-00
O-RING
22
65W-43871-00-00
RING, BACK UP
23
65W-4381B-00-00
FREE PISTON SUB ASSY
24
6H1-43861-10-00
O-RING
25
93210-11368-00
O-RING
26
6H1-43816-00-00
FILTER 1
27
93210-064A5-00
O-RING
28
65W-4380L-00-00
HOUSING, TRIM & TILT SUB ASSY
29
65W-43888-00-00
BOLT, SOCKET
30
93210-50768-00
O-RING
31
6T4-43802-03-00
VALVE SUB ASSY
32
6H1-43866-01-00
O-RING
33
93210-10M74-00
O-RING
34
93210-12N52-00
O-RING
35
62X-43841-00-00
PISTON, SHUTTLE
36
93210-09165-00
O-RING
37
65W-43831-00-00
CONNECTOR, SHAFT
38
65W-43830-00-00
GEAR PUMP ASSY
39
6T4-43853-00-00
SPRING, MAIN VALVE
40
91318-04025-00
BOLT
41
65W-43817-00-00
FILTER 2
42
93210-04N50-00
O-RING
43
93210-04N51-00
O-RING
44
6H1-43875-00-00
RING, SNAP
45
6H1-43845-00-00
SCREW, MANUAL RELEASE
46
6D8-43863-00-00
O-RING
47
6H1-43847-00-00
SEAT, MANUAL VALVE
48
65W-43854-00-00
SPRING, MANUAL RELEASE
49
65W-4382A-00-00
ADAPTOR 1
50
65W-43844-00-00
PIN, VALVE SUPPORT
51
65W-43851-00-00
SEAT, RELIEF VALVE
52
93210-08006-00
O-RING
53
93210-03478-00
O-RING
54
65W-43855-00-00
SPRING, UP RELIEF
55
93210-11073-00
O-RING
56
65W-43843-00-00
SCREW, VALVE LOCK
57
6H1-43856-10-00
SPRING, DOWN RELIEF
58
6H1-43844-10-00
PIN, VALVE SUPPORT
59
6H1-4384F-10-00
SEAL, MAIN VALVE
60
65W-4386A-00-00
PIN, ABSORBER VALVE
61
93501-08001-00
BALL
62
65W-43853-00-00
SPRING, MAIN VALVE
63
6H1-43829-00-00
PLUG, RESERVOIR
64
62X-43878-00-00
BOLT, SOCKET
65
93210-10M74-00
O-RING
66
6T4-43808-00-00
SEAT VALVE COMP 1
