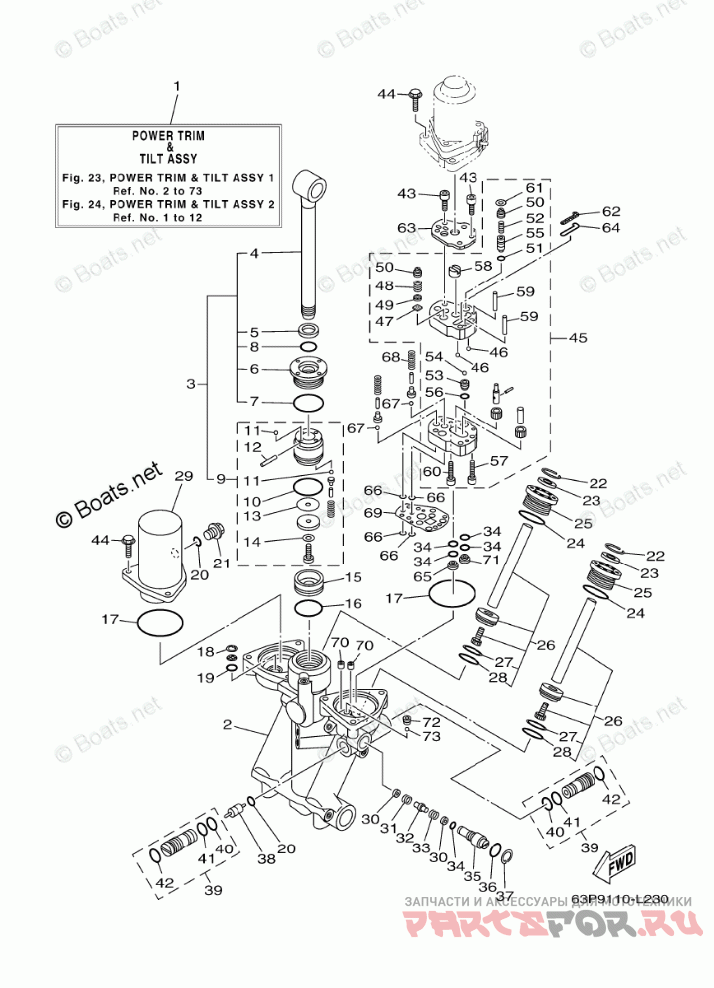

Power Trim Tilt Assy 1

Yamaha LF150TXR

Yamaha
#oem кодцена
1
63P-43800-10-00
POWER TRIM & TILT ASSY
2
63P-4380L-10-00
HOUSING, TRIM & TILT SUB ASSY
3
63P-43810-10-00
TILT PISTON SUB ASSY
4
63P-43801-10-00
ROD
5
93106-19N50-00
OIL SEAL
6
63P-43811-10-00
SCREW, CYLINDER END
7
6H1-43861-00-00
O-RING
8
63P-43863-10-00
O-RING
9
63P-4380P-10-00
PISTON SUB ASSY
10
6H1-43862-00-00
O-RING
11
93505-32038-00
BALL
12
91609-16012-00
PIN, SPRING
13
35R-22435-A0-00
PLATE, VALVE 2
14
92902-06200-00
WASHER
15
63P-43814-10-00
PISTON, FREE
16
6H1-43862-00-00
O-RING
17
93210-68N50-00
O-RING
18
63P-43876-10-00
RING, SNAP
19
93210-11N52-00
O-RING
20
93210-09165-00
O-RING
21
63P-43829-10-00
PLUG, RESERVOIR
22
63P-43875-10-00
RING, SNAP
23
6H1-43822-10-00
SEAL, TRIM DUST
24
63P-43862-10-00
O-RING
25
63P-43821-10-00
SCREW, TRIM CYLINDER END
26
63P-43820-10-00
TRIM PISTON SUB ASSY
27
62X-43871-00-00
RING, BACK UP
28
93210-29375-00
O-RING
29
63P-43828-10-00
BODY, RESERVOIR
30
63P-43847-10-00
SEAT, MANUAL VALVE
31
63P-43854-10-00
SPRING, MANUAL RELEASE
32
63P-4382A-10-00
ADAPTOR 1
33
63P-4384H-10-00
SPRING
34
69J-4389J-00-00
O-RING
35
63P-43845-10-00
SCREW, MANUAL RELEASE
36
93210-18397-00
O-RING
37
6H1-43875-00-00
RING, SNAP
38
6H1-43841-11-00
PISTON, SHUTTLE
39
63P-43802-10-00
VALVE SUB ASSY
40
93210-12N52-00
O-RING
41
93210-10M74-00
O-RING
42
6H1-43866-01-00
O-RING
43
91318-05040-00
BOLT
44
97595-06625-00
BOLT, WITH WASHER
45
63P-43830-10-00
GEAR PUMP ASSY
46
93503-16003-00
BALL
47
6H1-4384G-11-00
SEAL, RELIEF VALVE
48
6H1-43856-10-00
SPRING, DOWN RELIEF
49
6H1-43844-10-00
PIN, VALVE SUPPORT
50
63P-43843-10-00
SCREW, VALVE LOCK
51
93210-064A5-00
O-RING
52
69J-43855-00-00
SPRING, UP RELIEF
53
63P-43851-10-00
SEAT, RELIEF VALVE
54
93501-08001-00
BALL
55
6CJ-43844-00-00
PIN, VALVE SUPPORT
56
93210-07N51-00
O-RING
57
91318-04025-00
BOLT
58
69J-43831-00-00
CONNECTOR, SHAFT
59
93604-29184-00
PIN, DOWEL
60
91318-05025-00
BOLT
61
63P-43338-10-00
WASHER, WAVE
62
6CJ-43816-00-00
FILTER 1
63
63P-4381J-10-00
PLATE
64
62Y-43871-00-00
RING, BACK UP
65
69J-43899-01-00
PLATE STOPPER
66
93210-064A5-00
O-RING
67
93501-08001-00
BALL
68
63P-4385H-10-00
SPRING, SEAL
69
63P-4384G-10-00
SEAL, RELIEF VALVE
70
63P-4388H-10-00
PLUG
71
63P-43899-10-00
PLATE STOPPER
72
61A-43878-00-00
BOLT, SOCKET
73
93505-32038-00
BALL
