Запчасти планового ремонта

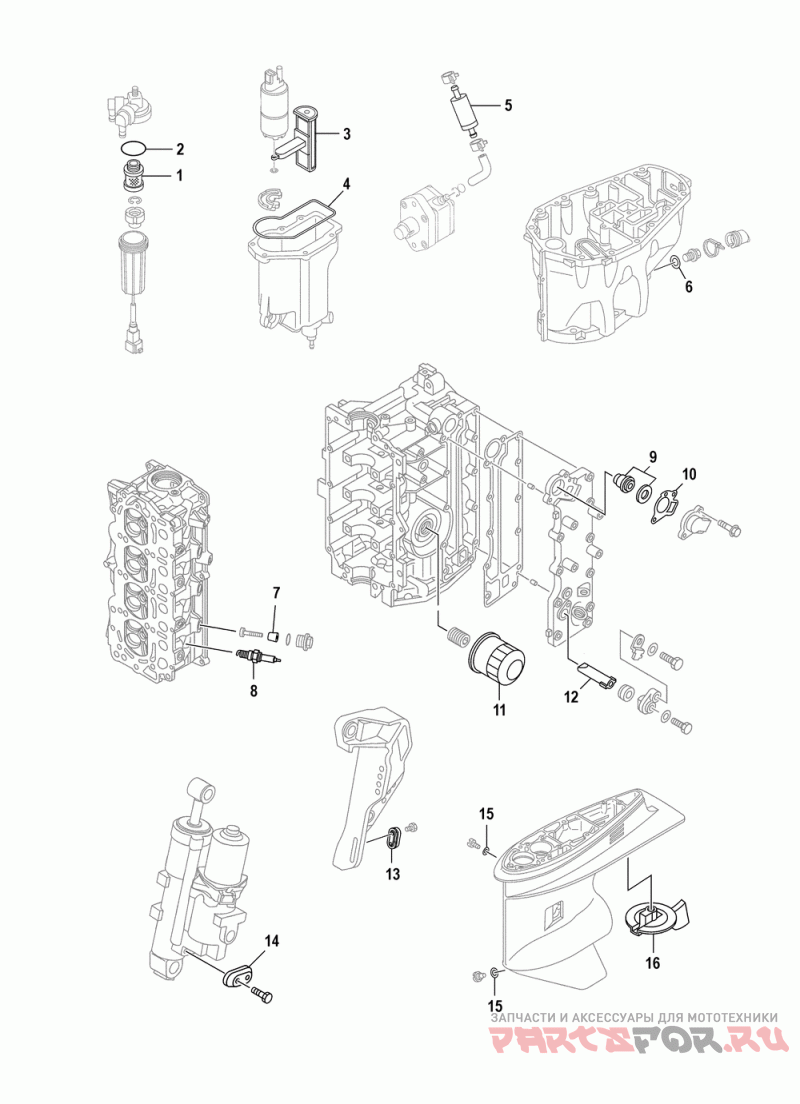

Yamaha F70LA

Yamaha
#oem кодцена
1
6D8-WS24A-00-00
Element, Filter (wit Fuel 1 (ref # 16)
2
6D8-24564-00-00
Gasket Fuel 1 (ref # 17)
3
6C5-13915-00-00
Filter Fuel Injection Pump 1 (ref # 18)
4
6C5-14984-00-00
Gasket, Float Chambe Fuel Injection Pump 1 (ref # 23)
5
6C5-24251-00-00
Strainer 1 Fuel Injection Pump 2 (ref # 20)
6
90430-14M09-00
Gasket Oil Pan (ref # 7)
7
6G8-11325-00-00
Anode Cylinder Crankcase 2 (ref # 4)
8
LKR-7E000-00-00
Lkr7e Ngk Splug 10 P (ngk Lkr7e) Cylinder Crankcase 2 (ref # 28) (10 Per Pack)
9
66M-12411-01-00
Thermostat Cylinder Crankcase 1 (ref # 12)
10
62Y-12414-00-00
Gasket, Cover Cylinder Crankcase 1 (ref # 15)
11
5GH-13440-20-00
Element Assy, Oil Cl Cylinder Crankcase 1 (ref # 30)
12
62Y-11325-00-00
Anode Cylinder Crankcase 1 (ref # 18)
13
65W-45251-00-00
Anode Bracket 1 (ref # 5 & 7)
14
65W-45251-00-00
Anode Bracket 1 (ref # 24)
15
90430-08020-00
Gasket Lower Casing Drive 1 (ref # 11) (10 Per Pack)
16
688-45371-02-00
Tab-trim Lower Casing Drive 2 (ref # 13)
