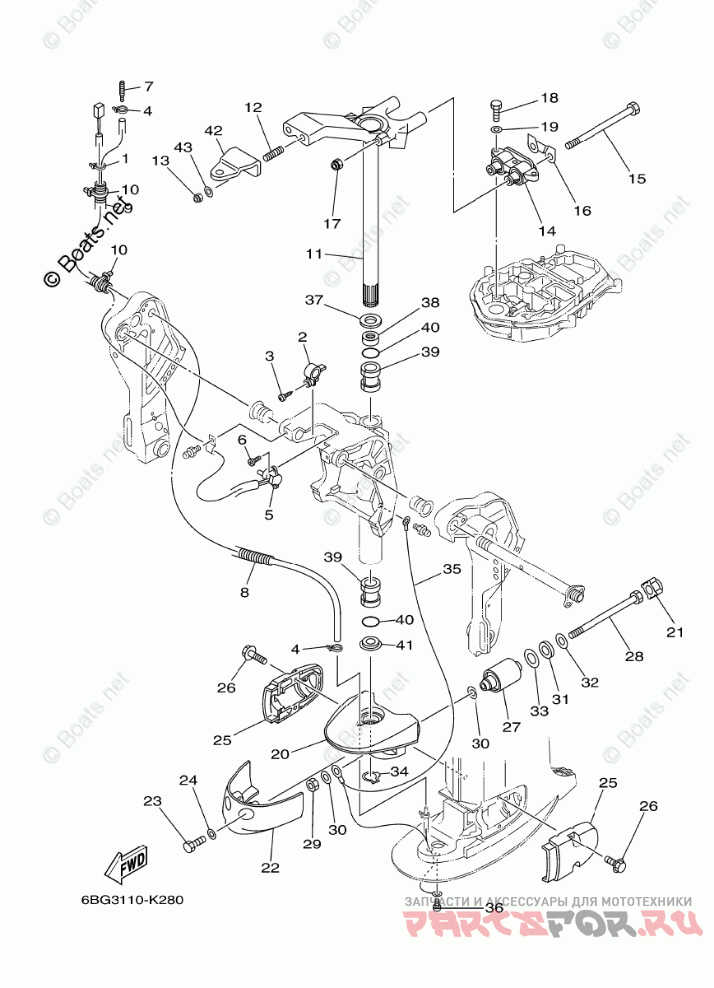

Bracket 3

Yamaha F40LA

Yamaha
#oem кодцена
1
90465-11M10-00
CLAMP
2
6K9-43139-01-00
CAM, TRIM SENDER
3
97780-60525-00
SCREW, TAPPING
4
90465-11M10-00
CLAMP
5
67H-83672-01-00
TRIM SENDER
6
97885-06016-00
SCREW, PAN HEAD
7
6E5-83558-00-00
END, NIPPLE
8
6BG-44385-10-00
HOSE, WATER 1
9
90447-19014-00
TUBE
10
90465-13M18-00
CLAMP
11
6BG-42510-10-8D
STEERING BRACKET ASSY
12
90116-10M28-00
BOLT, STUD
13
90185-10051-00
NUT, SELF-LOCKING
14
67C-44514-10-94
MOUNT DAMPER, UPPER SIDE
15
90101-08M15-00
BOLT
16
66T-44526-30-00
PLATE
17
90185-08045-00
NUT, SELF-LOCKING
18
97075-08030-00
BOLT
19
92995-08600-00
WASHER
20
67C-44551-10-8D
HOUSING, LOWER MOUNT RUBBER 1
21
69W-44575-00-00
DAMPER, LOWER MOUNT RUBBER
22
67C-44553-00-8D
COVER, LOWER MOUNT
23
97095-08020-00
BOLT
24
92995-08600-00
WASHER
25
6C5-44552-00-8D
HOUSING, LOWER MOUNT RUBBER 2
26
90119-08131-00
BOLT, WITH WASHER
27
67C-44555-11-00
MOUNT DAMPER, LOWER SIDE
28
90109-12MA3-00
BOLT
29
95380-12700-00
NUT
30
90201-12M16-00
WASHER, PLATE
31
90202-21100-00
WASHER, PLATE
32
90201-13M19-00
WASHER, PLATE
33
90201-22M05-00
WASHER, PLATE
34
93410-28M06-00
CIRCLIP
35
67C-82127-10-00
WIRE, LEAD 2
36
97885-06008-00
SCREW, PAN HEAD
37
90201-30M00-00
WASHER, PLATE
38
90386-30M78-00
BUSH
39
90386-30M77-00
BUSH
40
93210-29M94-00
O-RING
41
90386-30M60-00
BUSH
42
65W-48511-10-00
HOOK, STEERING
43
90201-10120-00
WASHER, PLATE
