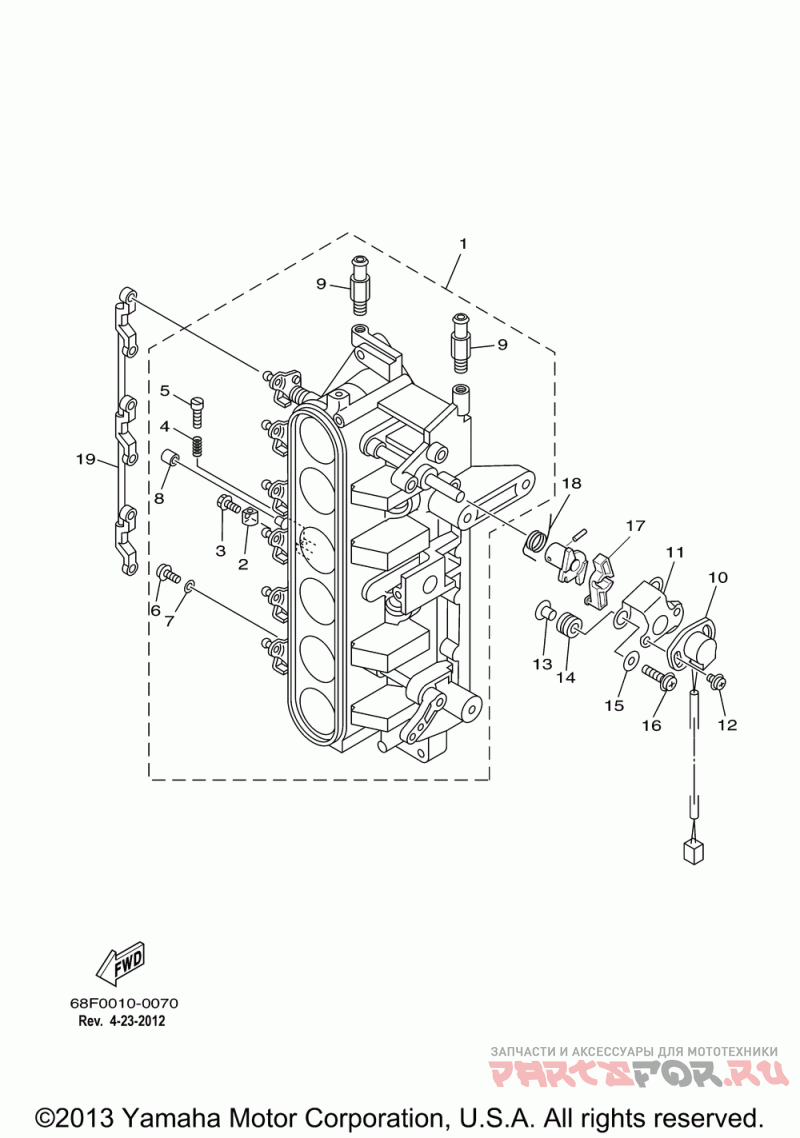

Vapor separator 2

Yamaha VZ200TLRZ/VZ175TLRZ/VZ150TLRZ

Yamaha
#oem кодцена
1
68F-13751-01-00
Body, Throttle 1 (vz)
2
65L-14527-00-00
Plate (vz)
3
65L-14565-00-00
Screw, Stop (vz)
4
65L-14334-00-00
Spring, Air Adj (vz)
5
65L-14523-00-00
Screw, Stop (vz)
6
6K5-14592-00-00
Screw (vz)
7
90201-05552-00
Washer, Plate (vz)
8
65L-14578-00-00
Collar (vz)
9
68F-13568-00-00
Stud (vz)
10
6X2-85885-10-00
Throttle Sensor Assy (vz)
11
6K7-85886-01-00
Bracket (vz)
12
97985-05212-00
Screw, Pan Head W/w (vz)
13
90387-05M00-00
Collar (6k7) (vz)
14
90480-10M23-00
Grommet (6k7) (vz)
15
65L-14596-00-00
Washer (vz)
16
97985-05330-00
Screw, Pan Head W/w (vz) (5 Per Pack)
17
65L-14579-00-00
Spring (vz)
17
65L-14573-00-00
Lever (vz)
19
65L-41217-00-00
Rod, Accel.lever (vz)
