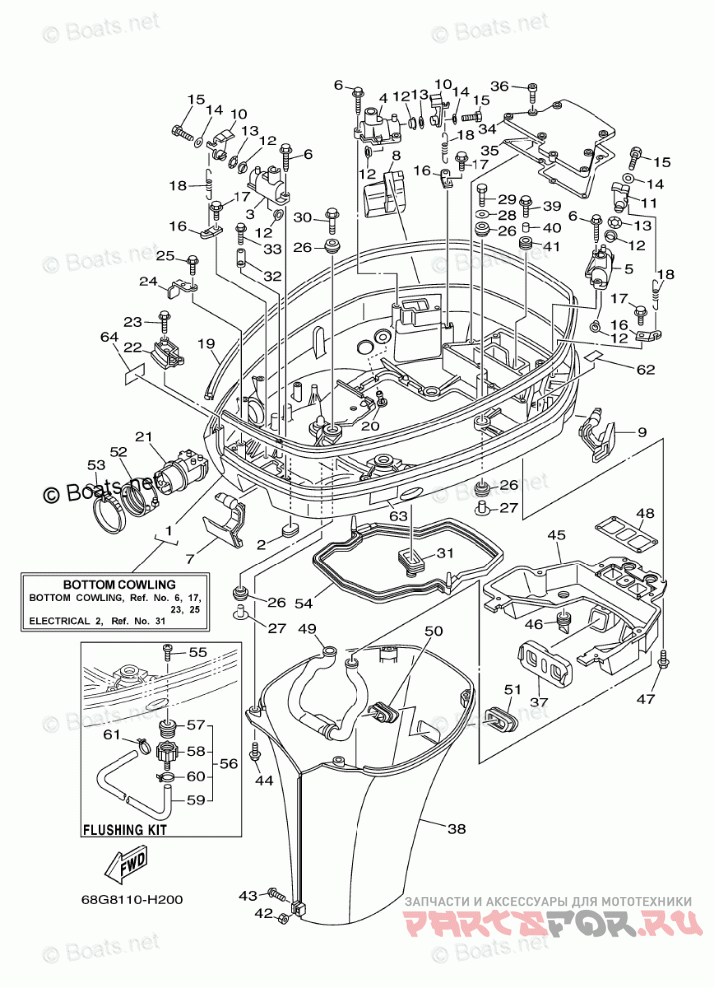

Bottom Cowling

Yamaha LZ200TXR

Yamaha
#oem кодцена
1
68F-42710-20-8D
BOTTOM COWLING ASSY
2
64G-42727-00-00
GROMMET
3
68F-42828-03-8D
PLATE, CLAMP
4
68F-42828-20-8D
PLATE, CLAMP
5
68F-42828-10-8D
PLATE, CLAMP
6
90109-06M82-00
BOLT
7
68F-42815-00-8D
LEVER, CLAMP
8
68F-42816-00-8D
LEVER, CLAMP
9
68F-42817-00-8D
LEVER, CLAMP
10
68F-42818-01-00
LEVER, CLAMP
11
6D8-42818-00-00
LEVER, CLAMP
12
90386-15M73-00
BUSH
13
90206-15M18-00
WASHER, WAVE
14
90201-06068-00
WASHER, PLATE
15
97095-06016-00
BOLT
16
64D-43144-00-00
HOOK, SPRING
17
90109-06M80-00
BOLT
18
90506-16M34-00
SPRING, TENSION
19
68F-42615-00-00
SEAL
20
6E5-44391-00-00
NIPPLE, HOSE
21
68F-42725-01-00
GROMMET
22
68F-42738-00-8D
PLATE, FITTING
23
90109-06M86-00
BOLT
24
64D-42738-10-00
PLATE, FITTING
25
90109-06M80-00
BOLT
26
90480-22M81-00
GROMMET
27
90387-08M37-00
COLLAR
28
90201-08M54-00
WASHER, PLATE
29
97075-08035-00
BOLT
30
90119-08M22-00
BOLT, WITH WASHER
31
688-42726-10-00
GROMMET
32
6E5-82588-00-00
PLATE
33
95895-06020-00
BOLT, FLANGE
34
68F-42723-00-1S
COVER, BOTTOM
35
68F-42721-00-00
GASKET 1
36
90110-06038-00
BOLT, HEXAGON SOCKET HEAD
37
68F-42769-00-00
SEAL, RUBBER
38
68F-42741-10-8D
APRON
39
90119-06077-00
BOLT, WITH WASHER
40
90387-06M43-00
COLLAR
41
90480-13M24-00
GROMMET
42
95380-06600-00
NUT, HEXAGON
43
90159-06M03-00
SCREW, WITH WASHER
44
95895-06016-00
BOLT, FLANGE
45
68F-42771-00-00
APRON
46
61A-42717-00-00
RUBBER, SEAL 2
47
95895-06016-00
BOLT, FLANGE
48
68F-42722-00-00
GASKET 2
49
68F-12577-10-00
HOSE 2
50
68F-12582-10-00
JOINT, HOSE 2
51
68F-42718-00-00
RUBBER, SEAL 3
52
68F-42753-00-00
FASTNER
53
90464-20258-00
CLAMP
54
6E5-42716-10-00
RUBBER, SEAL 1
55
90169-05M00-00
SCREW, TRUSS HEAD TAPPING
56
6R3-Y125J-70-00
FLUSHING KIT
57
6R3-12572-00-00
ADAPTER
58
6R3-12580-00-00
JOINT ASSY
59
90445-11M35-00
HOSE (L540)
60
90465-11M10-00
CLAMP
61
90465-11M10-00
CLAMP
62
68F-42791-01-00
MARK 1
63
6AH-42794-40-00
LABEL, WARNING (GENERAL)
64
6AH-81996-00-00
MARK
