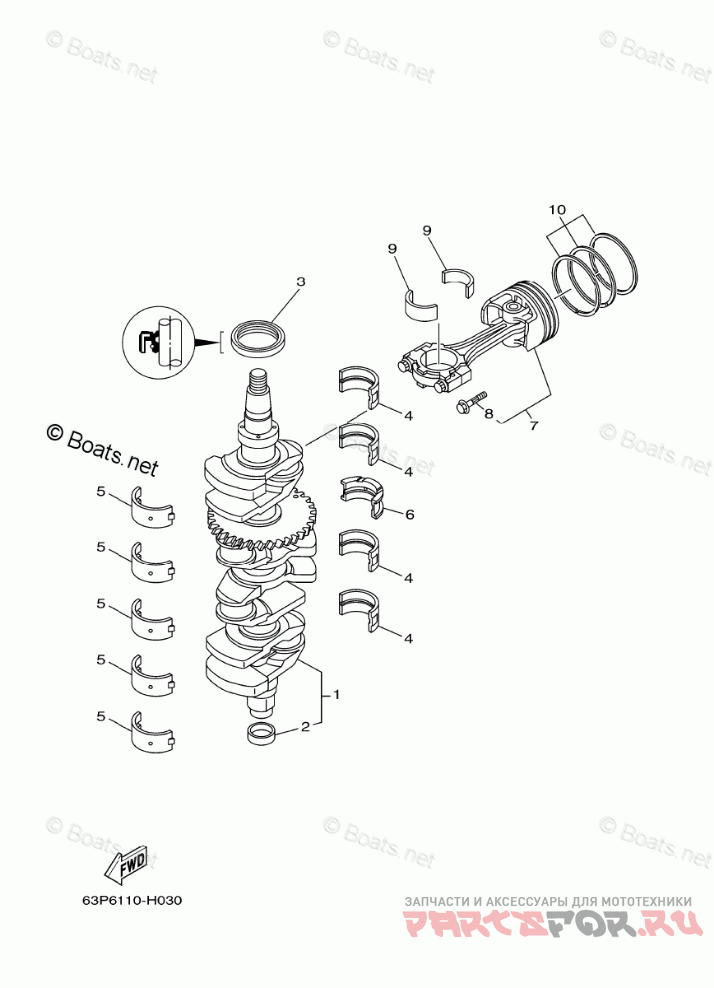

Crankshaft Piston

Yamaha LF150TXR

Yamaha
#oem кодцена
1
63P-11410-02-00
Деталь CRANKSHAFT
2
69J-11478-00-00
Деталь COLLAR
3
93102-60004-00
Деталь OIL SEAL
4
63P-11416-22-00
Деталь PLANE BEARING, CRANKSHAFT 1
4
63P-11416-02-00
Деталь PLANE BEARING, CRANKSHAFT 1
4
63P-11416-12-00
Деталь PLANE BEARING, CRANKSHAFT 1
5
63P-11417-12-00
Деталь PLANE BEARING, CRANKSHAFT 2
5
63P-11417-22-00
Деталь PLANE BEARING, CRANKSHAFT 2
5
63P-11417-32-00
Деталь PLANE BEARING, CRANKSHAFT 2
5
63P-11417-02-00
Деталь PLANE BEARING, CRANKSHAFT 2
6
63P-11426-20-00
Деталь BEARING, THRUST 1
6
63P-11426-00-00
Деталь BEARING, THRUST 1
6
63P-11426-10-00
Деталь BEARING, THRUST 1
7
63P-W1164-01-00
Деталь PISTON/CONROD ASSY(STD)
7
63P-W1164-10-00
Деталь PISTON/CON-ROD ASSY(0.25MM OS)
8
63P-11654-00-00
Деталь BOLT, CONNECTING ROD
9
63P-11656-01-00
Деталь PLANE BEARING, CONNECTING ROD
9
63P-11656-11-00
Деталь PLANE BEARING, CONNECTING ROD
9
63P-11656-21-00
Деталь PLANE BEARING, CONNECTING ROD
10
63P-11603-01-00
Деталь PISTON RING SET (STD)
10
63P-11604-00-00
Деталь PISTON RING SET (0.25MM O/S)
