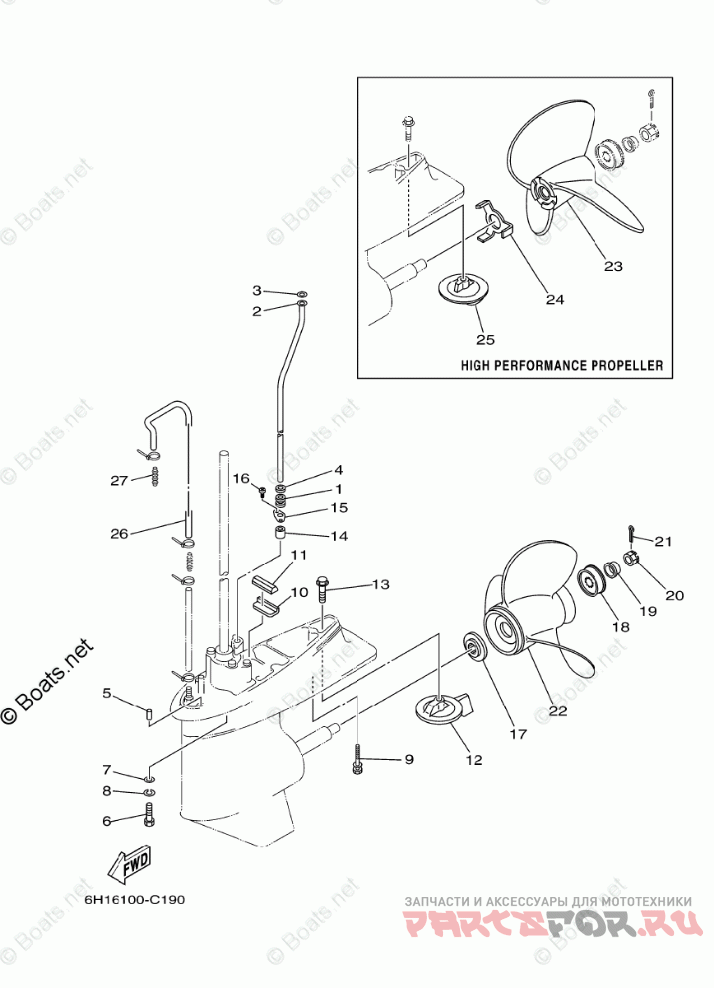

Lower Casing Drive 2

Yamaha 90TLR

Yamaha
#oem кодцена
1
663-44367-00-00
DAMPER, WATER SEAL 3
2
688-44361-10-00
TUBE, WATER
3
90202-12060-00
WASHER, PLATE
4
90430-12072-00
GASKET
5
93606-12019-00
PIN, DOWEL
6
90101-10037-00
BOLT
7
90201-10048-00
WASHER, PLATE
8
90204-10001-00
WASHER, SPRING
9
90119-08M84-00
BOLT, WITH WASHER
10
663-45376-00-94
GUIDE, SEAL DAMPER
11
688-45375-00-00
DAMPER, SEAL
12
688-45371-02-00
TAB-TRIM
13
90105-10M67-00
BOLT, FLANGE
14
663-44366-00-00
DAMPER, WATER SEAL 2
15
90480-19M06-00
GROMMET
16
90160-04006-00
SCREW, ROUND TAPPING
17
688-45987-01-00
SPACER 1
18
67F-45997-00-00
SPACER 2
19
90389-25M00-00
BUSH
20
90171-16011-00
NUT, CASTLE
21
91490-40025-00
PIN. COTTER
22
688-45976-01-98
PROPELLER (3X13"X25"-K)
22
688-45930-02-98
PROPELLER (3X13"X17"-K)
22
688-45932-60-98
PROPELLER (3X13-1/2"X14"-K)
22
688-45970-03-98
PROPELLER (3X13"X19"-K)
22
688-45972-02-98
PROPELLER (3X13"X21"-K)
22
688-45974-02-98
PROPELLER (3X13"X23"-K)
22
6E5-45954-00-EL
PROPELLER (3X14"X11"-K)
22
688-45978-60-98
PROPELLER (3X13-1/2"X16"-K)
22
6E5-45952-00-EL
PROPELLER (3X13"X23"-K)
22
6E5-45941-00-EL
PROPELLER (3X13"X19"-K)
22
6E5-45943-00-EL
PROPELLER (3X12-5/8"X21"-K)
22
6E5-45945-01-EL
PROPELLER (3X13-1/4"X17"-K)
22
6E5-45947-00-EL
PROPELLER (3X13-1/2"X15"-K)
22
6E5-45949-00-EL
PROPELLER (3X13-5/8"X13"-K)
22
6E5-45956-00-EL
PROPELLER (3X13"X25"-K)
23
6E5-45978-10-00
PROPELLER (3X14"X26"-P)
23
6E5-45970-10-00
PROPELLER (3X14"X20"-P)
23
6E5-45972-10-00
PROPELLER (3X14"X24"-P)
23
6E5-45974-10-00
PROPELLER (3X14"X28"-P)
23
6E5-45976-10-00
PROPELLER (3X14"X22"-P)
24
6E5-45994-10-00
PLATE, TOOTH
25
6E5-45371-10-00
TAB-TRIM
26
90445-07MF1-00
HOSE (L570)
27
6E5-83558-00-00
END, NIPPLE
