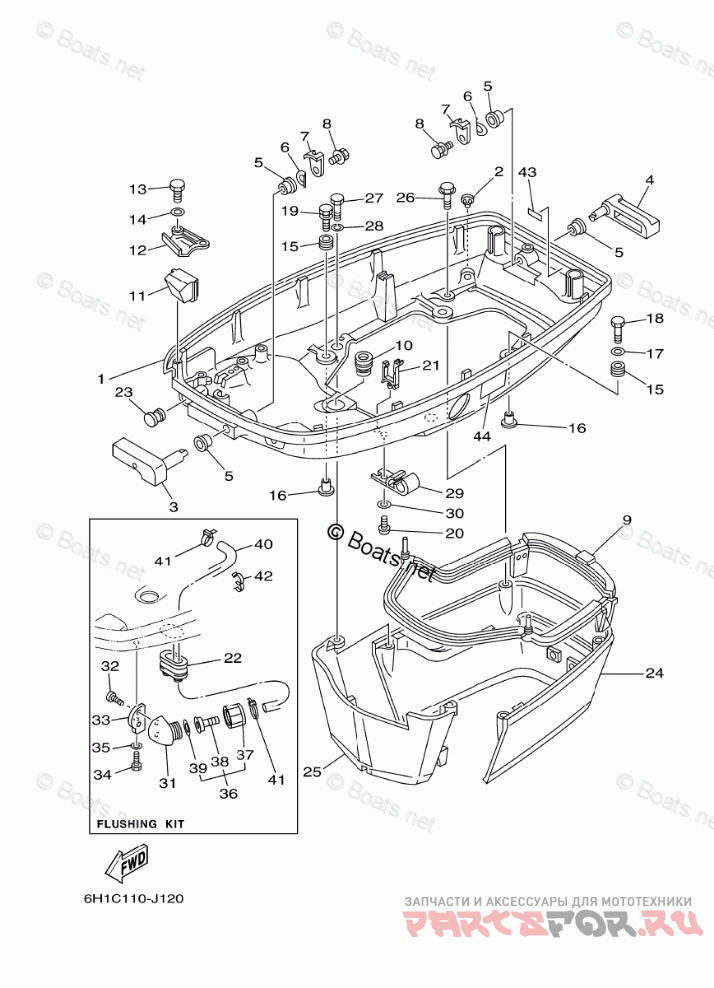

Bottom Cowling

Yamaha 90TLR

Yamaha
#oem кодцена
1
6H1-42711-10-8D
COWLING, BOTTOM 1
2
6BL-44391-00-00
NIPPLE, HOSE
3
688-42815-01-8D
LEVER, CLAMP
4
688-42817-01-8D
LEVER, CLAMP
5
90386-13M38-00
BUSH
6
90206-13019-00
WASHER, WAVE
7
688-42816-00-00
LEVER, CLAMP
8
90119-06M09-00
BOLT, WITH WASHER
9
688-42716-02-00
RUBBER, SEAL 1
10
663-42724-00-00
GROMMET
11
688-42725-20-00
GROMMET
12
688-42738-01-8D
PLATE, FITTING
13
97095-06016-00
BOLT
14
92995-06600-00
WASHER
15
6BG-42748-00-00
GROMMET
16
90387-06M69-00
COLLAR
17
90201-06416-00
WASHER, PLATE
18
97095-06030-00
BOLT
19
90119-06M61-00
BOLT, WITH WASHER
20
90157-06M01-00
SCREW, PAN HEAD
21
90464-15M08-00
CLAMP
22
6H1-42726-21-00
GROMMET
23
6G1-42748-00-00
GROMMET
24
688-42741-01-8D
APRON
25
688-42771-01-8D
APRON
26
97595-06420-00
BOLT, WITH WASHER
27
97095-06030-00
BOLT
28
92995-06100-00
WASHER, SPRING
29
6E5-24367-01-00
CLAMP, FUEL PIPE 2
30
92990-06600-00
WASHER, PLATE
31
68T-12572-00-00
ADAPTER
32
90167-06002-00
SCREW, TAPPING
33
6H1-12535-00-00
PLATE
34
97095-06020-00
BOLT
35
92995-06600-00
WASHER
36
6R3-12580-00-00
JOINT ASSY
37
6R3-12581-00-00
JOINT, HOSE 1
38
6R3-12582-00-00
JOINT, HOSE 2
39
6R3-12583-00-00
GASKET, HOSE JOINT
40
6H1-24312-01-00
PIPE 2
41
90465-11M10-00
CLAMP
42
90464-09M31-00
CLAMP
43
6G5-42791-00-00
MARK 1
44
6AH-42794-40-00
LABEL, WARNING (GENERAL)
