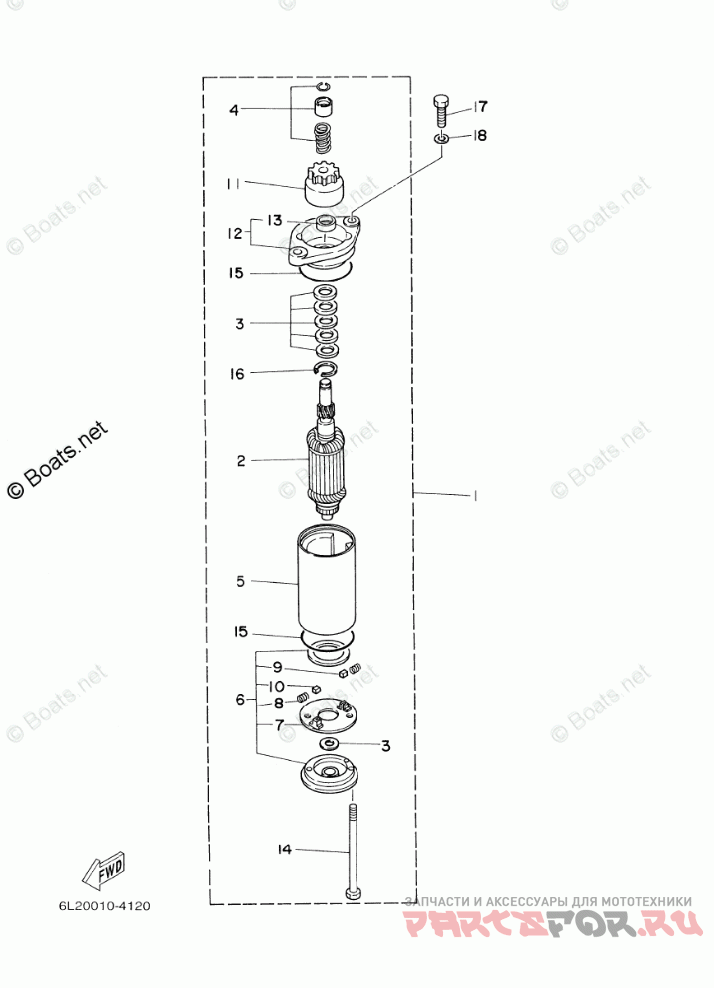

STARTING MOTOR

Yamaha 25ELR

Yamaha
#oem кодцена
1
6L2-81800-20-00
STARTING MOTOR ASSY
2
6L2-81850-20-00
ARMATURE ASSY
3
682-81809-10-00
WASHER KIT
4
6L2-81833-10-00
RING, STOP
5
682-81810-11-00
STATOR ASSY
6
6L2-81820-20-00
REAR BRACKET ASSY
7
6L2-81840-20-00
BRUSH HOLDER ASSY
8
682-81813-10-00
SPRING, BRUSH
9
6L2-81811-20-00
BRUSH 1
10
6L2-81812-20-00
BRUSH 2
11
682-81832-20-00
CLUTCH, OVER RUN
12
682-81830-11-00
FRONT BRACKET ASSY
13
682-81831-00-00
METAL, FRONT
14
682-81826-10-00
BOLT
15
682-81847-10-00
O-RING
16
682-81834-10-00
RING
17
97013-08025-00
BOLT
18
92903-08600-00
WASHER, PLATE
