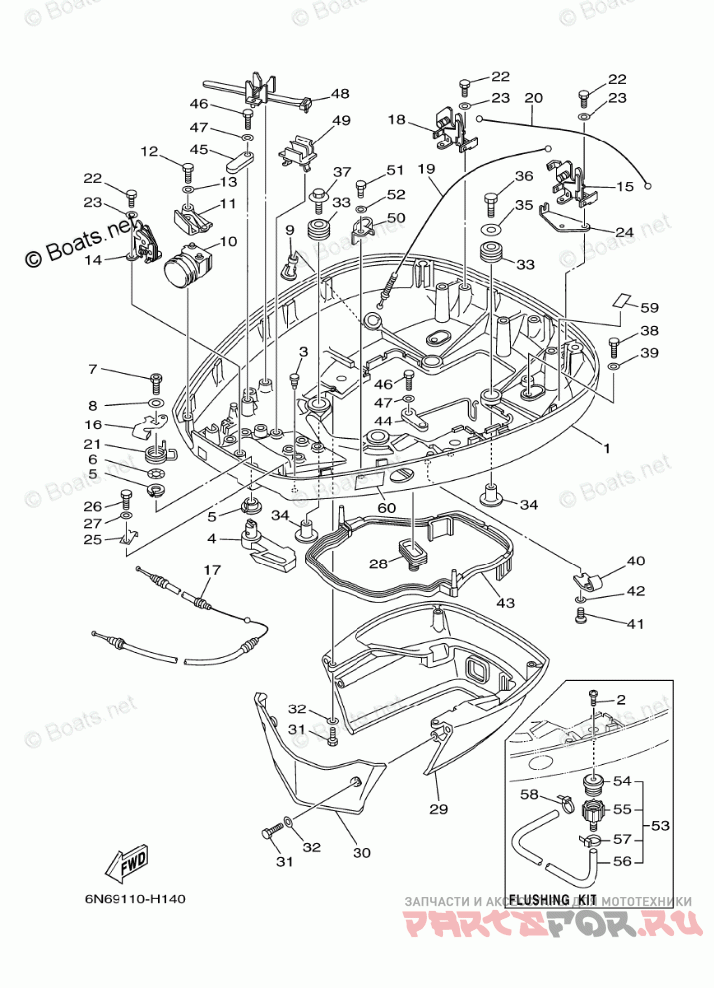

Bottom Cowling

Yamaha 115TLR

Yamaha
#oem кодцена
1
6N7-42711-43-8D
COWLING, BOTTOM 1
2
90169-05M00-00
SCREW, TRUSS HEAD TAPPING
3
6H4-42748-00-00
GROMMET
4
6N7-42815-01-8D
LEVER, CLAMP
5
90386-13M88-00
BUSH
6
90206-13M10-00
WASHER, WAVE
7
90109-08M45-00
BOLT
8
92990-08200-00
WASHER, PLAIN
9
6E5-44391-00-00
NIPPLE, HOSE
10
6N7-42725-30-00
GROMMET
11
6N7-42738-02-5B
PLATE, FITTING
12
97095-06016-00
BOLT
13
92995-06600-00
WASHER
14
6R3-42824-00-00
BASE, CLAMP LEVER
15
6R3-42811-01-00
STAY
16
6R3-42816-00-00
LEVER, CLAMP
17
6N7-42850-00-00
WIRE COMPLETE
18
6R3-42811-10-00
STAY
19
6N7-42850-10-00
WIRE COMPLETE
20
6N7-42850-20-00
WIRE COMPLETE
21
6R3-42813-00-00
SPRING, CLAMP LEVER
22
97095-06016-00
BOLT
23
92995-06600-00
WASHER
24
6N7-42828-00-00
PLATE, CLAMP
25
6R3-42828-00-00
PLATE, CLAMP
26
97095-06010-00
BOLT
27
92995-06600-00
WASHER
28
688-42726-10-00
GROMMET
29
6N7-42741-01-8D
APRON
30
6R3-42771-01-8D
APRON
31
97095-06020-00
BOLT
32
92995-06600-00
WASHER
33
90480-22M15-00
GROMMET
34
90387-08M37-00
COLLAR
35
90201-08M54-00
WASHER, PLATE
36
97075-08035-00
BOLT
37
90119-08M22-00
BOLT, WITH WASHER
38
97095-06020-00
BOLT
39
92995-06600-00
WASHER
40
6E5-24367-10-00
CLAMP, FUEL PIPE 2
41
90157-06M01-00
SCREW, PAN HEAD
42
92990-06600-00
WASHER, PLATE
43
6E5-42716-00-00
RUBBER, SEAL 1
44
6K7-82588-00-00
PLATE
45
6E5-82588-00-00
PLATE
46
97095-06020-00
BOLT
47
92995-06600-00
WASHER
48
688-82594-00-00
CLAMP
49
6E5-82594-00-00
CLAMP
50
90465-12M25-00
CLAMP
51
97095-06012-00
BOLT
52
92995-06600-00
WASHER
53
6R3-Y125J-70-00
FLUSHING KIT
54
6R3-12572-00-00
ADAPTER
55
6R3-12580-00-00
JOINT ASSY
56
90445-11M35-00
HOSE (L540)
57
90465-11M10-00
CLAMP
58
90465-11M10-00
CLAMP
59
6G5-42791-10-00
MARK 1
60
6AH-42794-40-00
LABEL, WARNING (GENERAL)
