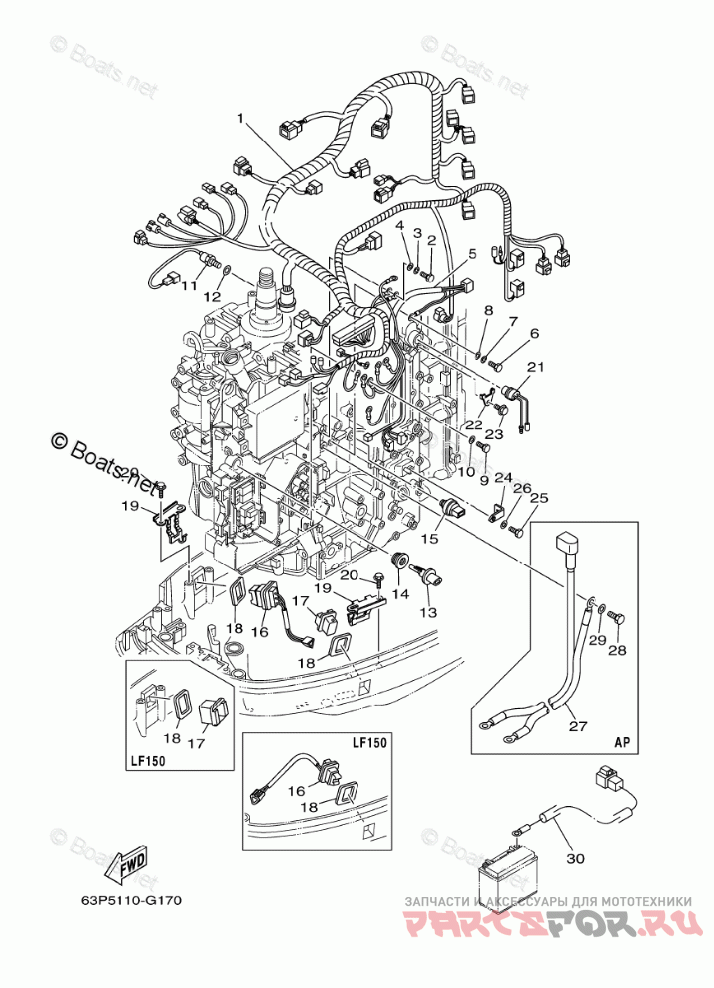

Electrical 3

Yamaha F150TXR

Yamaha
#oem кодцена
1
63P-82590-30-00
WIRE HARNESS ASSY
2
97095-06020-00
BOLT
3
92995-06100-00
WASHER, SPRING
4
92995-06600-00
WASHER
5
63P-8259M-00-00
WIRE HARNESS ASSY 2
6
97095-06020-00
BOLT
7
92995-06100-00
WASHER, SPRING
8
92995-06600-00
WASHER
9
97095-06012-00
BOLT
10
92995-06600-00
WASHER
11
61A-85790-00-00
THERMOSENSOR ASSY
12
92990-10600-00
WASHER, PLATE
13
63P-85886-00-00
SENSOR, AIR TEMPERATURE
14
63P-14435-00-00
GROMMET
15
69J-83651-01-00
SENDER, OIL PRESSURE
16
69J-82563-00-00
TRIM & TILT SWITCH ASSY
17
69J-42723-00-8D
COVER, BOTTOM
18
69J-82587-00-00
GASKET
19
63P-83614-00-00
BRACKET
20
90109-06M86-00
BOLT
21
6P2-82560-01-00
THERMO SWITCH ASSY
22
6E9-82588-00-00
PLATE
23
90109-06M80-00
BOLT
24
63P-8366P-00-00
BRACKET 4
25
97095-06012-00
BOLT
26
92995-06600-00
WASHER
27
63P-82105-00-00
BATTERY CABLE
28
97095-08016-00
BOLT
29
92995-08600-00
WASHER
30
68F-81949-00-00
WIRE, LEAD (ISOLATOR CABLE)
