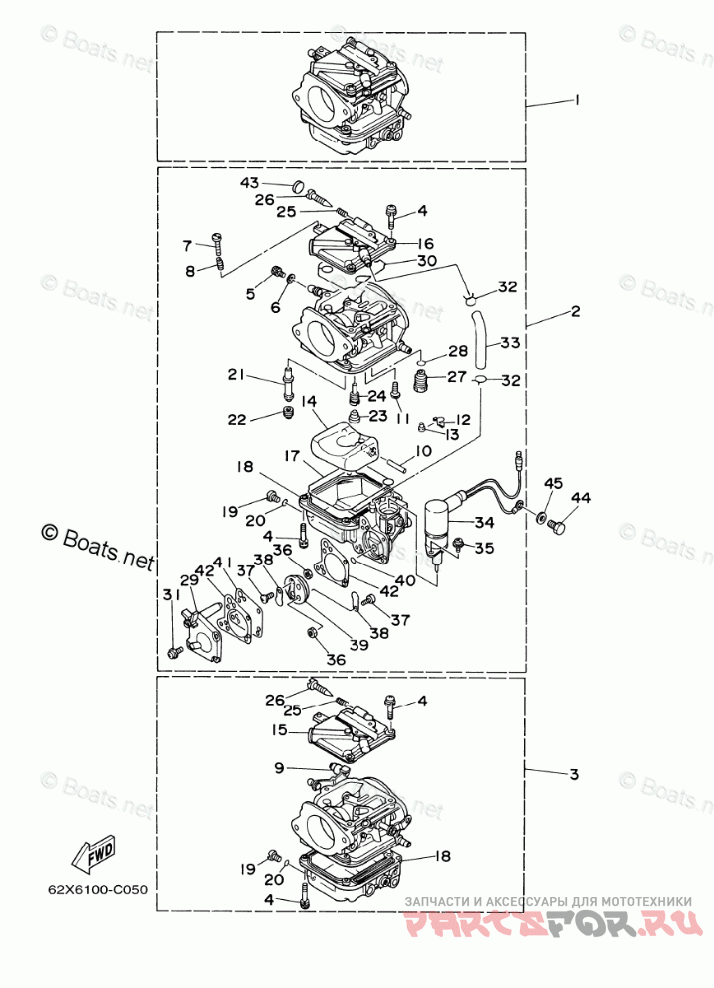

CARBURETOR

Yamaha 50TLR

Yamaha
#oem кодцена
1
62X-14301-10-00
CARBURETOR ASSY 1
2
62X-14302-10-00
CARBURETOR ASSY 2
3
62X-14303-10-00
CARBURETOR ASSY 3
4
97980-04114-00
SCREW, WITH WASHER
5
6K5-14592-00-00
SCREW
6
90201-05652-00
WASHER, PLATE
7
63V-14523-00-00
SCREW, STOP
8
90501-10326-00
SPRING, COMPRESSION
9
6H2-14578-00-00
COLLAR
10
6H4-14548-00-00
PIN, FLOAT ARM
11
98580-04008-00
SCREW, PAN HEAD
12
663-14159-00-00
CLIP
13
676-14186-00-00
PIN, FLOAT
14
6H4-14985-01-00
FLOAT
15
6H4-14146-30-00
PLATE
16
6H3-14146-20-00
PLATE
17
6H4-14984-00-00
GASKET, FLOAT CHAMBER
18
6H4-14980-00-00
BODY, FLOAT CHAMBER
18
6H3-14980-10-00
BODY, FLOAT CHAMBER
19
6H3-14992-00-00
SCREW, DRAIN
20
93210-04230-00
O-RING
21
62X-14947-00-00
JET, NEEDLE
22
676-14943-33-00
JET, MAIN (#130)
23
676-14966-00-00
CAP
24
6H4-14948-12-00
JET (#62)
25
679-14555-00-00
SPRING
26
692-14923-00-00
SCREW, PILOT
27
6H4-14590-01-00
NEEDLE VALVE ASSY
28
93210-04228-00
O-RING
29
6H3-24452-10-00
COVER
30
6H4-14147-00-00
O-RING
31
6H4-14567-00-00
SCREW
32
6H3-14137-00-00
CLIP
33
6H3-14349-00-00
PIPE
34
63D-14380-00-00
PRIME STARTER ASSY
35
97803-04010-00
SCREW, PAN HEAD
36
95380-03600-00
NUT
37
98980-03006-00
SCREW, BIND
38
6L5-24421-00-00
VALVE, CHECK
39
6H4-24413-00-00
BODY 2
40
6H4-24486-00-00
O-RING
41
6H3-24411-10-00
DIAPHRAGM
42
6H3-24434-10-00
GASKET, BODY
43
67C-1432A-00-00
PLUG
44
97013-06012-00
BOLT
45
92903-06600-00
WASHER, PLATE
