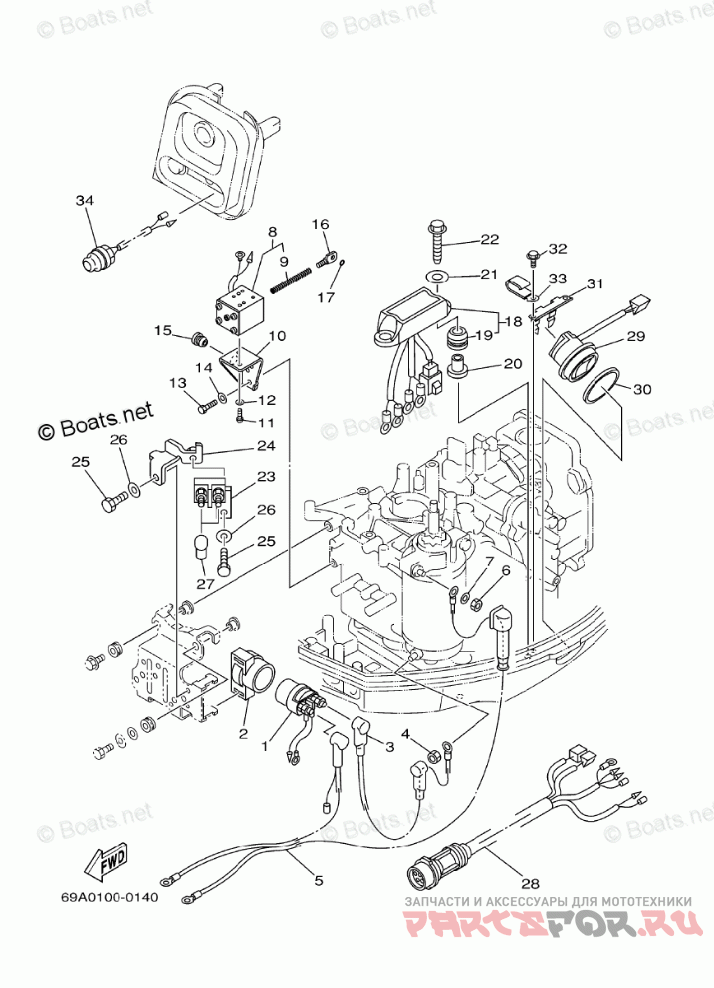

Electrical 2

Yamaha F15PLH

Yamaha
#oem кодцена
1
6G1-81941-10-00
STARTER RELAY ASSY
2
6G1-81952-00-00
HOLDER, RELAY
3
66M-82117-00-00
WIRE, LEAD
4
65W-8182B-00-00
NUT, SPECIAL
5
66M-82105-00-00
BATTERY CABLE
6
95380-08700-00
NUT
7
92990-08600-00
WASHER, PLATE
8
66M-86111-00-00
COIL, SOLENOID
9
66M-86116-00-00
WIRE, PULL
10
66M-86112-00-00
STAY, SOLENOID
11
97880-05008-00
SCREW, PAN HEAD
12
92990-05600-00
WASHER, PLATE
13
97095-06016-00
BOLT
14
92995-06600-00
WASHER
15
90480-10M13-00
GROMMET
16
66M-86117-00-00
HOOK, WIRE PULL
17
93210-03261-00
O-RING
18
69A-81950-00-00
RELAY ASSY
19
90480-09M12-00
GROMMET
20
90387-06M03-00
COLLAR
21
90201-06416-00
WASHER, PLATE
22
90109-06MA2-00
BOLT
23
6H5-81920-00-00
TERMINAL ASSY
24
69A-81929-00-00
BRACKET, TERMINAL
25
97095-06012-00
BOLT
26
92995-06600-00
WASHER
27
6G5-82119-00-00
COVER, LEAD WIRE
28
69A-82590-00-00
WIRE HARNESS ASSY (10P)
29
63D-82563-10-00
TRIM & TILT SWITCH ASSY
30
6E5-82587-00-00
GASKET
31
69A-83614-00-00
BRACKET
32
90109-06M86-00
BOLT
33
90465-06M88-00
CLAMP
34
65W-81870-00-00
STARTING SWITCH ASSY
