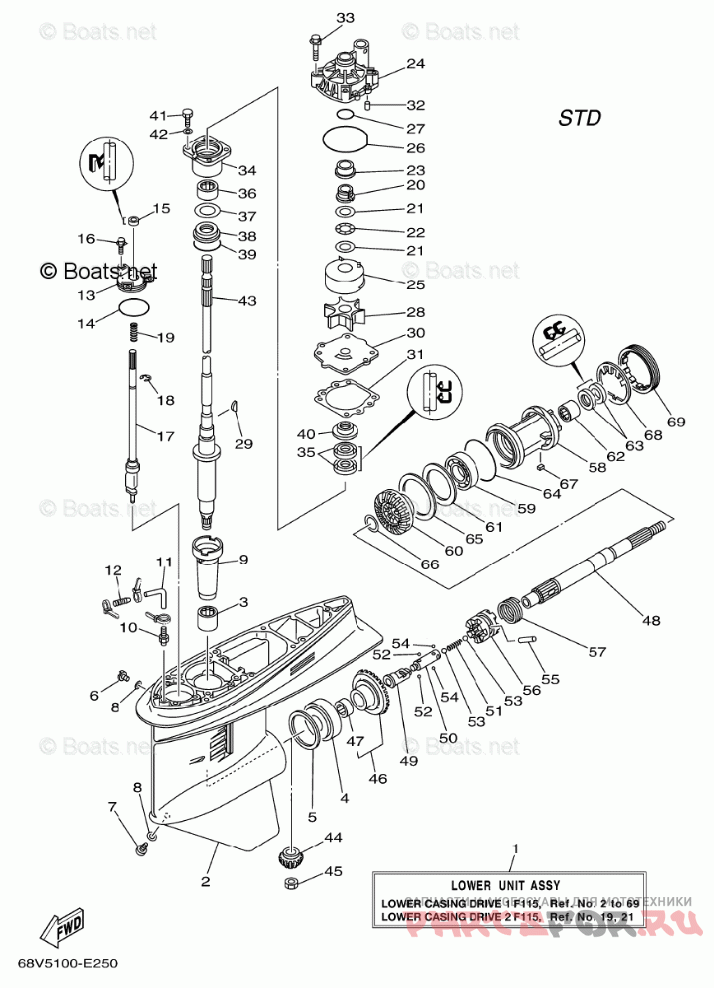

Lower Casing Drive 1 (F115)

Yamaha F115TJR

Yamaha
#oem кодцена
1
68V-45300-12-8D
LOWER UNIT ASSY
1
68V-45300-32-8D
LOWER UNIT ASSY
2
6E5-45301-05-8D
CASING, LOWER
3
93315-628U9-00
BEARING
4
93332-000U7-00
BEARING
5
6E5-45567-60-00
SHIM (T:0.50MM)
5
6E5-45567-10-00
SHIM (T:0.12MM)
5
6E5-45567-20-00
SHIM (T:0.15MM)
5
6E5-45567-30-00
SHIM (T:0.18MM)
5
6E5-45567-01-00
SHIM (T:0.10MM)
5
6E5-45567-40-00
SHIM (T:0.30MM)
5
6E5-45567-50-00
SHIM (T:0.40MM)
6
90340-08002-00
PLUG, STRAIGHT SCREW
7
688-45341-10-00
PLUG, DRAIN
8
90430-08020-00
GASKET
9
6E5-45536-00-00
SLEEVE, DRIVE SHAFT
10
6E5-45378-00-00
NIPPLE, HOSE
11
90445-07ME8-00
HOSE (L80)
11
90445-07ME9-00
HOSE (L120)
12
6E5-83558-10-00
END, NIPPLE
13
6E5-45321-00-00
PLATE
14
93210-58144-00
O-RING
15
93106-09014-00
OIL SEAL
16
90119-06M10-00
BOLT, WITH WASHER
17
6L6-44150-01-00
SHIFT CAM ASSY
18
99001-08600-00
CIRCLIP
19
90501-11M10-00
SPRING, COMPRESSION
20
61A-45538-00-00
SPACER 1
21
90201-22M01-00
WASHER, PLATE
22
90206-22M19-00
WASHER, WAVE
23
61A-45527-00-00
COLLAR, DRIVE SHAFT
24
61A-44311-01-00
HOUSING, WATER PUMP
25
61A-44322-02-00
INSERT, CARTRIDGE
26
93210-86M38-00
O-RING
27
93210-37160-00
O-RING
28
6E5-44352-01-00
IMPELLER
29
90280-04M05-00
KEY, WOODRUFF
30
68V-44323-00-00
OUTER PLATE, CARTRIDGE
31
6E5-44315-A0-00
GASKET, WATER PUMP
32
93606-12019-00
PIN, DOWEL
33
90119-08M14-00
BOLT, WITH WASHER
34
6E5-45331-00-94
HOUSING, BEARING
35
93101-28M16-00
OIL SEAL
36
93317-330U2-00
BEARING
37
6E5-45587-60-00
SHIM (T:0.50MM)
37
6E5-45587-50-00
SHIM (T:0.40MM)
37
6E5-45587-40-00
SHIM (T:0.30MM)
37
6E5-45587-30-00
SHIM (T:0.18MM)
37
6E5-45587-20-00
SHIM (T:0.15MM)
37
6E5-45587-10-00
SHIM (T:0.12MM)
37
6E5-45587-01-00
SHIM (T:0.10MM)
38
93341-930V2-00
BEARING
39
93210-55M14-00
O-RING
40
6E5-45344-00-00
COVER, OIL SEAL
41
97095-08025-00
BOLT
42
92995-08600-00
WASHER
43
68V-45501-10-00
DRIVE SHAFT COMP.
43
68V-45501-30-00
DRIVE SHAFT COMP.
44
68V-45551-00-00
PINION (13T)
45
90170-16M01-00
NUT
46
68V-45560-00-00
GEAR 1 (28T)
47
93315-425U7-00
BEARING
48
6E5-45611-01-00
SHAFT, PROPELLER
49
6K1-45641-01-00
SHIFTER
50
6E5-45634-01-00
SLIDE, SHIFT
51
90501-16M37-00
SPRING, COMPRESSION
52
93507-32009-00
BALL
53
93511-32017-00
BALL
54
93503-16003-00
BALL
55
90250-08M07-00
PIN, STRAIGHT
56
68V-45631-01-00
CLUTCH, DOG
57
6E5-45633-01-00
RING, CROSS PIN
58
6E5-45332-00-94
HOUSING, BEARING
59
93306-208U0-00
BEARING
60
68V-45571-00-00
GEAR 2 (28T)
61
6E5-45576-00-00
WASHER, THRUST 2
62
93315-430U8-00
BEARING
63
93101-30M17-00
OIL SEAL
64
93210-86M39-00
O-RING
65
6L6-45577-60-00
SHIM (T:0.50MM)
65
6L6-45577-50-00
SHIM (T:0.40MM)
65
6L6-45577-40-00
SHIM (T:0.30MM)
65
6L6-45577-30-00
SHIM (T:0.18MM)
65
6L6-45577-20-00
SHIM (T:0.15MM)
65
6L6-45577-10-00
SHIM (T:0.12MM)
65
6L6-45577-00-00
SHIM (T:0.10MM)
66
90201-30M92-00
WASHER, PLATE
67
90282-04010-00
KEY, STRAIGHT
68
688-45383-02-00
WASHER, CLAW
69
688-45384-00-00
NUT
