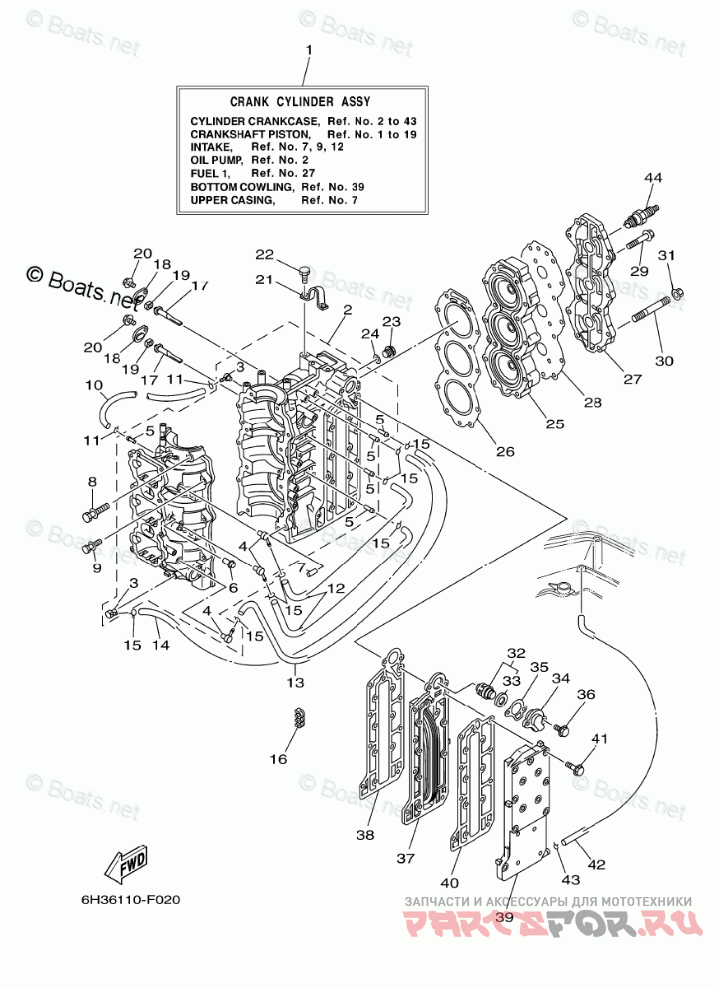

CYLINDER CRANKCASE

Yamaha 70TLR

Yamaha
#oem кодцена
1
6H3-W0090-44-1S
CRANK CYLINDER ASSY
2
6H3-15100-14-1S
CRANKCASE ASSY
3
688-11370-01-00
CHECK VALVE ASSY
4
650-11370-01-00
CHECK VALVE ASSY
5
624-14485-00-00
PIPE, JOINT
6
650-24378-00-00
PIPE, JOINT 4
7
93608-12063-00
PIN, DOWEL
8
90119-10005-00
BOLT, WITH WASHER
9
90119-08M64-00
BOLT, WITH WASHER
10
90445-07M44-00
HOSE (L250)
11
90467-06016-00
CLIP
12
90445-07M02-00
HOSE (L167)
13
90445-07M45-00
HOSE (L340)
14
90445-07M82-00
HOSE (L440)
15
90467-06016-00
CLIP
16
90464-07M05-00
CLAMP
17
6H3-11325-01-00
ANODE
18
6H3-11327-00-1S
COVER, ANODE
19
6H3-11328-00-00
GROMMET, ANODE
20
90119-06023-00
BOLT, WITH WASHER
21
688-11119-01-00
HANGER, ENGINE
22
90101-08002-00
BOLT
23
90340-14M00-00
PLUG, STRAIGHT SCREW
24
90430-14115-00
GASKET
25
6H3-11111-01-1S
HEAD, CYLINDER 1
26
6H3-11181-A1-00
GASKET, CYLINDER HEAD 1
27
6H3-11191-00-1S
COVER, CYLINDER HEAD 1
28
6H3-11193-A1-00
GASKET, HEAD COVER 1
29
90119-08MA5-00
BOLT, WITH WASHER
30
90116-08M69-00
BOLT, STUD
31
90179-08M34-00
NUT
32
6H3-12411-11-00
THERMOSTAT
33
688-12412-00-00
SEAL, THERMOSTAT
34
6H3-12413-00-1S
COVER, THERMOSTAT
35
6H3-12414-A1-00
GASKET, COVER
36
90119-06MA3-00
BOLT, WITH WASHER
37
6H3-41111-01-1S
INNER COVER, EXHAUST
38
6H3-41112-A0-00
GASKET, EXHAUST INNER COVER
39
6H3-41113-02-1S
OUTER COVER, EXHAUST
40
6H3-41114-A0-00
GASKET, EXHAUST OUTER COVER
41
90119-06MA5-00
BOLT, WITH WASHER
42
663-24312-01-00
PIPE 2
43
90467-08004-00
CLIP
44
NGK-BR8HS-10-00
PLUG, SPARK (NGK BR8HS-10)
