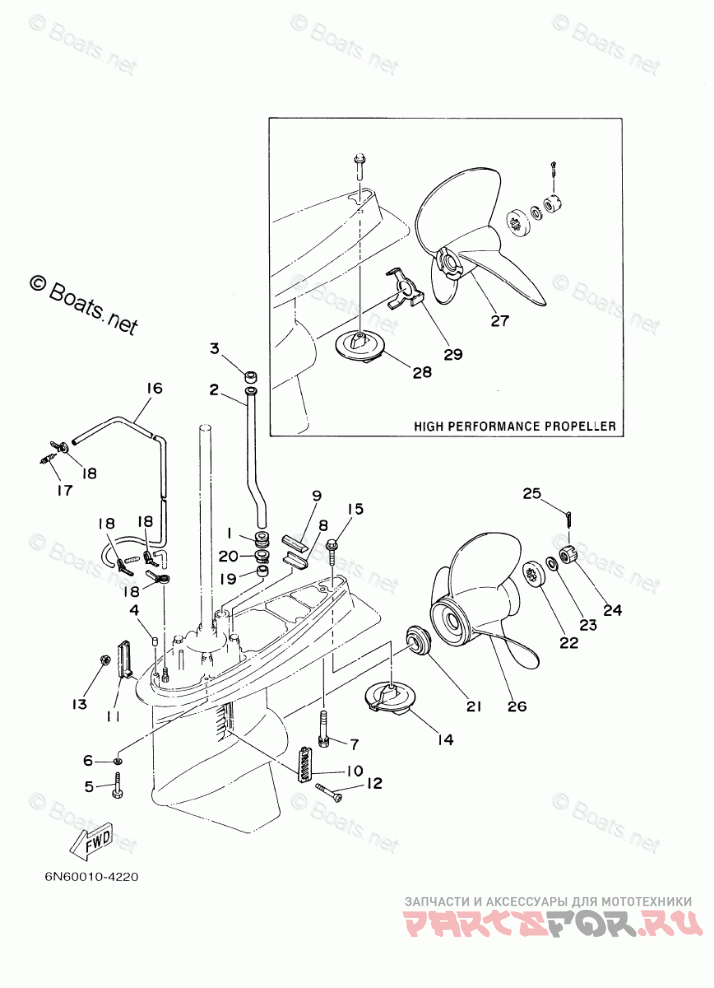

Lower Casing Drive 2

Yamaha 115TLR

Yamaha
#oem кодцена
1
6E5-44366-00-00
DAMPER, WATER SEAL 2
2
6E5-44361-00-00
TUBE, WATER 1
3
6E5-44365-00-00
DAMPER, WATER SEAL 1
4
93608-12M05-00
PIN, DOWEL
5
97075-10045-00
BOLT
6
92995-10100-00
WASHER
7
90119-10M89-00
BOLT, WITH WASHER
8
663-45376-00-94
GUIDE, SEAL DAMPER
9
688-45375-00-00
DAMPER, SEAL
10
688-45214-02-00
COVER, WATER INLET 1
11
688-45215-02-00
COVER, WATER INLET 2
12
90152-05M07-00
SCREW, COUNTERSUNK
13
90185-05002-00
NUT, NYLON
14
6E5-45371-01-00
TAB-TRIM
15
90105-10M00-00
BOLT, FLANGE
16
90445-07MF0-00
HOSE (L1030)
17
6E5-83558-00-00
END, NIPPLE
18
90465-11M10-00
CLAMP
19
6E5-44365-00-00
DAMPER, WATER SEAL 1
20
6E5-44312-00-00
COVER, WATER PUMP HOUSING
21
6E5-45987-01-00
SPACER 1
22
688-45997-01-00
SPACER 2
23
92990-18200-00
WASHER
24
90171-18M04-00
NUT, CASTLE
25
91490-40030-00
PIN. COTTER
26
688-45930-02-98
PROPELLER (3X13"X17"-K)
26
688-45974-02-98
PROPELLER (3X13"X23"-K)
26
6E5-45949-00-EL
PROPELLER (3X13-5/8"X13"-K)
26
6E5-45947-00-EL
PROPELLER (3X13-1/2"X15"-K)
26
6E5-45941-00-EL
PROPELLER (3X13"X19"-K)
26
688-45978-60-98
PROPELLER (3X13-1/2"X16"-K)
26
688-45972-02-98
PROPELLER (3X13"X21"-K)
26
688-45976-01-98
PROPELLER (3X13"X25"-K)
26
688-45970-03-98
PROPELLER (3X13"X19"-K)
26
6E5-45956-00-EL
PROPELLER (3X13"X25"-K)
26
6E5-45954-00-EL
PROPELLER (3X14"X11"-K)
26
6E5-45952-00-EL
PROPELLER (3X13"X23"-K)
26
688-45932-60-98
PROPELLER (3X13-1/2"X14"-K)
26
6E5-45945-01-EL
PROPELLER (3X13-1/4"X17"-K)
26
6E5-45943-00-EL
PROPELLER (3X12-5/8"X21"-K)
27
6E5-45972-10-00
PROPELLER (3X14"X24"-P)
27
6E5-45974-10-00
PROPELLER (3X14"X28"-P)
27
6E5-45978-10-00
PROPELLER (3X14"X26"-P)
27
6E5-45976-10-00
PROPELLER (3X14"X22"-P)
27
6E5-45970-10-00
PROPELLER (3X14"X20"-P)
28
6E5-45371-10-00
TAB-TRIM
29
6E5-45994-10-00
PLATE, TOOTH
