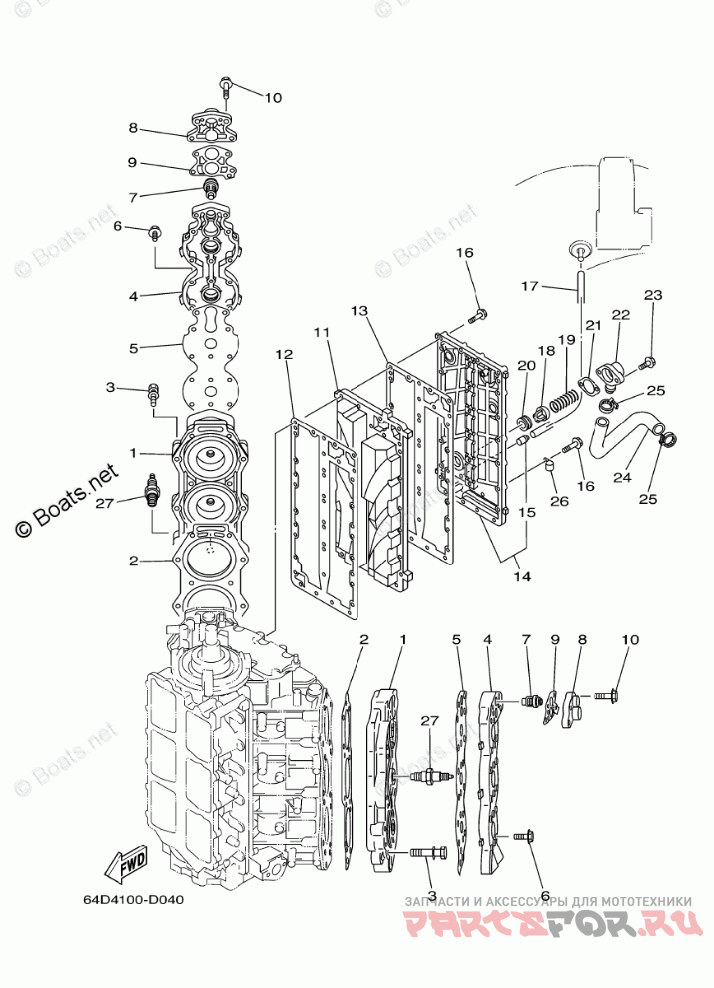

Cylinder Crankcase 2

Yamaha V150TLR

Yamaha
#oem кодцена
1
6G4-11111-02-1S
HEAD, CYLINDER 1
2
6G5-11181-A2-00
GASKET, CYLINDER HEAD 1
3
90119-08MA8-00
BOLT, WITH WASHER
4
6G5-11191-00-1S
COVER, CYLINDER HEAD 1
5
6G5-11193-A0-00
GASKET, HEAD COVER 1
6
90119-06MA4-00
BOLT, WITH WASHER
7
6E5-12411-30-00
THERMOSTAT
8
688-12413-00-1S
COVER, THERMOSTAT
9
688-12414-A1-00
GASKET, COVER
10
90119-06MA6-00
BOLT, WITH WASHER
11
64D-41111-00-1S
INNER COVER, EXHAUST
12
6G5-41112-A1-00
GASKET, EXHAUST INNER COVER
13
6G5-41114-A0-00
GASKET, EXHAUST OUTER COVER
14
6R3-41113-00-1S
OUTER COVER, EXHAUST
15
650-24378-00-00
PIPE, JOINT 4
16
90119-06MA5-00
BOLT, WITH WASHER
17
90445-09097-00
HOSE (L250)
18
60H-12416-00-00
VALVE, PRESSURE CONTROL
19
90501-16M11-00
SPRING, COMPRESSION
20
90480-20M05-00
GROMMET
21
6G5-11382-A1-00
GASKET 2
22
6G5-11372-00-1S
COVER, BYPASS 2
23
90119-06MA2-00
BOLT, WITH WASHER
24
6G5-12576-00-00
HOSE 1
25
90465-13M18-00
CLAMP
26
90465-06M86-00
CLAMP
27
NGK-BR7HS-10-00
PLUG, SPARK (NGK BR7HS-10)
