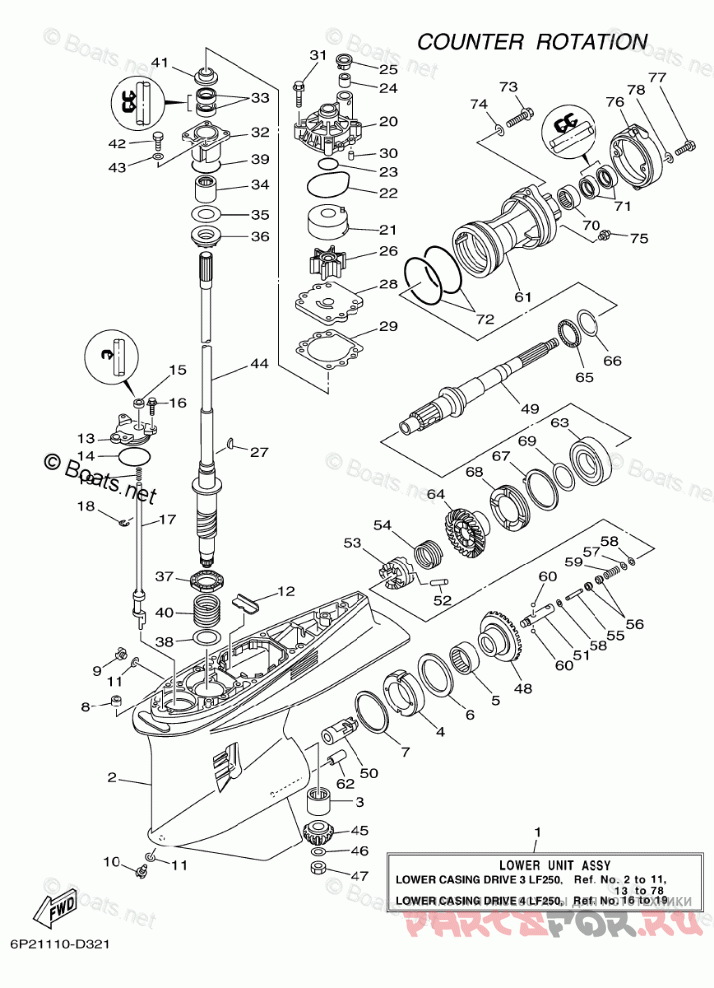

LOWER CASING DRIVE 3 LF250

Yamaha LF250TXR

Yamaha
#oem кодцена
1
6P3-45300-30-8D
LOWER UNIT ASSY
1
6P3-45300-20-8D
LOWER UNIT ASSY
2
6P2-45301-00-8D
CASING, LOWER
3
93311-832V2-00
BEARING
4
61B-45538-01-00
SPACER 1
5
93315-660W3-00
BEARING
6
93341-670V0-00
BEARING
7
61A-45567-50-00
SHIM (T:0.40MM)
7
61A-45567-60-00
SHIM (T:0.50MM)
7
61A-45567-30-00
SHIM (T:0.18MM)
7
61A-45567-40-00
SHIM (T:0.30MM)
7
61A-45567-20-00
SHIM (T:0.15MM)
7
61A-45567-10-00
SHIM (T:0.12MM)
7
61A-45567-00-00
SHIM (T:0.10MM)
8
663-44366-00-00
DAMPER, WATER SEAL 2
9
90340-08002-00
PLUG, STRAIGHT SCREW
10
688-45341-10-00
PLUG, DRAIN
11
90430-08020-00
GASKET
12
61A-45376-00-94
GUIDE, SEAL DAMPER
13
61A-45321-01-00
PLATE
14
93210-64488-00
O-RING
15
93106-09014-00
OIL SEAL
16
90119-06M10-00
BOLT, WITH WASHER
17
69K-44150-00-00
SHIFT CAM ASSY
18
99001-08600-00
CIRCLIP
19
90501-11M10-00
SPRING, COMPRESSION
20
61A-44311-01-00
HOUSING, WATER PUMP
21
61A-44322-02-00
INSERT, CARTRIDGE
22
93210-86M38-00
O-RING
23
93210-37160-00
O-RING
24
6E5-44365-00-00
DAMPER, WATER SEAL 1
25
6E5-44312-00-00
COVER, WATER PUMP HOUSING
26
6E5-44352-01-00
IMPELLER
27
90280-04M05-00
KEY, WOODRUFF
28
6G5-44323-00-00
OUTER PLATE, CARTRIDGE
29
6E5-44315-A0-00
GASKET, WATER PUMP
30
93606-12019-00
PIN, DOWEL
31
90119-08M14-00
BOLT, WITH WASHER
32
61A-45331-00-94
HOUSING, BEARING
33
93101-28M16-00
OIL SEAL
34
93317-330U2-00
BEARING
35
61A-45587-60-00
SHIM (T:0.50MM)
35
61A-45587-50-00
SHIM (T:0.40MM)
35
61A-45587-40-00
SHIM (T:0.30MM)
35
61A-45587-30-00
SHIM (T:0.18MM)
35
61A-45587-00-00
SHIM (T:0.10MM)
35
61A-45587-10-00
SHIM (T:0.12MM)
35
61A-45587-20-00
SHIM (T:0.15MM)
36
93341-930U9-00
BEARING
37
93341-34019-00
BEARING
38
90201-42014-00
WASHER, PLATE
39
93210-55M14-00
O-RING
40
90501-450A2-00
SPRING, COMPRESSION
41
6E5-45344-00-00
COVER, OIL SEAL
42
97095-08025-00
BOLT
43
92995-08600-00
WASHER
44
6P2-45501-00-00
DRIVE SHAFT COMP.
44
6P2-45501-10-00
DRIVE SHAFT COMP.
45
6P2-45551-00-00
PINION (15T)
46
90201-16M00-00
WASHER, PLATE
47
90170-16M19-00
NUT
48
6P3-45560-00-00
GEAR 1 (30T)
49
69K-45611-00-00
SHAFT, PROPELLER
50
61B-45641-01-00
SHIFTER
51
61A-45634-01-00
SLIDE, SHIFT
52
61A-45632-00-00
PIN, CROSS
53
69J-45631-00-00
CLUTCH, DOG
54
61A-45633-00-00
RING, CROSS PIN
55
6H1-45668-00-00
SHAFT, FREE 1
56
61A-45635-00-00
PLUNGER, SHIFT
57
90201-02M00-00
WASHER, PLATE
58
90183-02M03-00
NUT, SPRING
59
90501-10M77-00
SPRING, COMPRESSION
60
93501-04011-00
BALL
61
6D1-45332-00-94
HOUSING, BEARING
62
99590-10114-00
PIN, DOWEL
63
93332-00048-00
BEARING
64
6P3-45571-00-00
GEAR 2 (30T)
65
93341-440U5-00
BEARING
66
6K1-45578-40-00
SHIM (T:0.30MM)
66
6K1-45578-60-00
SHIM (T:0.50MM)
66
6K1-45578-50-00
SHIM (T:0.40MM)
66
6K1-45578-30-00
SHIM (T:0.18MM)
66
6K1-45578-20-00
SHIM (T:0.15MM)
66
6K1-45578-10-00
SHIM (T:0.12MM)
66
6K1-45578-01-00
SHIM (T:0.10MM)
67
61B-45383-00-00
WASHER, CLAW
68
69K-45384-00-00
NUT
69
69K-45577-00-00
SHIM (T:0.10MM)
69
69K-45577-10-00
SHIM (T:0.12MM)
69
69K-45577-20-00
SHIM (T:0.15MM)
69
69K-45577-30-00
SHIM (T:0.18MM)
69
69K-45577-60-00
SHIM (T:0.50MM)
69
69K-45577-40-00
SHIM (T:0.30MM)
69
69K-45577-50-00
SHIM (T:0.40MM)
70
93315-43064-00
BEARING
71
93101-30002-00
OIL SEAL
72
93211-04384-00
O-RING
73
90105-08049-00
BOLT, FLANGE
74
90201-08023-00
WASHER, PLATE
75
93700-09M00-00
NIPPLE, GREASE
76
6D0-45361-00-8D
CAP, LOWER CASING
77
97095-08020-00
BOLT
78
92995-08600-00
WASHER
