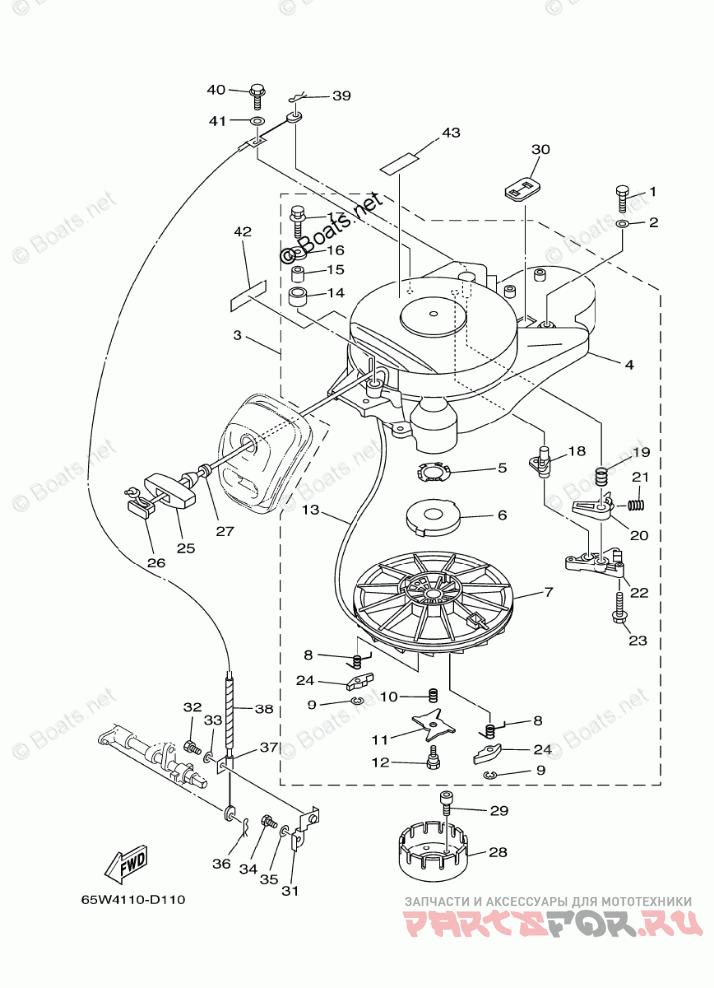

Starter

Yamaha F25ESR

Yamaha
#oem кодцена
1
97095-06025-00
BOLT
2
92995-06600-00
WASHER
3
65W-W1571-20-00
STARTER ASSY
4
65W-15711-20-00
CASE, STARTER
5
65W-15732-00-00
WASHER, WAVE 1
6
65W-15713-00-00
SPRING, STARTER
7
65W-15714-01-00
DRUM, SHEAVE
8
65W-15734-00-00
SPRING, RETURN
9
65W-15744-00-00
CIRCLIP
10
65W-15715-00-00
SPRING, FRICTION
11
65W-15716-00-00
PLATE, DRIVE
12
65W-15793-00-00
SCREW
13
90890-44373-00
ROPE, STARTER
14
65W-15752-00-00
ROLLER, WIRE
15
65W-15753-00-00
BUSH
16
65W-15791-00-00
WASHER, LOCK
17
65W-15481-00-00
BOLT 1
18
65W-15735-01-00
GUIDE, CAM
19
65W-15767-01-00
SPRING
20
65W-15794-00-00
STOPPER
21
65W-15784-00-00
SPRING, RETURN
22
65W-15414-00-00
COVER 1
23
65W-15768-00-00
BOLT
24
65W-15741-10-00
PAWL, DRIVE
25
689-15755-01-00
HANDLE, STARTER
26
6F5-15779-02-00
COVER
27
6A0-15789-00-00
DAMPER
28
65W-15723-10-00
PULLEY, STARTER
29
90110-08M03-00
BOLT, HEXAGON SOCKET HEAD
30
65W-81639-10-00
PLATE, ARMATURE FITTING
31
65W-15774-00-00
STAY 4
32
97095-06012-00
BOLT
33
92995-06600-00
WASHER
34
97095-06012-00
BOLT
35
92995-06600-00
WASHER
36
90468-18008-00
CLIP
37
65W-15770-20-00
CABLE COMP., STARTER STOP
38
90446-06M90-00
HOSE (L120)
39
90468-10005-00
CLIP
40
65W-15482-20-00
BOLT 2
41
65W-15726-00-00
WASHER, FLAT
42
65W-13437-42-00
MARK, CAUTION
43
6A1-83625-41-00
MARK 5
