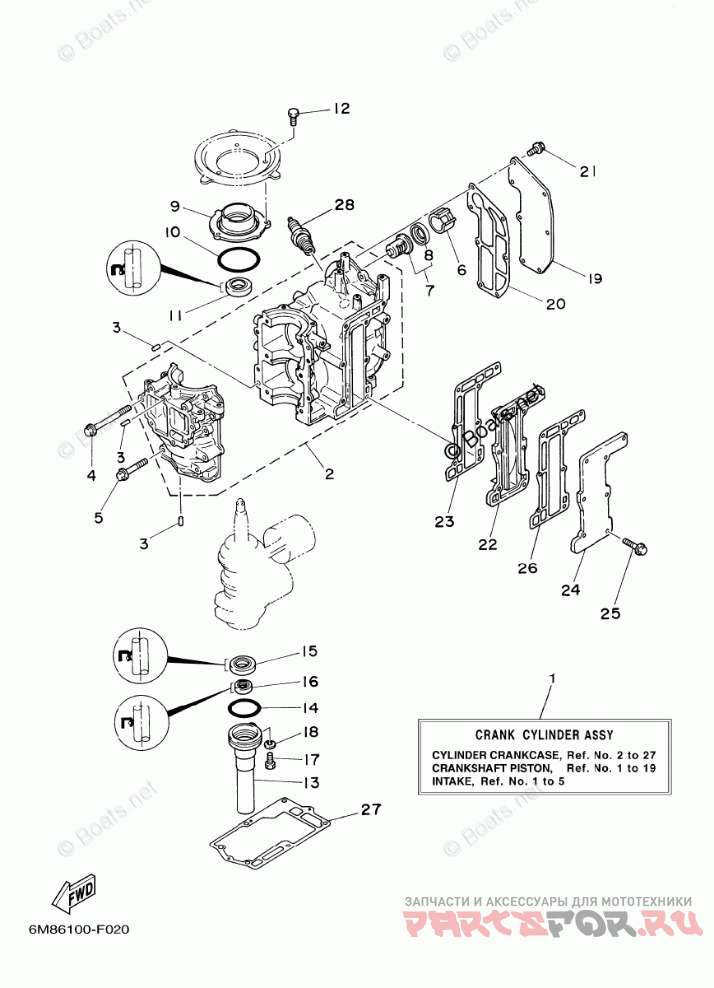

CYLINDER CRANKCASE

Yamaha 8MSH

Yamaha
#oem кодцена
1
6N0-WE090-01-1S
CRANK CYLINDER ASSY
2
6N0-E5100-00-1S
CRANKCASE ASSY
3
93604-08062-00
PIN, DOWEL
4
90105-06M26-00
BOLT, FLANGE
5
90105-06M25-00
BOLT, FLANGE
6
90387-22M50-00
COLLAR
7
6E5-12411-02-00
THERMOSTAT
8
6G1-15359-01-94
HOUSING, OIL SEAL
9
93210-54M54-00
O-RING
10
93102-20M25-00
OIL SEAL
11
97013-06016-00
BOLT
12
6G1-15396-02-5B
HOUSING, OIL SEAL
13
93210-42159-00
O-RING
14
93101-20M34-00
OIL SEAL
15
93101-12M26-00
OIL SEAL
16
97095-06016-00
BOLT
17
92995-06600-00
WASHER
18
6N0-E1191-00-1S
COVER, CYLINDER HEAD 1
19
6G1-11193-A1-00
GASKET, HEAD COVER 1
20
90105-06039-00
BOLT, FLANGE
21
6N0-G1111-00-1S
INNER COVER, EXHAUST
22
6G1-41112-A1-00
GASKET, EXHAUST INNER COVER
23
6G1-41113-01-1S
OUTER COVER, EXHAUST
24
90105-06037-00
BOLT, FLANGE
25
6G1-41114-A0-00
GASKET, EXHAUST OUTER COVER
26
6G1-45113-A1-00
GASKET, UPPER CASING
27
NGK-87HS1-00-00
PLUG, SPARK (NGK B7HS-10)
