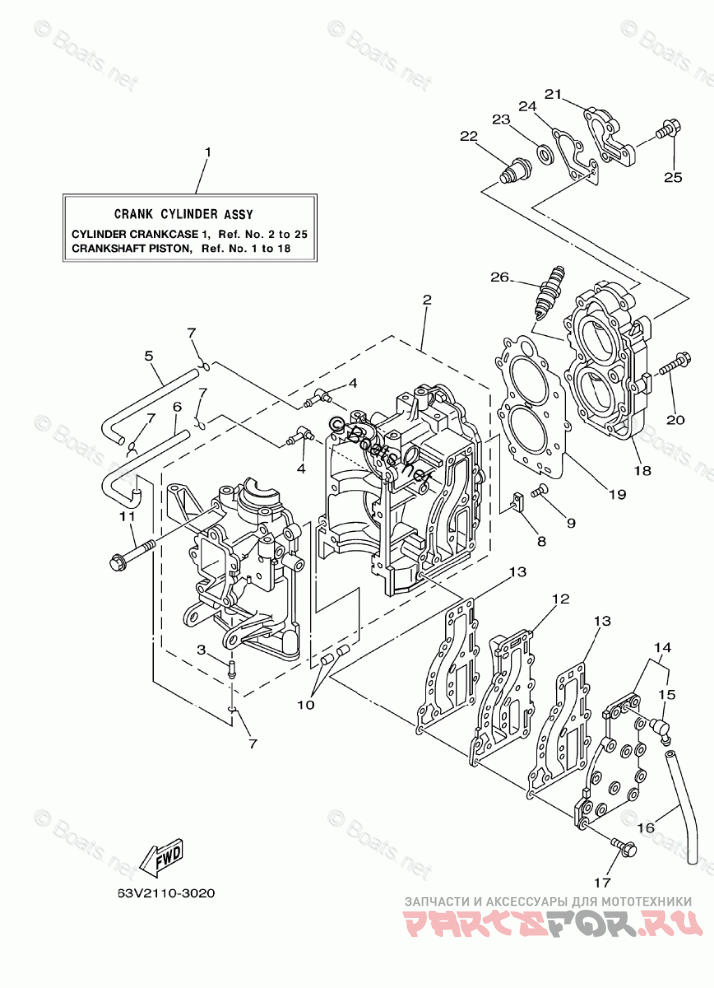

CYLINDER CRANKCASE

Yamaha 15MSH

Yamaha
#oem кодцена
1
63V-W0090-03-1S
CRANK CYLINDER ASSY
2
63V-15100-02-1S
CRANKCASE ASSY
3
624-14485-00-00
PIPE, JOINT
4
650-14485-03-00
PIPE, JOINT
5
90445-07M08-00
HOSE (L220)
6
90445-07M08-00
HOSE (L220)
7
90467-06016-00
CLIP
8
682-11325-00-00
ANODE
9
98780-05015-00
SCREW, FLAT HEAD
10
93606-12019-00
PIN, DOWEL
11
90119-08M07-00
BOLT, WITH WASHER
12
63V-41111-00-1S
INNER COVER, EXHAUST
13
63V-41112-A0-00
GASKET, EXHAUST INNER COVER
14
63V-41113-00-1S
OUTER COVER, EXHAUST
15
676-11372-00-00
NIPPLE, HOSE
16
90445-09104-00
HOSE (L300)
17
90119-06MA4-00
BOLT, WITH WASHER
18
6E7-11111-01-1S
HEAD, CYLINDER 1
19
63V-11181-A1-00
GASKET, CYLINDER HEAD 1
20
90105-07M05-00
BOLT, FLANGE
21
682-12413-00-1S
COVER, THERMOSTAT
22
6E5-12411-30-00
THERMOSTAT
23
90201-16M03-00
WASHER, PLATE
24
682-12414-A1-00
GASKET, COVER
25
90119-06MA2-00
BOLT, WITH WASHER
26
NGK-B7HS1-00-00
PLUG, SPARK (NGK B7HS-10)
