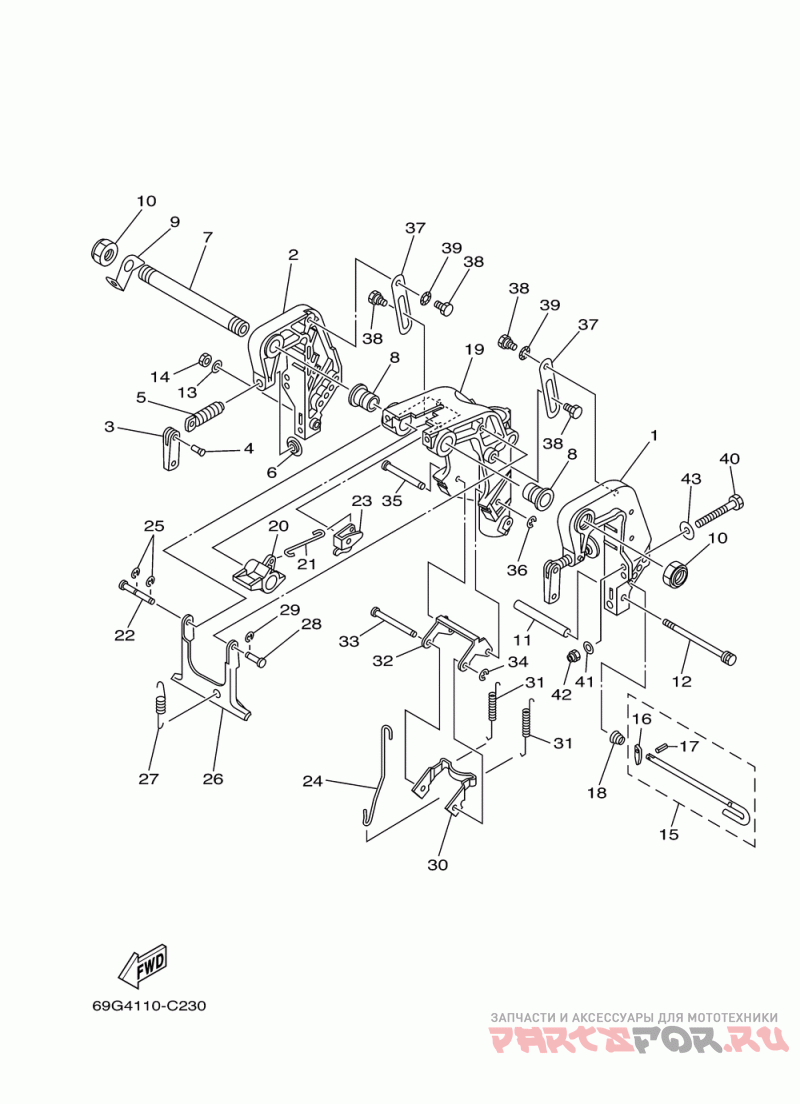

Кронштейн 1

Yamaha T8PXRC/T8PLHC/T8EXHC/T8ELHC/T8PLRC/T8PXHC

Yamaha
#oem кодцена
1
60R-WG311-00-4D
Bracket, Clamp Eh
2
60R-WG312-00-4D
Bracket Clamp/screw Eh
3
6E0-43118-01-00
Handle, Transom Clp Eh
4
90243-04M01-00
Pin Eh
5
6N0-G3116-00-00
Screw, Trnsm. Clamp Eh
6
648-43114-01-00
Pad, Transom Clamp Eh
7
68T-43131-00-00
Bolt, Clamp Bracket Eh
8
90386-22MA4-00
Bush Eh
9
66R-43113-00-00
Plate, Clamp Brack Eh
10
90185-22007-00
Nut, Self-locking Eh
11
90387-06M13-00
Collar Eh
12
90101-06M18-00
Bolt (6l5) Eh
13
92990-06600-00
Washer Eh (5 Per Pack)
14
95380-06700-00
Nut Eh
15
6L2-43160-01-00
Tilt Rod Assy Eh
16
689-43165-00-00
Stopper, Tilt Lock
17
91690-30008-00
Палец
18
90502-10M07-00
Spring, Conical Eh (5 Per Pack)
19
60R-G3311-10-4D
Bracket, Swivel 1 Eh L, X
20
60R-G3631-00-00
Lever, Tilt Eh
21
60R-G3616-00-00
Rod, Tilt Lock Eh
22
68T-43646-00-00
Shaft, Lever Eh
23
68T-43641-00-00
Lever, Tilt Eh
24
68T-43617-00-00
Rod, Tilt Lock Eh
25
99080-05600-00
Circlip Eh
26
68T-43350-00-00
Receiver Assy Eh
27
90506-20005-00
Spring, Tension Eh
28
63V-43191-00-00
Shaft, Stopper Eh
29
99080-05600-00
Circlip Eh
30
68T-43614-00-00
Plate, Tilt Lock Eh
31
90506-23003-00
Spring, Tension Eh
32
68T-43615-00-00
Plate, Tilt Lock Eh
33
68T-43611-00-00
Shaft, Tilt Lock Eh
34
99080-04600-00
Clip Eh
35
68T-43659-00-00
Shaft, Reverse Lock Eh
36
99080-05600-00
Circlip Eh
37
68T-43627-00-00
Stopper Eh
38
90109-06M84-00
Bolt Eh
39
90206-10M24-00
Washer, Wave Eh
40
90101-08M88-00
Bolt Eh
41
92990-08600-00
Washer Eh (5 Per Pack)
42
95780-08300-00
Nut Self-locking Eh
43
90201-08MA4-00
Washer Eh
