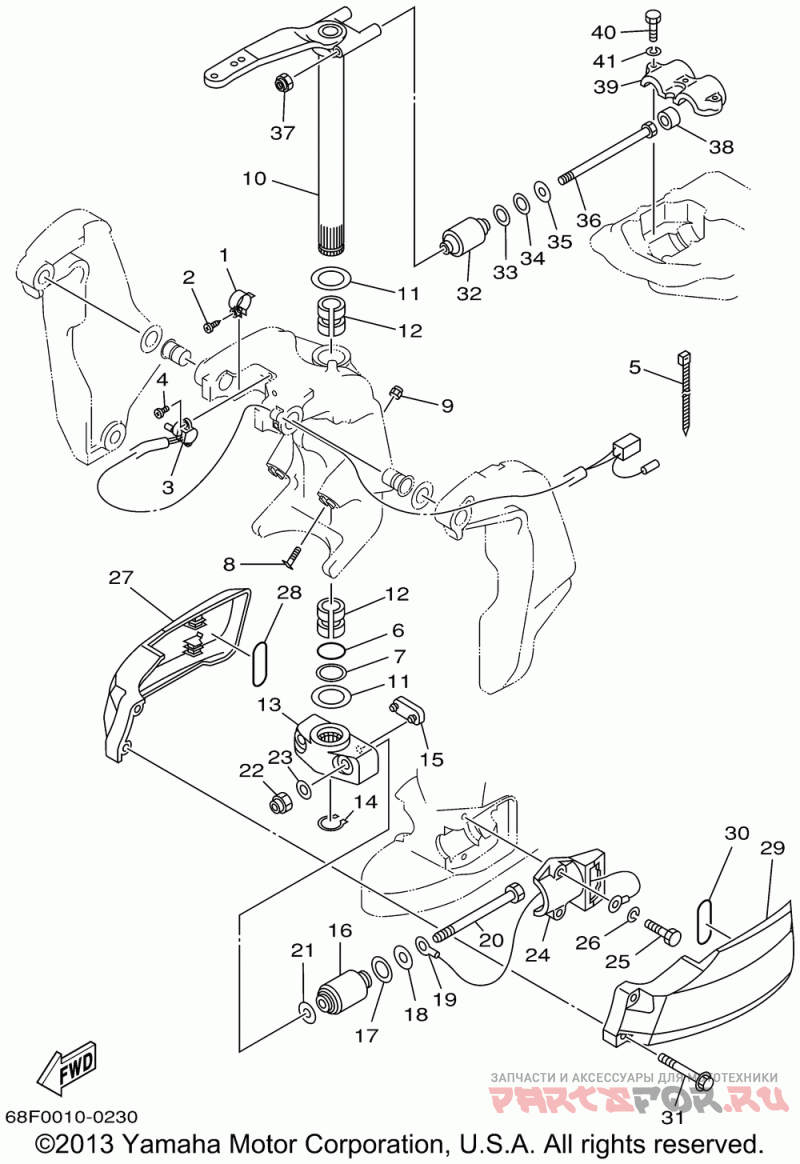

Крепление 2

Yamaha VZ150TLRA/VZ200TLRA/VZ175TLRA

Yamaha
#oem кодцена
1
99999-03830-00
Cam, Trim Sender (wi (vz)
2
97780-60625-00
Screw, Tapping (vz) (5 Per Pack)
3
64E-83672-03-00
Trim Sender (vz)
4
98580-06016-00
Screw, Pan Head (vz)
5
90465-10098-00
Clamp (vz)
6
93210-37MH7-00
O-ring (vz)
7
90202-40M47-00
Washer, Plate (vz)
8
61A-43376-00-00
Bolt, Thrust Recvr. (vz)
9
95780-10300-00
Nut, Self-locking (vz)
10
68F-42510-A0-8D
Steering Bracket A L(vz)
11
90201-38M60-00
Washer, Plate (vz)
12
90386-38M89-00
Bush (vz)
13
68F-44551-00-8D
Housing, Lower Mou (vz)
14
93410-37M04-00
Circlip, S-type (vz)
15
6E5-44575-00-00
Damper, Lwr.mt.rubb (vz)
16
6J9-44555-00-00
Mount Damper, Lower (vz)
17
90202-32M19-00
Washer, Plate (vz)
18
90201-16M55-00
Washer, Plate (vz)
19
6E5-82149-00-00
Wire, Lead 3 (vz)
20
90109-14006-00
Bolt (vz)
21
90201-15M58-00
Washer, Plate (vz)
22
90185-14M00-00
Nut, Self-locking (vz)
23
92990-14600-00
Washer (vz)
24
68F-44552-01-00
Housing, Lower Mount (vz)
25
97095-10045-00
Bolt (vz)
26
92990-10100-00
Washer, Spring (vz) (5 Per Pack)
27
68F-44553-00-8D
Cover, Lower Mount (vz)
28
93210-41042-00
O-ring (vz)
29
68F-44556-00-8D
Cover, Lower Mount 2 (vz)
30
93210-41042-00
O-ring (vz)
31
90119-06MA8-00
Bolt, With Washer (vz)
32
6J9-44514-00-00
Mount Damper, Upper (vz)
33
90201-26M57-00
Washer, Plate (vz)
34
90202-26M18-00
Washer, Plate (vz)
35
90201-14M56-00
Washer, Plate (vz)
36
90109-12007-00
Bolt (vz)
37
90185-12M12-00
Nut, Self-locking (vz)
38
663-44575-00-00
Damper, Lwr.mt.rubb (vz)
39
6E5-44511-00-94
Cover, Upper Mount (vz)
40
97095-10045-00
Bolt (vz)
41
92990-10100-00
Washer, Spring (vz) (5 Per Pack)
