Электрика 3

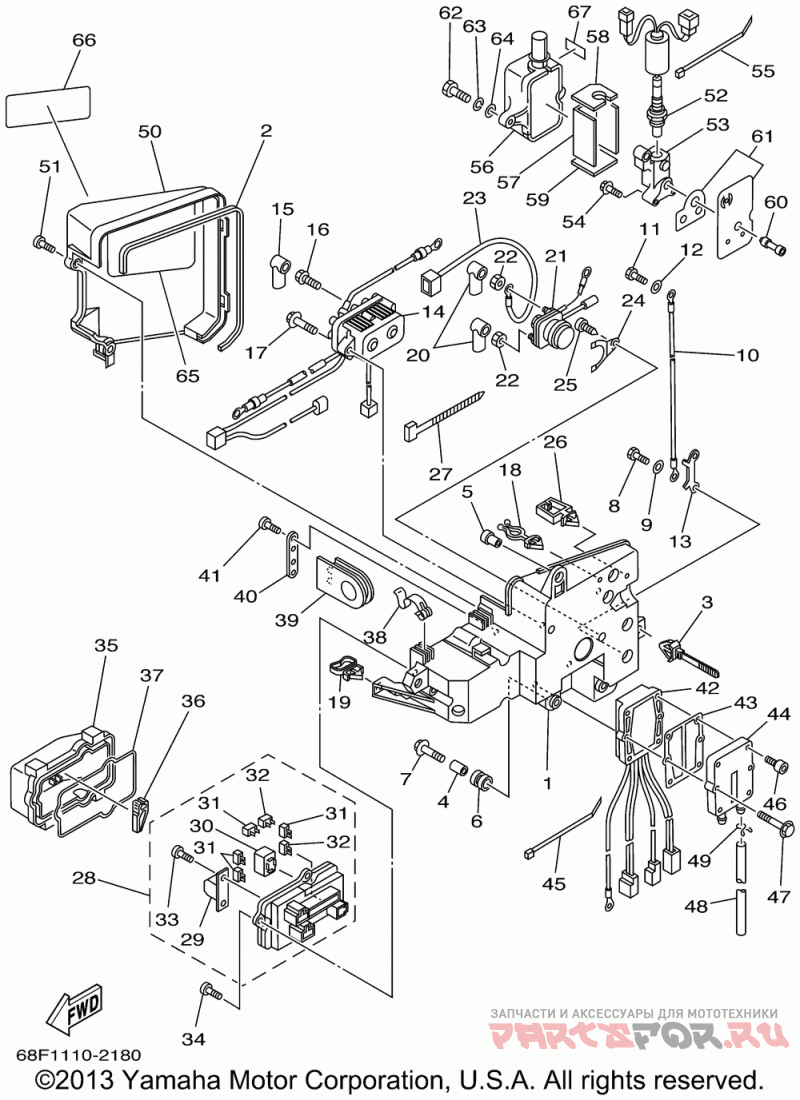

Yamaha VZ150TLRA/VZ200TLRA/VZ175TLRA

Yamaha
#oem кодцена
1
68F-81948-02-00
Bracket (vz)
2
68F-82535-00-00
Grommet (vz)
3
90465-12M56-00
Clamp (62t) (vz)
4
90387-06119-00
Collar (vz)
5
90387-06M91-00
Collar (vz)
6
6A0-82317-00-00
Damper, Ign Coil (vz)
7
90119-06M95-00
Bolt, With Washer (vz)
8
97080-06012-00
Bolt (vz)
9
92990-06600-00
Washer (vz) (5 Per Pack)
10
68F-81949-20-00
Wire, Lead (vz)
11
97080-06012-00
Bolt (vz)
12
92990-06600-00
Washer (vz) (5 Per Pack)
13
61A-87149-00-00
Connector (vz)
14
68F-81950-01-00
Relay Assy (vz)
15
6G5-82119-10-00
Cover, Lead Wire (vz)
16
97595-06610-00
Bolt, With Washer (vz)
17
90119-06MA4-00
Bolt, With Washer (vz)
18
90464-18M46-00
Clamp (vz)
19
90464-23199-00
Clamp (vz)
20
6G5-82119-10-00
Cover, Lead Wire (vz)
21
61A-8194A-00-00
Relay (vz)
22
95780-06300-00
Nut, Flange (vz)
23
68F-82117-00-00
Wire, Lead (vz)
24
61A-81952-00-00
Holder, Relay (vz)
25
97780-50612-00
Screw, Tapping (vz)
26
90464-05141-00
Clamp (vz)
27
90465-11M52-00
Clamp (vz)
28
68F-82170-02-00
Fuse Box Assy (vz)
29
6P2-82151-00-00
Fuse (60a) (60a) (vz)
30
68F-8195A-00-00
Relay Asy (vz)
31
5JJ-82151-20-00
Fuse (20a-bl) (20a) (vz)
32
5JJ-82151-60-00
Fuse (30a) (vz)
33
68F-82846-00-00
Screw, Pan Head (m5) (m5) (vz)
34
97780-50620-00
Screw, Tapping (vz)
35
68F-85544-00-00
Case (vz)
36
67F-2812A-00-00
Puller, Fuse (vz)
37
68F-82176-00-00
Damper (vz)
38
68F-8572S-00-00
Spring (vz)
39
68F-81336-00-00
Grommet (vz)
40
68F-81128-00-00
Clamp (vz)
41
97780-50116-00
Screw, Panhead Tap. (vz)
42
68F-81960-02-00
Rectifier & Regulato (vz)
43
61A-81975-A0-00
Plate, Rect. Fitng (vz)
44
69J-81972-02-9S
Cover, Rectifier (vz)
45
90465-13M18-00
Clamp (vz) (5 Per Pack)
46
90110-06M07-00
Bolt, Hexagon Sock (vz)
47
90119-06MA4-00
Bolt, With Washer (vz)
48
90445-092K1-00
Hose (l250) (vz)
49
90467-08M18-00
Clip (vz)
50
68F-81942-00-00
Cover (vz)
51
90169-05M00-00
Screw Truss Head (vz)
52
68F-8592A-00-00
Sensor (vz)
53
65L-11395-00-00
Holder (vz)
54
97513-06530-00
Bolt W/washer(63m) (vz)
55
90465-13M18-00
Clamp (vz) (5 Per Pack)
56
65L-85832-00-00
Case, Under (vz)
57
65L-11354-00-00
Gasket (vz)
58
65L-1131N-00-00
Gasket Holder (vz)
59
65L-11396-00-00
Gasket, Holder (vz)
60
68F-11353-00-00
Joint (vz)
61
68F-W1135-00-00
Kit (vz)
62
97080-06030-00
Bolt (vz)
63
92995-06100-00
Washer (vz) (5 Per Pack)
64
92990-06600-00
Washer (vz) (5 Per Pack)
65
68F-81919-10-00
Graphic, Regulator (vz)
66
68F-81919-01-00
Graphic, Regulator (vz)
67
65L-83625-40-00
Mark 5 (vz)
