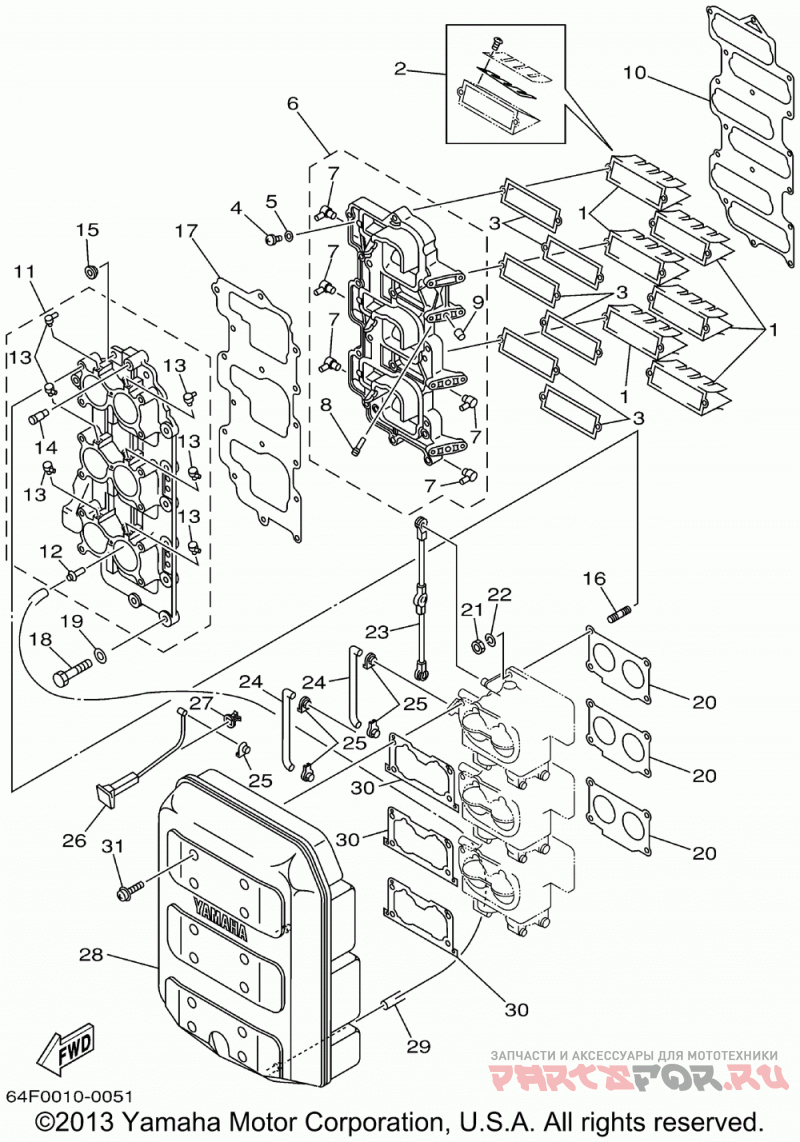

Впускная система

Yamaha V150TLRA

Yamaha
#oem кодцена
1
6K7-13610-00-00
Reed Valve Assy (v150)
2
6E5-W0004-00-00
Reed Set (v150)
3
6K7-13621-A1-00
Gasket, Valve Seat (v150)
4
97885-05016-00
Screw, Pan Head (v150)
5
92990-05600-00
Washer (v150) (5 Per Pack)
6
64E-13624-00-1S
Plate, Reed Valve (v150)
7
6H4-11372-01-00
Nipple, Hose (v150)
8
6R5-14485-00-00
Pipe, Joint (v150)
9
90336-08M06-00
Plug, Taper (v150)
10
6K7-13646-A2-00
Gasket, Manifold 2 (v150)
11
64E-13641-00-1S
Manifold 1 (v150)
12
624-14485-00-00
Pipe, Joint (v150)
13
6E5-13552-01-00
Nozzle (v150)
14
6K7-81338-01-00
Stay (v150)
15
90480-10M28-00
Grommet (v150)
16
90116-06M30-00
Bolt, Stud (v150)
17
64E-13645-A0-00
Gasket, Manifold 1 (v150)
18
97013-06050-00
Bolt (661) (v150)
19
92990-06600-00
Washer (v150) (5 Per Pack)
20
6E5-14198-A2-00
Gasket (v150)
21
95380-06600-00
Nut (v150) (5 Per Pack)
22
92995-06100-00
Washer (v150) (5 Per Pack)
23
6G5-41217-01-00
Rod, Accel.lever (v150)
24
6E5-41256-01-00
Rod, Choke 1 (v150)
25
661-41262-02-00
Joint, Choke Lever (v150)
26
61H-41271-11-00
Knob, Choke (v150)
27
689-41273-00-00
Grommet (v150)
28
64D-14440-00-00
Silencer Asy, Intk (v150)
29
90445-07MA3-00
Hose (l200) (l200) (v150)
30
6K7-14483-00-00
Gasket (v150)
31
90159-06M08-00
Screw, With Washer (v150)
