Управление

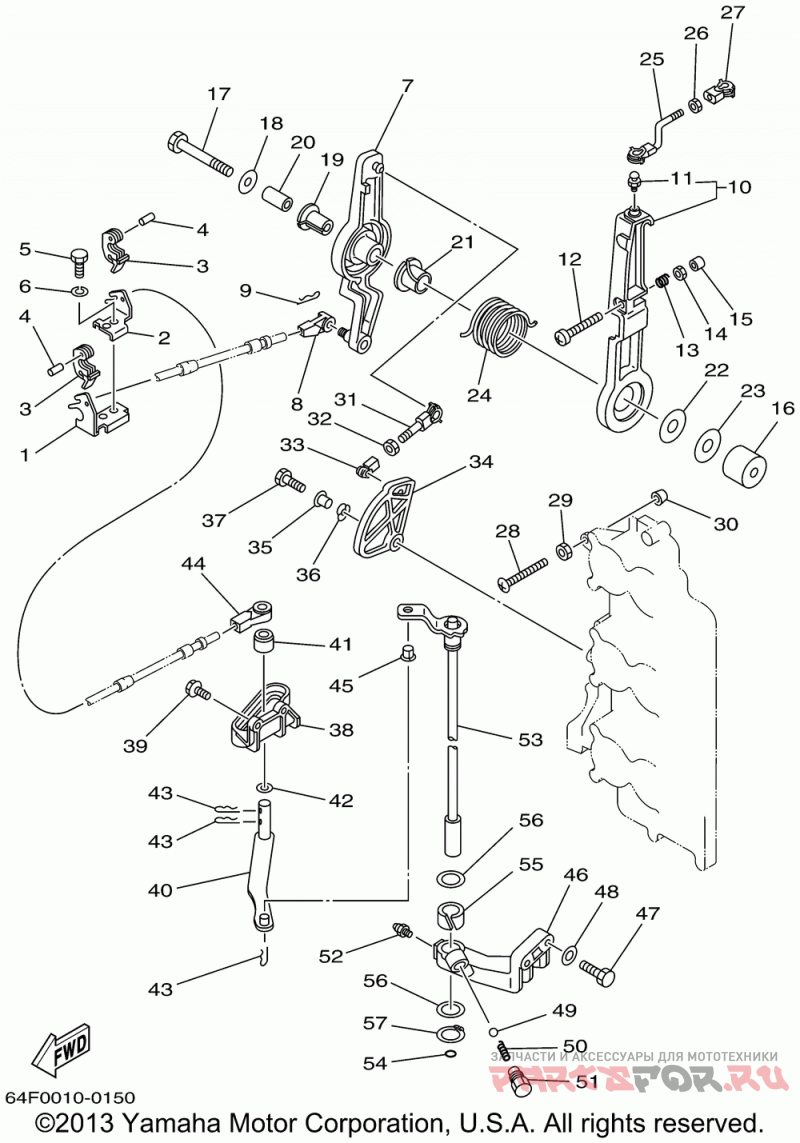

Yamaha V150TLRA

Yamaha
#oem кодцена
1
64D-48531-00-00
Bracket, Remote Con (v150)
2
64D-48532-00-00
Bracket, Remote Con (v150)
3
6E5-48538-00-00
Clamp, Cable (v150)
4
91690-30012-00
Pin, Spring (v150)
5
97095-08020-00
Bolt (v150)
6
92990-08100-00
Washer, Spring (v150)
7
61H-41632-02-1S
Lever, Magneto Con (v150)
8
6E5-48344-00-00
Cable End, Rem.cntl (v150)
9
90468-18008-00
Clip (v150)
10
6G5-41631-01-1S
Lever, Magneto Con (v150)
11
663-85518-00-00
Joint, Ball (v150)
12
90157-06M11-00
Screw, Pan Head (v150)
13
90501-16M12-00
Spring, Compression (v150)
14
95380-06600-00
Nut (v150) (5 Per Pack)
15
688-44194-00-00
Cap (v150)
16
90387-08M17-00
Collar (v150)
17
90101-08M14-00
Bolt (v150)
18
90201-08M54-00
Washer, Plate (v150)
19
90386-12089-00
Bush, Spec'l Nylon (v150)
20
90387-084J8-00
Collar (v150)
21
90386-22M13-00
Bush, Spec'l Nylon (v150)
22
90202-12092-00
Washer, Plate (v150)
23
90201-08M13-00
Washer, Plate (v150)
24
90508-29M12-00
Spring, Torsion (v150)
25
6G5-41636-01-00
Rod, Mag.control (v150)
26
95380-05600-00
Nut (v150) (5 Per Pack)
27
6H1-41237-00-00
Joint, Link 2 (v150)
28
90157-06M12-00
Screw, Pan Head (v150)
29
95380-06600-00
Nut (v150) (5 Per Pack)
30
688-44194-00-00
Cap (v150)
31
682-41237-50-00
Joint, Link 2 (v150)
32
95380-05600-00
Nut (v150) (5 Per Pack)
33
6H1-41237-00-00
Joint, Link 2 (v150)
34
61H-41213-00-00
Cam Accel. (v150)
35
90387-06M29-00
Collar (v150)
36
90206-10M04-00
Washer, Wave (v150)
37
90101-06M27-00
Bolt (v150)
38
6E5-44117-00-94
Bracket 1 (v150)
39
90119-06MA2-00
Bolt, With Washer (v150)
40
68F-44121-00-00
Lever, Shift Rod (v150)
41
6E5-44122-00-00
Bushing, Shft.rod (v150)
42
90202-08M20-00
Washer, Plate (v150)
43
90468-18008-00
Clip (v150)
44
6E5-48344-00-00
Cable End, Rem.cntl (v150)
45
90386-06M12-00
Bush, Spec'l Nylon (v150)
46
6E5-44118-01-94
Bracket 2 (v150)
47
97013-08030-00
Bolt (661) (v150)
48
92990-08600-00
Washer (v150) (5 Per Pack)
49
93501-04M02-00
Ball 1/4 (v150) (5 Per Pack)
50
90501-12082-00
Spring, Compression (v150)
51
648-42715-00-00
Bushing 2 (v150)
52
93700-06M03-00
Nipple, Grease (v150)
53
6E5-44120-03-00
Hdl.gear Shft L(v150)
54
93210-09350-00
O-ring (v150)
55
90386-16M66-00
Bush(6e5) (v150) (5 Per Pack)
56
90202-16061-00
Washer, Plate (v150)
57
99009-16400-00
Circlip, S-type (v150)
