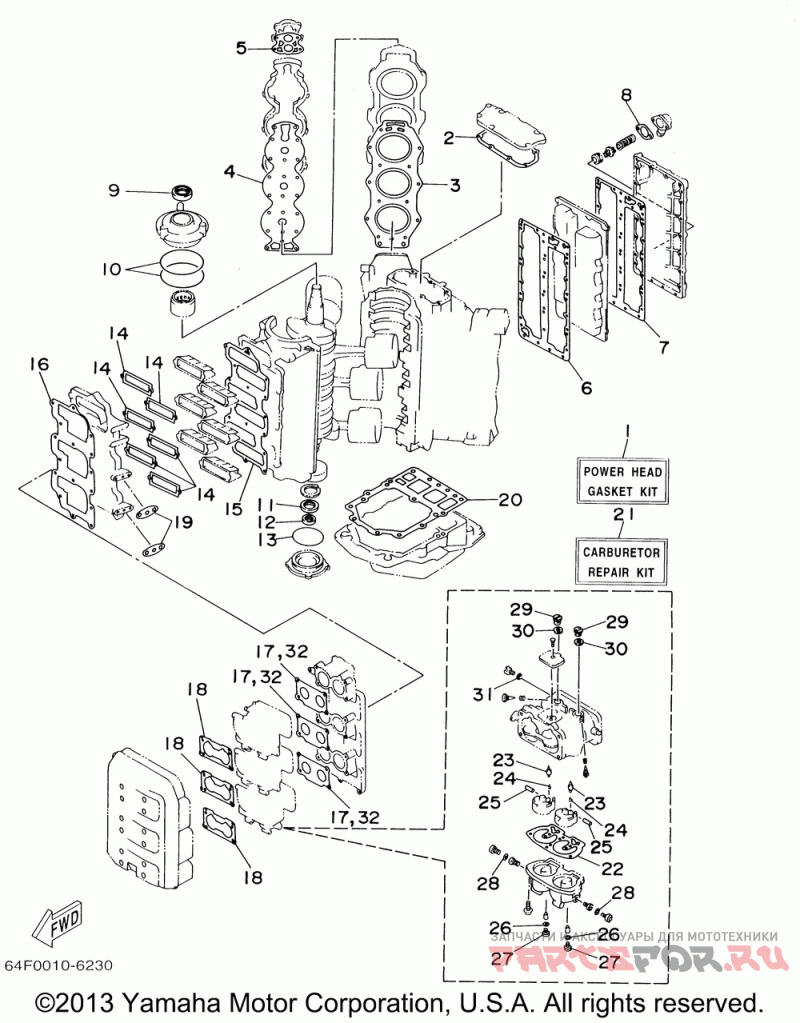

Ремонтные комплекты 1

Yamaha V150TLRA

Yamaha
#oem кодцена
1
64F-W0001-00-00
Gasket Kit (v150)
2
6E5-11381-A2-00
Gasket 1 (v150)
3
6G5-11181-A3-00
Gasket, Cylinder Hea (v150)
4
6G5-11193-A2-00
Gasket, Head Cover 1 (v150)
5
688-12414-A1-00
Gasket, Cover (v150)
6
6G5-41112-A1-00
Gasket Exhaust (v150)
7
6G5-41112-A1-00
Gasket Exhaust (v150)
8
6G5-11382-A1-00
Gasket 2 (v150)
9
93102-40M38-00
Oil Seal, Sd-type (v150)
10
93211-04001-00
O-ring (v150)
11
93102-35M13-00
Oil Seal, Sd-type (v150)
12
93101-22M15-00
Oil Seal, S-type (v150)
13
93210-74M35-00
O-ring (v150)
14
6K7-13621-A1-00
Gasket, Valve Seat (v150)
15
6K7-13646-A2-00
Gasket, Manifold 2 (v150)
16
64E-13645-A0-00
Gasket, Manifold 1 (v150)
17
6E5-14198-A2-00
Gasket (v150)
18
6K7-14483-00-00
Gasket (v150)
19
650-24431-A0-00
Gasket, Fuel Pump 1 (v150)
20
6G5-45113-A2-00
Gasket, Upper Casing (v150)
21
64D-W0093-01-00
Carburetor Repair Ki (v150)
22
64D-14384-01-00
Gasket, Float Chambe (v150)
23
6E5-14546-00-00
Valve, Float (v150)
24
6E5-14159-00-00
Clip (v150)
25
6E5-14386-02-00
Pin, Float (v150)
26
61U-14959-00-00
Gasket (v150)
27
64D-14394-00-00
Valve, Drain (v150)
28
6E5-14398-01-00
Gasket (v150)
29
6E5-14328-01-00
Screw, Pilot Stop (v150)
30
6E5-14979-00-00
Gasket, Starter (v150)
31
6J8-14995-00-00
Gasket (v150) (5 Per Pack)
32
6E5-14198-A2-00
Gasket (v150)
