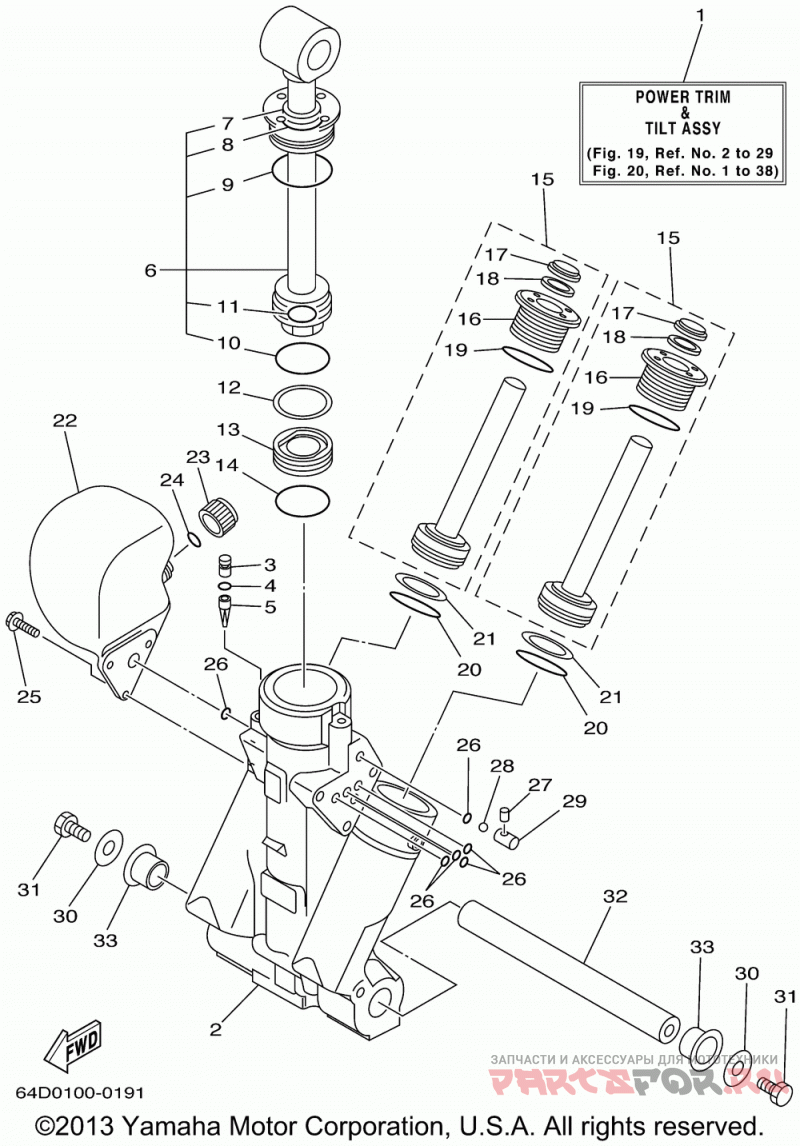

Цилиндр гидроподъема 1

Yamaha V150TLRA

Yamaha
#oem кодцена
1
64E-43800-08-00
Power Trim & Tilt As (v150)
2
64E-43825-09-00
Housing, Trim & Tilt (v150)
3
6AW-4388J-00-00
Plug 2 (v150)
4
93210-10M74-00
O-ring (v150) (5 Per Pack)
5
64E-43817-00-00
Filter 2 (v150)
6
64E-43810-09-00
Tilt Piston Sub Assy (v150)
7
64E-43898-00-00
Dust Seal (v150)
8
64E-43867-00-00
O-ring (v150)
9
64E-43866-00-00
O-ring (v150)
10
6E5-43862-00-00
O-ring (v150)
11
64E-43883-00-00
O-ring (v150)
12
6E5-43872-00-00
Ring, Back Up (v150)
13
6E5-43814-02-00
Piston, Free (v150)
14
6E5-43862-00-00
O-ring (v150)
15
64E-43820-09-00
Trim Piston Sub Assy (v150)
16
64E-43821-09-00
Screw, Trim Cylinder (v150)
17
64E-43822-00-00
Seal, Trim Dust (v150)
18
64E-4384J-00-00
Seal, Trim Down (v150)
19
6G5-43864-00-00
O-ring (v150)
20
6E5-43864-00-00
O-ring (v150)
21
6E5-43874-01-00
Ring, Back Up (v150)
22
64E-43828-01-00
Body, Reservoir (v150)
23
64E-43829-01-00
Plug, Reservoir (v150)
24
64E-43897-00-00
O-ring (v150)
25
64E-4388E-01-00
Bolt , Screw (l:14mm) (l:14mm) (v150)
26
64E-43869-00-00
O-ring (v150)
27
64E-4381G-00-00
Pin 1 (v150)
28
6E5-43858-00-00
Ball 1 (v150)
29
64E-4382G-00-00
Seat Valve (v150)
30
90201-08M14-00
Washer, Plate (v150)
31
97080-08016-00
Bolt (v150)
32
99999-03932-00
Lower Shock Mount Pi (v150)
33
90386-22M98-00
Bush, Spec'l Nylon (v150)
