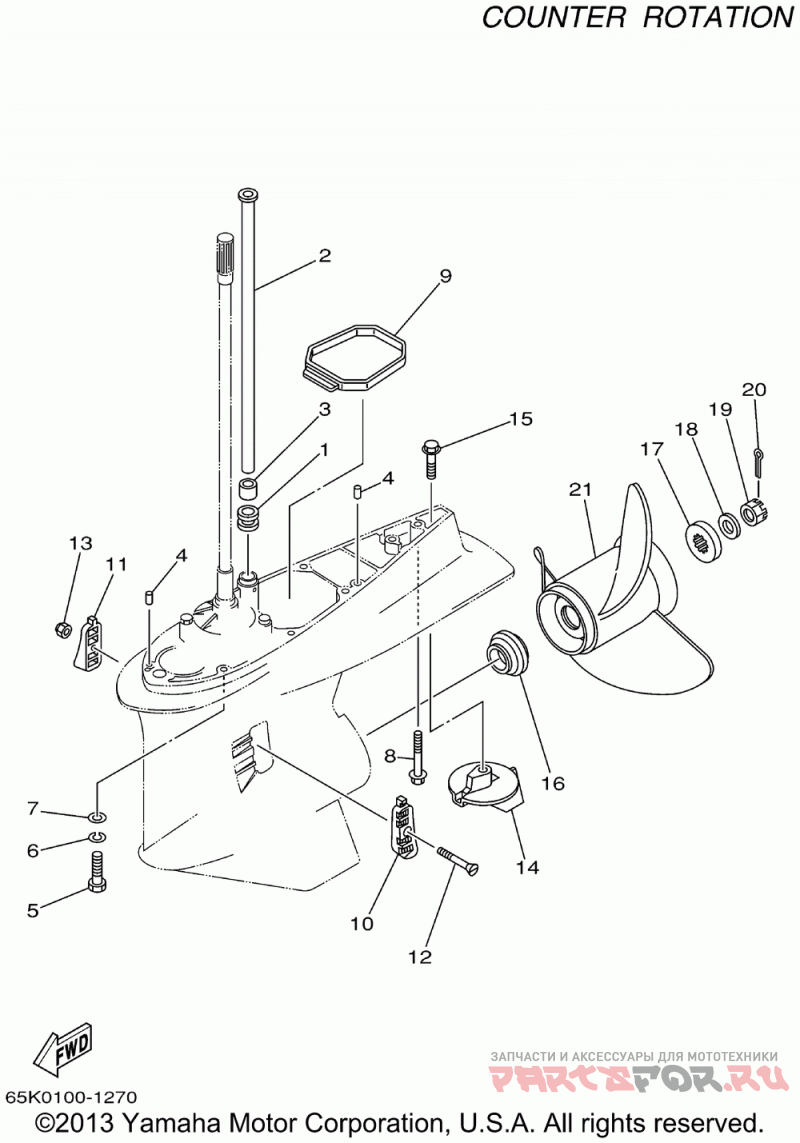

Lower casing drive 4 l225 250

Yamaha SX250TXRA/LX225TXRA/SX225TXRA/LX250TURA/LX250TXRA/SX225TURA/SX250TURA

Yamaha
#oem кодцена
1
6E5-44366-00-00
Water Seal (lx)
2
61A-44361-30-00
Tube, Water Ur U (lx)
2
61A-44361-20-00
Tube, Water Ur X (lx)
3
6E5-44365-00-00
Water Seal (lx)
4
93608-12M05-00
Pin, Dowel (lx) (5 Per Pack)
5
97095-10045-00
Bolt (lx)
6
92990-10100-00
Washer, Spring (lx) (5 Per Pack)
7
92990-10600-00
Washer (lx) (5 Per Pack)
8
90119-10M89-00
Bolt, With Washer (lx)
9
69J-45375-00-00
Damper, Seal (lx)
10
61A-45214-00-00
Cover, Wtr.inlet (lx)
11
61A-45215-00-00
Cover, Water Inlet (lx)
12
90152-05M08-00
Screw, Countersunk (lx)
13
90185-05904-00
Nut, Self-locking (lx)
14
61A-45371-00-00
Trim-tab (lx)
15
90105-10M00-00
Bolt, Washer Based (lx)
16
63P-45987-00-00
Spacer (lx)
17
688-45997-01-00
Spacer 2 (lx)
18
92990-18200-00
Washer (lx)
19
90171-18M04-00
Nut, Castle (lx)
20
91490-40030-00
Pin, Cotter (lx) (5 Per Pack)
21
6K1-45970-01-00
Ss Prop 15-1/4x15 (3x15-1/4"x15"-ml) Ur (lx)
21
61B-45978-00-00
Ss Prop 15x17 (3x15"x17"-tl) Ur (lx)
21
61B-45974-00-00
Ss Prop 14-1/2x19 L (3x14-1/2"x19"-tl) Ur (lx)
21
6K1-45978-02-00
Ss Prop 13-3/4x17 (3x13-3/4"x17"-ml1) Ur (lx)
21
6K1-45974-02-00
Ss Prop 13-3/4x19 (3x13-3/4"x19"-ml1) Ur (lx)
21
6K1-45972-01-00
Ss Prop 13-3/4 X 21 (3x13-3/4"x21"-ml) Ur (lx)
