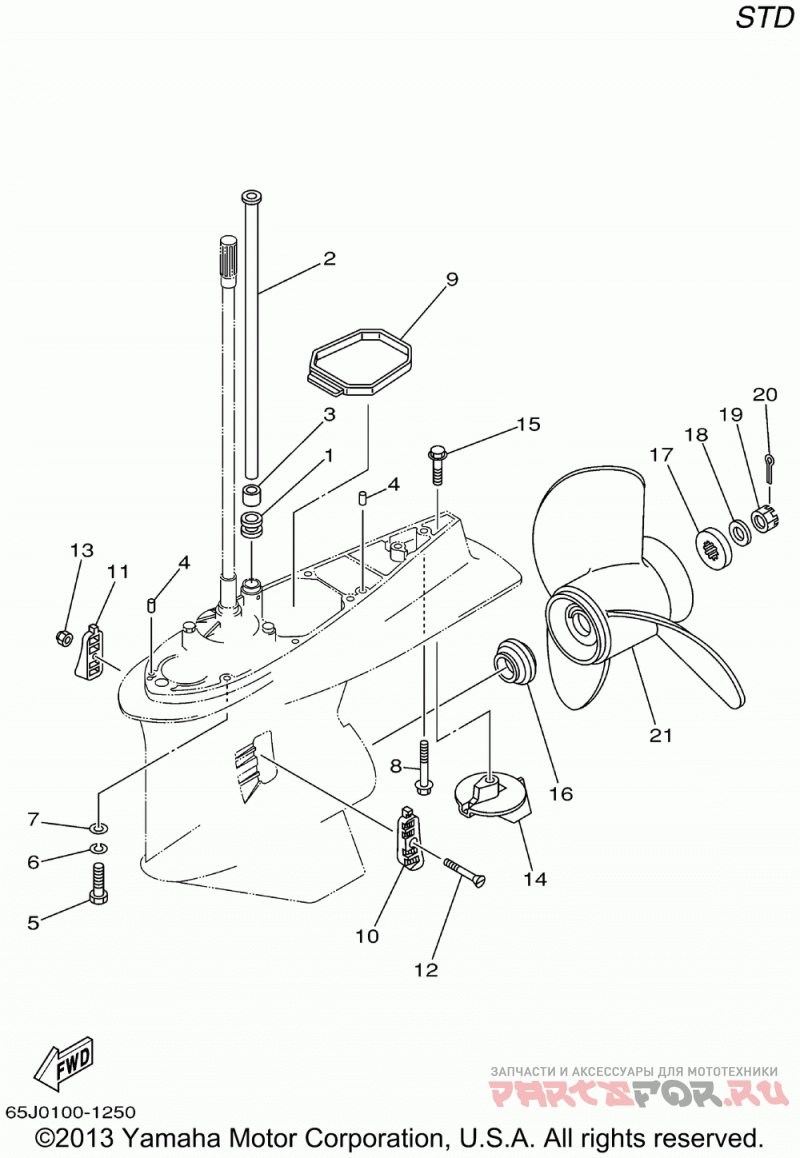

Lower casing drive 2 225 250

Yamaha SX250TXRA/LX225TXRA/SX225TXRA/LX250TURA/LX250TXRA/SX225TURA/SX250TURA

Yamaha
#oem кодцена
1
6E5-44366-00-00
Water Seal (sx)
2
61A-44361-30-00
Tube, Water Ur U (sx)
2
61A-44361-20-00
Tube, Water Ur X ( Sx)
3
6E5-44365-00-00
Water Seal (sx)
4
93608-12M05-00
Pin, Dowel (sx) (5 Per Pack)
5
97095-10045-00
Bolt (sx)
6
92990-10100-00
Washer, Spring (sx) (5 Per Pack)
7
92990-10600-00
Washer (sx) (5 Per Pack)
8
90119-10M89-00
Bolt, With Washer (sx)
9
69J-45375-00-00
Damper, Seal (sx)
10
61A-45214-00-00
Cover, Wtr.inlet (sx)
11
61A-45215-00-00
Cover, Water Inlet (sx)
12
90152-05M08-00
Screw, Countersunk (sx)
13
90185-05904-00
Nut, Self-locking (sx)
14
61A-45371-00-00
Trim-tab (sx)
15
90105-10M00-00
Bolt, Washer Based (sx)
16
63P-45987-00-00
Spacer (sx)
17
688-45997-01-00
Spacer 2 (sx)
18
92990-18200-00
Washer (sx)
19
90171-18M04-00
Nut, Castle (sx)
20
91490-40030-00
Pin, Cotter (sx) (5 Per Pack)
21
61A-45974-00-00
Ss Prop 14-1/2x19 (3x14-1/2"x19"-t) Ur (sx)
21
61A-45978-00-00
Ss Prop 15x17 (3x15"x17"-t) Ur (sx)
21
6G5-45972-02-00
Ss Prop 13-3/4x21 (3x13-3/4"x21"-m) Ur (sx)
21
6G5-45978-03-00
Ss Prop 13-3/4x17 (3x13-3/4"x17"-m2) Ur (sx)
21
6G5-45974-03-00
Ss Prop 13-3/4x19 (3x13-3/4"x19"-m2) Ur (sx)
21
61A-45972-00-00
Ss Prop 14-1/2x21 (3x14-1/2"x21"-t) Ur (sx)
21
6G5-45970-02-00
Ss Prop 15-1/4x15 (3x15-1/4"x15"-m) Ur (sx)
