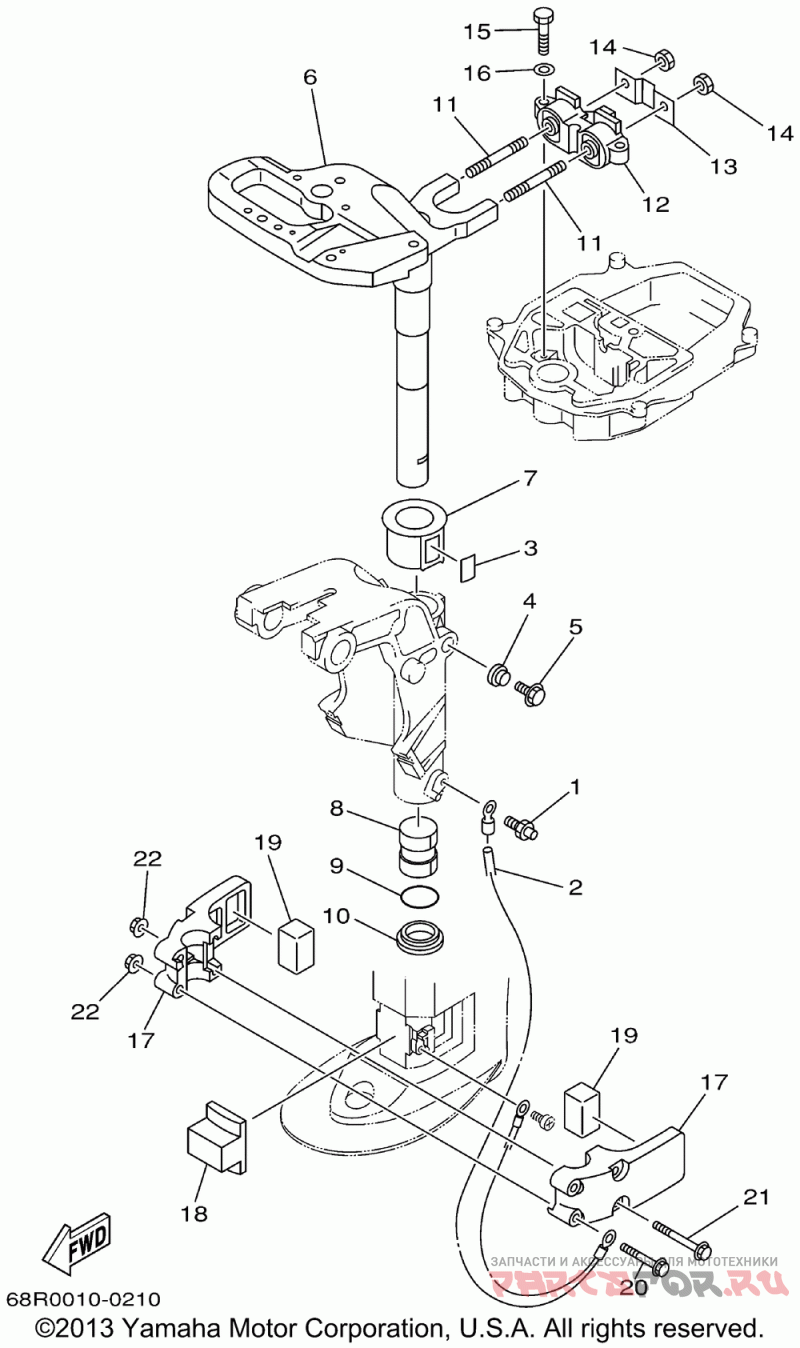

Крепление 2

Yamaha F6MLHA/F8MSHA/F8MLHA/F6MSHA

Yamaha
#oem кодцена
1
93700-06M03-00
Nipple, Grease (mh)
2
68T-82127-00-00
Wire, Lead 2 (mh)
3
63V-42528-00-00
Piece, Friction (mh)
4
689-43373-01-00
Seal (mh)
5
90105-06M07-00
Bolt, Washer Based (mh)
6
60R-G2511-11-4D
Bracket, Steering Ur L(mh)
6
60R-G2511-11-4D
Bracket, Steering Ur L(mh)
6
60R-G2511-00-4D
Bracket, Steering Ur S(mh)
6
60R-G2511-00-4D
Bracket, Steering Ur S(mh)
7
63V-42537-00-00
Bushing, Pivot Shaf (mh)
7
63V-42537-00-00
Bushing, Pivot Shaf (mh)
8
90386-30048-00
Bush, Spec'l Nylon (mh)
8
90386-30048-00
Bush, Spec'l Nylon (mh)
9
93210-29M94-00
O-ring (mh)
9
93210-29M94-00
O-ring (mh)
10
90386-30M60-00
Bush, Spec'l Nylon (mh)
10
90386-30M60-00
Bush, Spec'l Nylon (mh)
11
90116-08M54-00
Bolt, Stud (mh)
12
68T-44517-00-00
Mount Rubber (mh)
12
68T-44517-00-00
Mount Rubber (mh)
13
68T-44526-00-00
Plate (mh)
13
68T-44526-00-00
Plate (mh)
14
99780-08600-00
Nut, Hex. (mh)
14
99780-08600-00
Nut, Hex. (mh)
15
90101-06M27-00
Bolt (mh)
15
90101-06M27-00
Bolt (mh)
16
92990-06600-00
Washer (mh) (5 Per Pack)
17
68T-44551-00-4D
Housing, Lower Mount (mh)
17
68T-44551-00-4D
Housing, Lower Mount (mh)
18
60R-G4557-00-00
Mount Damper, Lowe (mh)
18
60R-G4557-00-00
Mount Damper, Lowe (mh)
19
682-44555-00-00
Mt.rubber Lwr.side (mh)
19
682-44555-00-00
Mt.rubber Lwr.side (mh)
20
90119-06012-00
Bolt, With Washer (mh)
20
90119-06012-00
Bolt, With Washer (mh)
21
90119-06013-00
Bolt, With Washer (mh)
21
90119-06013-00
Bolt, With Washer (mh)
22
90179-06M28-00
Nut (mh)
22
90179-06M28-00
Nut (mh)
