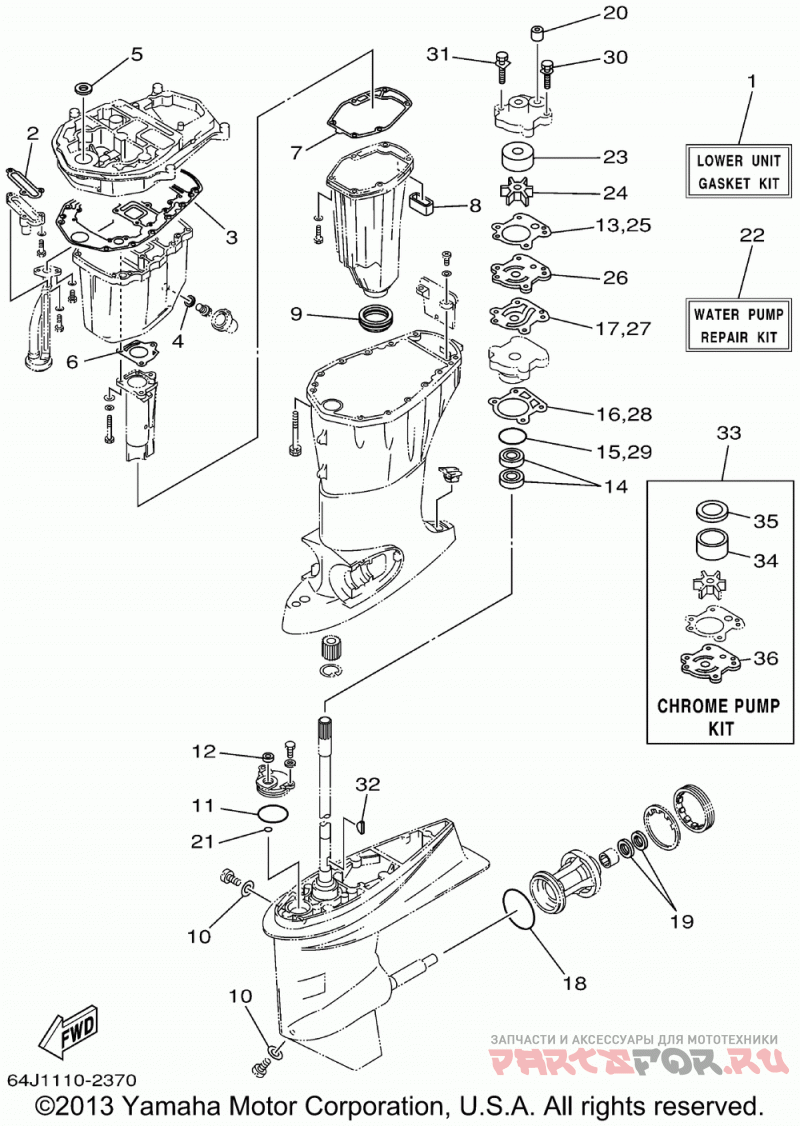

Repair kit 4 t50tlra

Yamaha F50TLRA/T50TLRA/F50TJRA

Yamaha
#oem кодцена
1
64J-W0001-22-00
Lower Unit Gasket Ki T50 (t50)
2
62Y-13475-00-00
Gasket (t50)
3
69W-15312-00-00
Gasket, Oil Pan (t50)
4
90430-14M09-00
Gasket (t50)
5
93103-18011-00
Oil Seal (t50)
6
67C-41133-00-00
Gasket, Exhaust Ma (t50)
7
6BG-41134-00-00
Gasket, Exhaust Mani (t50)
8
62Y-45127-00-00
Seal (t50)
9
663-45123-00-00
Gasket, Muffler (t50)
10
90430-08020-00
Gasket (t50) (10 Per Pack)
11
93210-49046-00
O-ring (t50)
12
93106-09014-00
Oil Seal, Dd-type (t50)
13
6H3-44315-A0-00
Gasket, Water Pump (t50)
14
93101-23070-00
Oil Seal, S-type (t50)
15
93210-46044-00
O-ring (t50) (5 Per Pack)
16
688-44316-A0-00
Gasket, Water Pump (t50)
17
6H3-44324-A0-00
Gasket, Cartridge (t50)
18
93210-86M39-00
O-ring (t50)
19
93101-25M03-00
Oil Seal, S-type (t50)
20
663-44366-00-00
Water Seal (t50)
21
93210-07540-00
O-ring (t50)
22
6H3-W0078-02-00
Water Pump Rep.kit T50 (t50)
23
663-44322-00-00
Insert Cartridge (t50)
24
6H3-44352-00-00
Impeller (t50)
25
6H3-44315-A0-00
Gasket, Water Pump (t50)
26
6H3-44323-00-00
Outer Plate, Cart. (t50)
27
6H3-44324-A0-00
Gasket, Cartridge (t50)
28
688-44316-A0-00
Gasket, Water Pump (t50)
29
93210-46044-00
O-ring (t50) (5 Per Pack)
30
90119-08M14-00
Bolt, With Washer (t50)
31
90119-08M33-00
Bolt, With Washer (t50)
32
90280-03M03-00
Key, Woodruff (t50)
33
6H3-W0078-0A-00
Chrome Pump Kit T50 (t50)
34
670-44322-01-00
Insert Cartridge (t50)
35
670-44321-00-00
Inner Plate Cart. (t50)
36
6H3-44323-40-00
Outer Plate Cart. (t50)
